Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
FTTH Indoor Drop Cable
Fiber Type :
Single-Mode G657A1/G652D/G657A2
Number Of Fiber :
2
Construction :
Self-supporting With FRP
Cable Diameter :
(2.0±0.2)X(5.0±0.2)mm
Outer Jacket Materail :
LSZH/PVC
Bending Radius :
10D/20D (mm)
Highlight :
G652D FTTH Indoor Drop Cable, G652D GJXH Indoor Drop Cable, G652D Single Mode gjxh cable
Description

Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core

Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core

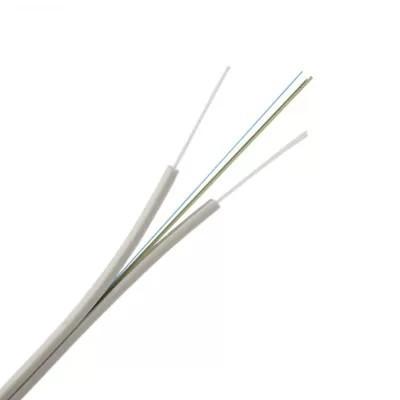

1 2 4 Core GJXH FTTH Indoor Drop Cable G657A G652D Figure 8 Drop Fiber Optic Cable

FTTH drop cable is constructed with one or two single- mode fiber (G.657A1 ). The cable
is protected by a dielectric strength member made of single-stranded steel wire and a LSZH outer jacket.
Designed for Indoor installation, the cable is well suited for connections between the dome closure and
small dwelling unit/warehouse and independent villas.
Features
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property;
2. Two parallel steel wire strength members ensure good performance of crush resistance
to protect the fiber;
3. Simple structure, light weight and high practicability;
4. Novel flute design, easily strip and splice, simplify the installation and
maintenance;
5. Low smoke, zero halogen and flame retardant sheath.
Application
1. Ideal use for FTTH applications
2. Horizontal cabling

Structure

Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 4.0*2.0
Weight Kg/km Approx.17.7
Sheath color Black
Sheath material LSZH
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70

Test Datasheet

Category Description Specifications
G.657A1
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
@1383±3nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB

Geometric

Specifications

 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm

Mechanical

Specifications

 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
