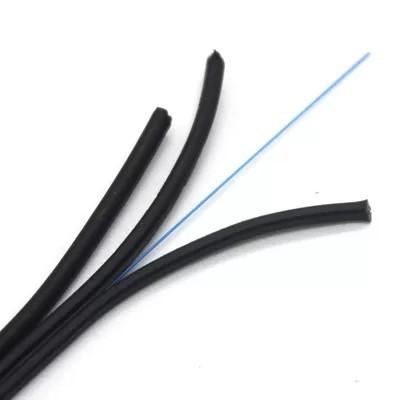

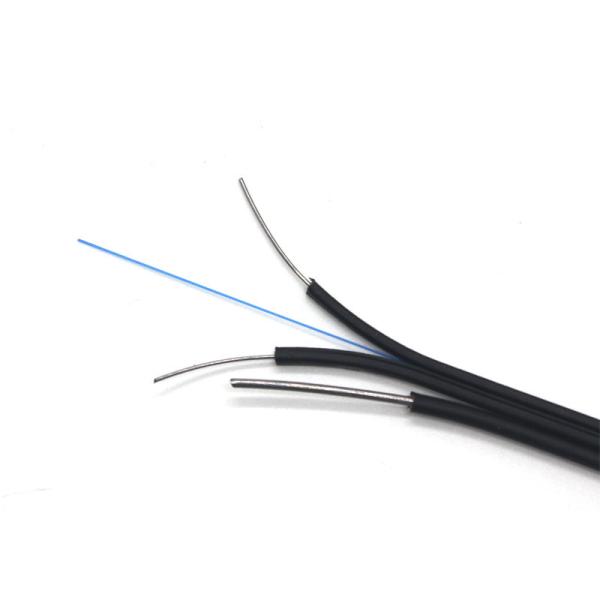

Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
FTTH Flat Drop Cable
Outdoor FTTH Drop Cable :
Single-Mode G657A1/G652D
Number Of Fiber :
1
Construction :
Self-supporting With FRP/Steel Messenger
Cable Diameter :
(2.0±0.2)X(5.0±0.2)mm
Outer Jacket Materail :
LSZH/PVC
Package :
Wooden Drum
Highlight :
G652D flat drop fiber cable, G657A Flat FTTH Drop Cable, G657A Steel FTTH Drop Cable
Description

Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire

Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire
Outdoor 1 2 4 Cores Single Mode G652D G657A Steel Wire Fiber Optic Flat FTTH Drop Cable
The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.
Features
1. Suitable for indoor or duct application
2. Easy jacket removal without special tools
3. Self-support structure
4. Excellent crush and impact resistance
5. Flame Retardant LSZH jacket is applied
6. ITU-T G.657 fiber is available
7. Available from 1 to 8-fiber counts
Application
1. Access network, fiber to the home
2. Used end users directly cabing
3. Outdoor cabling and distribute

Structure

Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 5.0*2.0
Weight Kg/km Approx.21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius Dynamic 30×Cable Diameter
Static 15×Cable Diameter
Operating Temperature ℃ -40 --- +70

Test Datasheet

Category Description Specifications
G.657A1
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
@1383±3nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius ,100turns) 1625nm ≤0.1 dB

Geometric

Specifications

 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm

Mechanical

Specifications

 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N
