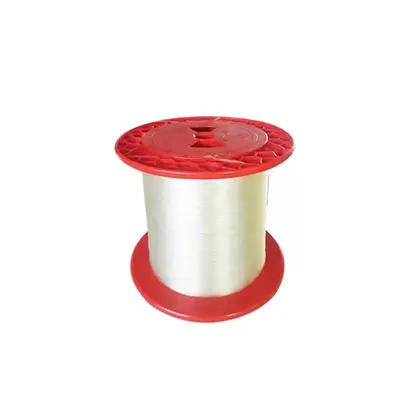

G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length
G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length
G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length
G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length
G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length
G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length
Specifications
Model Number :
G.652D
Brand Name :
Mingtong
MOQ :
252KM
Delivery Time :
8–15 working days
Payment Terms :
T/T,L/C
Length Option :
25.2km / 50.4km / Custom
Customization :
OEM, ODM, Custom Length, Custom Label
Supply Ability :
10,000 km per week
Product Name :
Bare Optical Fiber
Price :
USD14~ 16
Certification :
ISO
Place of Origin :
Guangdong, China
Packaging Details :
Packed in cartons, size: 51×61×31 cm
Mode :
Single Mode
Description

G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length

G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length

G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length

G.652D Single Mode Bare Optical Fiber 9/125/250μm ITU-T B1.3 Low Water Peak 25.2km 50.4km Per Spool Telecom Communication OEM Custom Length

Section 1 Product Overview


ITU-T G.652D Low Water Peak Single Mode Bare Optical Fiber (IEC B1.3)

G.652D is the most widely used standard non-dispersion-shifted single mode bare fiber in global telecom industry, featured with low water peak at 1383nm, covering full O/E/S/C/L transmission band. It is perfectly applied for long-haul trunk network, metro network, optical cable production, pigtail & patch cord manufacturing, FTTH access system. Stable optical geometry, uniform attenuation, reliable tensile screening guarantee long-term transmission stability.

Section 2 Core Advantages

✅ Low water peak design, ultra-low absorption loss @1383nm

✅ Strict 200kpsi proof test screening, high tensile reliability

✅ Precise geometric dimension, easy splicing & consistent fusion loss

✅ Low PMD performance, fit for high-speed DWDM/CWDM system

✅ Stable stripping force, convenient secondary processing

✅ RoHS & environmental UV acrylate coating

✅ Compatible with all G.652 series optical fiber

✅ Custom length, spool label & OEM packaging available

Section 3 Official Technical Specification Table

Item Standard Parameter Unit
Fiber Standard ITU-T G.652D / IEC B1.3 -
Cladding Diameter 125.0 ± 0.7 μm
Outer Coating Diameter 245 ± 10 μm
Cladding Non-Circularity ≤1.0 %
Core-Cladding Concentricity Error ≤0.5 μm
Coating-Cladding Concentricity Error ≤12 μm
Attenuation @1310nm ≤0.34 dB/km
Attenuation @1383nm (Low Water Peak) ≤0.34 dB/km
Attenuation @1550nm ≤0.20 dB/km
Reference Bend Radius 30 mm
Proof Test Tension 200 kpsi
Working Wavelength 1260 ~ 1625 nm
Operating Temperature -60 ~ +85 ℃

Section 4 Application Scope

  1. Long distance trunk communication & metropolitan area network
  2. Loose tube, tight buffer, ribbon optical cable production
  3. Optical pigtail, patch cord, PLC splitter, coupler component processing
  4. FTTH / FTTB / FTTP access distribution network
  5. CATV, intelligent building, security monitoring transmission system
  6. Telecom equipment, optical instrument testing fiber

Section 5 Packaging & Shipping Solution

  • Standard package: 25.2km / 50.4km per plastic export spool
  • Each reel wrapped with stretch film, packed in independent export carton
  • Bulk order: pallet packaging for sea transportation
  • Stock order lead time: 3-7 working days
  • Custom length bulk order lead time: 10-15 working days
  • Shipping option: DHL, FedEx, Air freight, Sea freight negotiable

Section 6 Product Certifications

ISO9001 Quality Management System, CE, RoHS, IEC60793 Standard Compliance, Factory Full Test Report (FTR) per spool

Section 7 Our Factory Advantage

  1. Direct factory supply, raw fiber from mainstream big brands (YOFC, Hengtong, etc.)
  2. 100% full-length optical & geometric test before delivery, test report attached
  3. Flexible MOQ, small trial order acceptable for new customers
  4. Custom spool printing, carton logo, arbitrary cutting length service
  5. Professional optical engineer team, technical support for cable solution

Section 8 FAQ

Q1: What is the difference between G.652D and G.657A1 fiber?

A: G.652D is universal standard single mode fiber for long haul & general cabling, standard bend radius 30mm; G.657A1 is bend-insensitive fiber with 10mm small bending radius for indoor narrow wiring.
Q2: Is G.652D compatible with old G.652 fiber?

A: Fully compatible, direct fusion splicing available with negligible splicing loss.
Q3: Can you provide customized cutting length?

A: Yes, we support any customized length with negotiable minimum order quantity.
Q4: Does each reel come with test certificate?

A: Sure, every spool is equipped with official factory attenuation & geometry inspection report.
