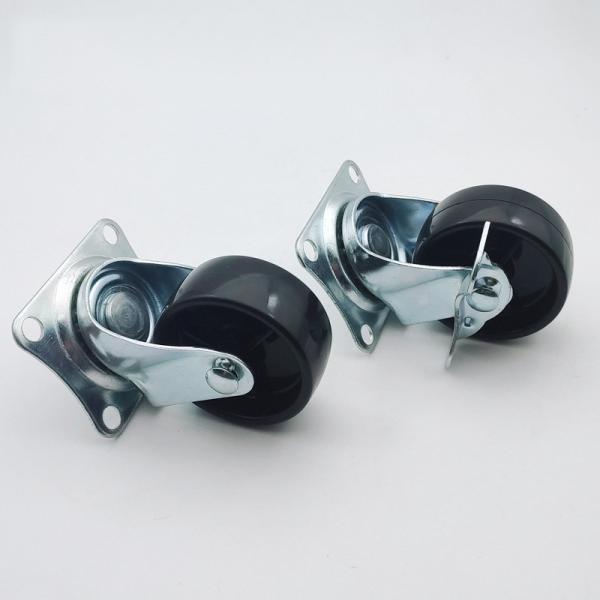

|  			 Product Name  			 |  			 			  Light Duty Nylon Casters Series  			 |  		|||
|  			 Application  			 |  			 			 Tool Cabinet, Machinery  			 |  		|||
|  			 Caster size  			 |  			 			 1INCH; 1.25INCH; 1.5INCH; 2INCH; 2.5INCH; 3INCH;  			 |  		|||
|  			 Caster kind  			 |  			 			 Rigid, Swivel, Brake, Screw  			 |  		|||
| Specification | 1inch | 1.25inch | 1.5INCH | 2INCH | 2.5INCH | 3INCH |
| Wheel Diameter(mm) | 25 | 30 | 40 | 50 | 65 | 75 |
| Wheel Width(mm) | 13 | 13 | 17 | 21 | 27 | 27 |
| Installation Height(mm) | 36 | 38 | 50 | 65 | 83 | 92 |
| Hole Distance(mm) | 29 | 29 | 36*15 | 45*25 | 55*28 | 55*28 |
| Load (kg) | 5 | 8 | 20 | 30 | 40 | 50 |
