MRT DXTS40F30T push‑type container loading machine is a self‑propelled hydraulic loading system for 20GP & 40HQ shipping containers. Max payload up to 30 ton. It realizes one‑stroke whole cargo push‑in loading, operated by single worker with wireless remote control. Greatly cuts labor cost and avoids cargo damage. CE & ISO9001 certified, customizable platform for steel parts, machinery and wind power equipment. Ideal for warehouse, factory and port logistics.

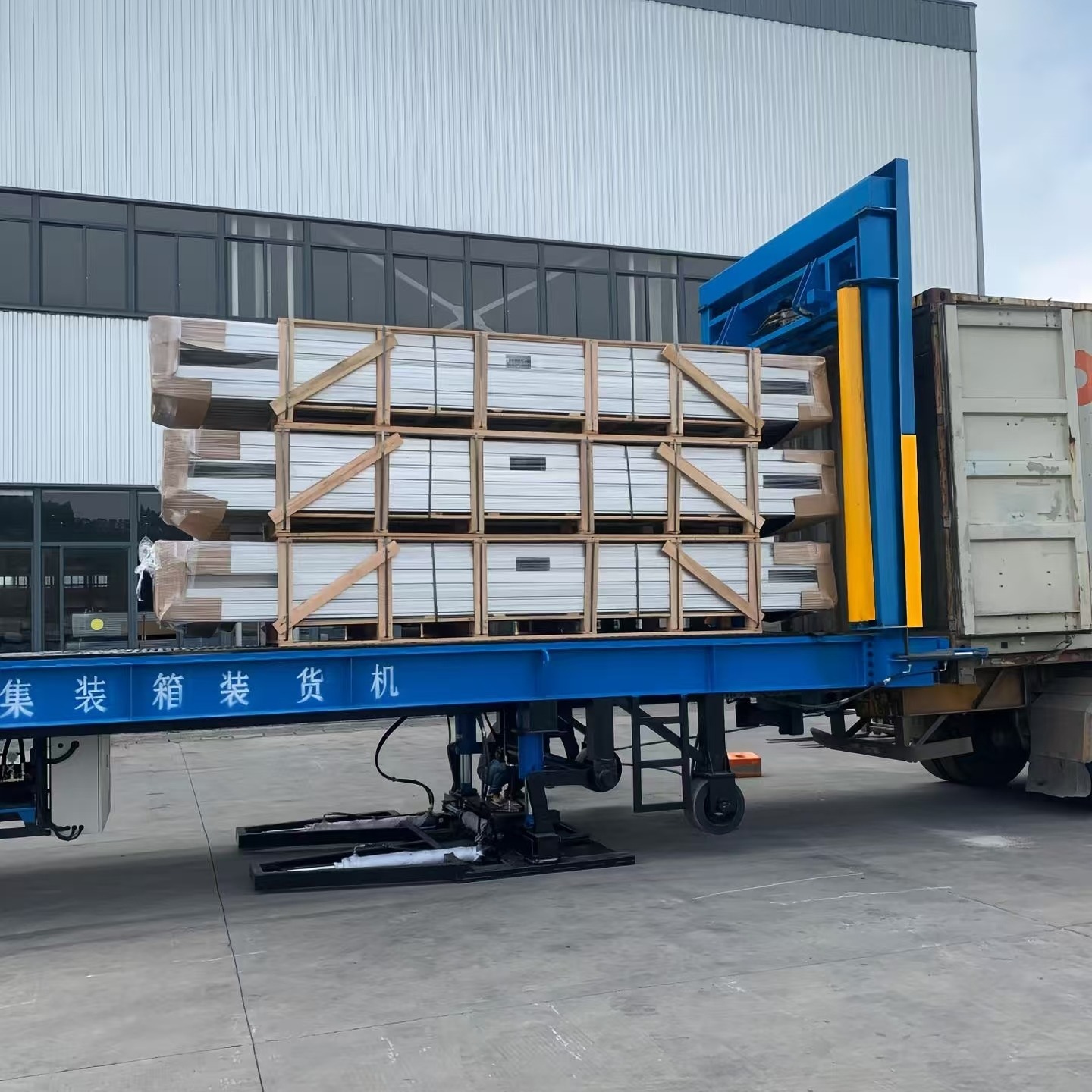

MRT DXTS40F30T Push‑Type Container Loading Machine

MRT push‑in container loader is a heavy‑duty automated loading solution specially designed for fast loading heavy goods into standard shipping containers. It solves the pain points of traditional container loading: time‑consuming manual stacking, high labor expense and high risk of cargo deformation.

Core Working Principle

This self‑propelled loading machine adopts hydraulic drive system. The whole palletized cargo can be pushed into the container in one stroke. After loading, the platform withdraws smoothly, leaving cargo inside the container. Only one operator is required to finish the whole loading procedure via wireless remote controller.

Key Features

1. High Loading Efficiency One‑stroke push loading for full pallet cargo. Dramatically shorten container loading cycle, improve warehouse turnover rate.
2. Single-Person Operation Wireless remote control design reduces manpower input. No large forklift team needed for container stuffing.
3. Reliable Safety Protection Equipped with anti-collision sensor, emergency stop button and IP54 electrical cabinet. Prevent collision accidents during operation.
4. Strong Compatibility & Customization Standard model fits 20GP and 40HQ containers. Flat platform as standard; roller platform, clamping mechanism and special size can be customized to match your cargo.
5. Wide Cargo Adaptability Suitable for steel structures, mechanical equipment, wind power accessories, heavy pallets and other bulk heavy cargo.
6. Hydraulic lifting & leveling function to match different container heights and ground conditions

Technical Specifications

Material :

Main frame adopts heavy-duty Q355B high-strength welded steel structure, thickened solid chassis beam, strong rigidity and anti-deformation.

Wheels: solid rubber heavy-load tires, wear-resistant & anti-impact.

Hydraulic cylinder: high alloy seamless steel tube, durable under long-time heavy pressure.

Control cabinet: IP54 metal steel enclosure, dustproof and splash-proof.

Color :

Standard color: Main body Deep Blue / Orange (Optional). Custom color available according to client’s brand requirement.

Main Components

1. Main Welded Frame Heavy Q355B high-strength steel welded frame, bearing the whole machine load, high rigidity and stable structure.
2. Hydraulic Power Unit & Cylinders Includes hydraulic station, lifting cylinders, pushing cylinders, hydraulic oil pipeline; provides power for lifting, leveling and pushing movement.
3. Self-propelled Chassis & Solid Rubber Wheels Self-driving travelling mechanism, heavy-duty solid rubber tires, good wear resistance for workshop & yard ground.
4. Pushing Platform & Pushing Beam Carry cargo pallet, push goods integrally into container; platform type can be customized (flat /roller/ U-groove).
5. Electrical Control Cabinet & Operating System IP54 protection grade, equipped with wireless remote controller + joystick, easy single-person operation.
6. Safety Protection Assembly Emergency stop button, overload protection, limit sensors, audio & visual alarm device.
7. Hydraulic Support Legs Lock the machine during loading operation, prevent tilt, ensure working stability.

Application Scenarios

Manufacturing factory, logistics warehouse, container terminal, cross-border export enterprises, wind power industry, steel processing plant.

Our Advantages

All MRT heavy machinery pass CE and ISO9001 certification. We provide one-stop service including design, manufacturing, installation guidance and after-sales support.

Customized solution is available according to your site layout and cargo condition.

Package & Shipment

The machine will be packed in steel frame or container shipment. Professional loading supervision is available.

We support FOB, CIF, DAP and other international trade terms.
