Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
Specifications
Supply Ability :
20Sets/Month
Rated Load :
5‑50t Customizable
Model Number :
KPW
Wheel Material :
Polyurethane Solid Wear‑resistant Wheel
Control Mode :
Wireless Remote Control & Hand Pendant
MOQ :
1
Delivery Time :
25-50 Woiking Days
Driving Type :
2‑wheel Drive / 4‑wheel Drive Optional
Payment Terms :
L/C, T/T, D/P
Platform Size :
Customized Dimension
Steering Function :
360° In‑situ Zero‑radius Rotation
Price :
USD 8500-32000/Set
Power Source :
Lead‑acid battery / Lithium battery optional
Continuous Working Time :
8‑12 Hours
Brand Name :
MRT
Brake System :
Electromagnetic Power‑off Brake
Certification :
CE
Packaging Details :
Large-sized double-layer PVC film packaging, small-sized non-sterilization wooden box packaging
Place of Origin :
China
Description

Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying

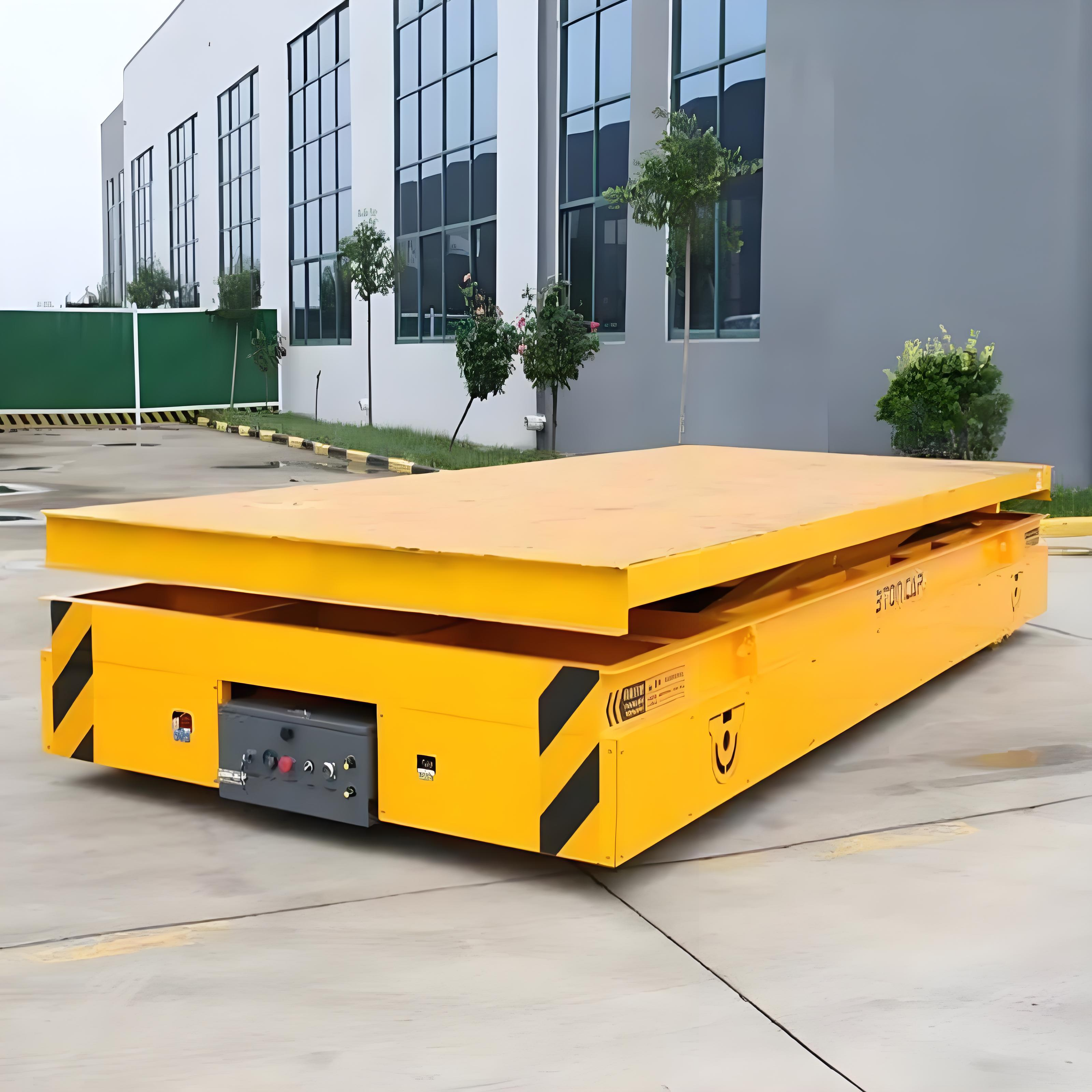

Trackless platform vehicle

The trackless platform vehicle is a flexible heavy‑duty handling equipment for industrial workshops and warehouses. Without rail laying requirement, it runs on solid rubber wheels and supports omnidirectional movement including 360‑degree in‑situ rotation.It comes with a stable hydraulic lifting system for safe lifting and transfer of heavy workpieces. Featuring compact structure, simple operation and low maintenance cost, the equipment can work continuously for long hours. It is widely used in machinery processing, mold transportation and logistics storage to improve material handling efficiency.

Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying

product superiority
  • High‑strength carbon steel welded body, strong load‑bearing capacity
  • Solid PU tires, will not scratch epoxy and cement ground
  • Omnidirectional movement, 360‑degree in‑situ rotation and side‑shift, adapt to narrow workshops
  • Dual operation of wireless remote control and on‑board joystick, easy to operate
  • Complete safety configuration: emergency stop, sound‑light alarm, infrared obstacle avoidance
  • Lithium battery power supply, low noise and zero pollution, suitable for indoor and outdoor use
  • Customizable load capacity and platform size to meet different production demands

main technical parameters

Parameter Specification
Model BWP series, support non‑standard customization
Rated Load Capacity 5‑50t, max 200t
Platform Dimension Customized Length × Width
Platform Height 500‑900mm
Ground Clearance 50‑75mm
Running Speed 0‑25m/min no‑load, 0‑20m/min full‑load, stepless speed regulation
Steering Mode Omnidirectional in‑situ rotation, differential steering, side movement
Minimum Turning Radius 0 (omnidirectional model)
Max Climbing Gradient 3%‑5%
Motor Power 1‑15KW
Power Supply Battery powered
Battery Type Maintenance‑free lead‑acid battery, lithium battery optional
Battery Voltage 24V / 48V / 72V
Wheel Material Polyurethane wheel, solid rubber wheel
Wheel Quantity 4‑8 pieces
Control Mode Wireless remote control & manual pendant
Braking Mode Electromagnetic brake
Chassis Structure Integrated steel welded structure
Safety Device Emergency stop button, anti‑collision sensor, warning light, alarm horn
Continuous Working Time 4‑8 hours
Certification CE, ISO
Customization Support non‑standard customization for size and lifting function

application scenarios
  • Heavy workpiece transportation inside manufacturing workshops
  • Mold moving for stamping and injection‑molding production areas
  • Heavy steel component handling in steel processing facilities
  • High‑weight material transfer for foundry production sites
  • Cross‑zone goods delivery in warehouses and material yards
  • Production‑run material circulation in assembly workshops

Why choose us

  1. Professional manufacturer, all equipment can be customized according to your working conditions
  2. Strict quality inspection before delivery, support CE certification
  3. Long warranty period and overseas technical guidance service
  4. Flexible trade terms: EXW, FOB, CIF, DDP available
  5. Support OEM & ODM solution design
Contact us and send your requirements of load, size and working environment, we will provide the most suitable transportation solution and formal quotation for you.
