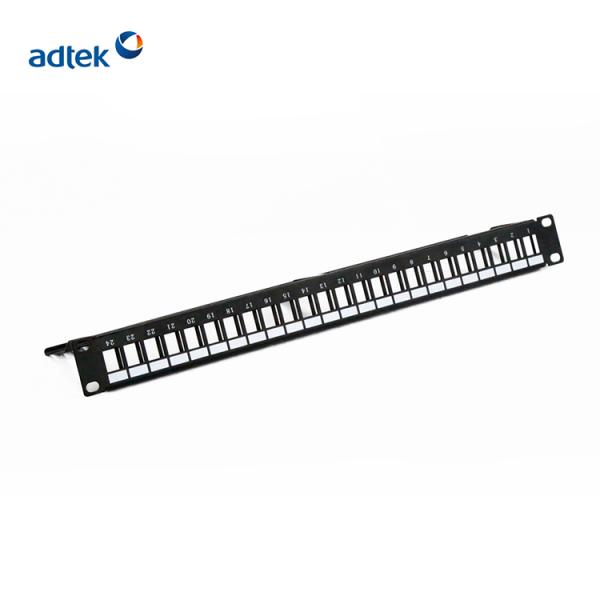

RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
RJ45 Cat6 UTP 24 Port Patch Panel Blank 25 Year Warranty
Specifications
Brand Name :
ADTEK/OEM
Model Number :
Guangdong, China
Certification :
ISO9001/CE/ROHS/UL
Place of Origin :
Guangdong, China
MOQ :
10 Piece
Price :
$3.50 - $30.00/ Piece
Payment Terms :
T/T
Supply Ability :
20000 Piece/Pieces per Month
Delivery Time :
3-14days
Packaging Details :
Per individual Inner 1pc small box and 20pc Outer cartons(51*30*42cm carton size)
IDC :
Krone/110/Dual IDC
Warranty :
25 Year
Port :
24 ports
Name :
Utp Cat6 24 Port Patch Panel
Description

RJ45 UTP 24 Ports blank copper Patch Panel Approval

No.of Port 24/48 Ports Category

Blank/Cat5E7Cat6/

Cat6A
Rack Units 0.5U/1U/2U Color Black
Termination Coupler Wiring Scheme T568A/T568B
Type of Patch Panel Flat/Blank Dimensions (In.) Standard
Operating Temperature Range -10°Cto60°C Certificate UL CE FCC RoHS

product description
Product name: Category 6/ 6A/ 5E network unshielded distribution frame
Product type: 24-port patch panel, unshielded
Specifications: 19 "installation size, 24 ports,
Material: made of high-quality cold-rolled steel plate, phosphor bronze and PC injection molding
Color: black
Main technical parameters
*IDC: Phosphor bronze, silver plated (20~50uiLZh), applicable cable is 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), life is not less than 250 times.
*8-line pin: phosphor bronze, gold-plated (20~50uiLZh), the plug socket can be plugged and unplugged repeatedly for not less than 750 times
*Flame retardancy: It is made of PPO+PC injection molding, which meets international standards
*Contact resistance: no more than 2.5mΩ under normal atmospheric pressure (excluding bulk resistance)
*Insulation resistance: not less than 1000MΩ under normal atmospheric pressure
* Dielectric strength: DC 1000V (AC, 700V) without breakdown and arcing within 1 minute
*Standard: Designed and manufactured according to the international standard ISO/IEC11801;
