12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant
12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant
Specifications
Brand Name :
OEM
Model Number :
ORCC008
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
3-7 work days
Packaging Details :
1KM / 2KM or other contracted length per roll
Fiber Type :
G652/G657/G655/A1a/A1b
Cable Material :
LSZH/PE
Fiber Count :
2/4/8/12/24 Fiber
Operation Temperature :
-20℃-+75℃
Jacket / Buffer Color :
meets the requirement of relevant standards
Cable Dimension :
9.0mm/9.4mm/10.2mm/10.7mm/12.7mm
Description
12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant
The dual-jacketed multi-fiber FTTA outdoor fiber optic cable, compared with single-jacketed cable has better mechanical characteristics. It is suitable for the long distance fiber optic cable assemblies, such as FTTA waterproof patch cord and CPRI patch cord.
Features
◆ High UV resistance of the cable sheaths
◆ Excellent water-proof performance with water-blocking aramid yarn and tape
◆ Low attenuation
◆ Very good temperature performance
◆ Small bending radius
◆ Meet various requirements of market and clients
Application

◆ Outdoor and harsh environments applications
◆ Remote radio head
◆ Cell site
◆ Distributed antenna system
◆ Distribution system cable
◆ Used in wireless base station(BS) horizontal and vertical cabling

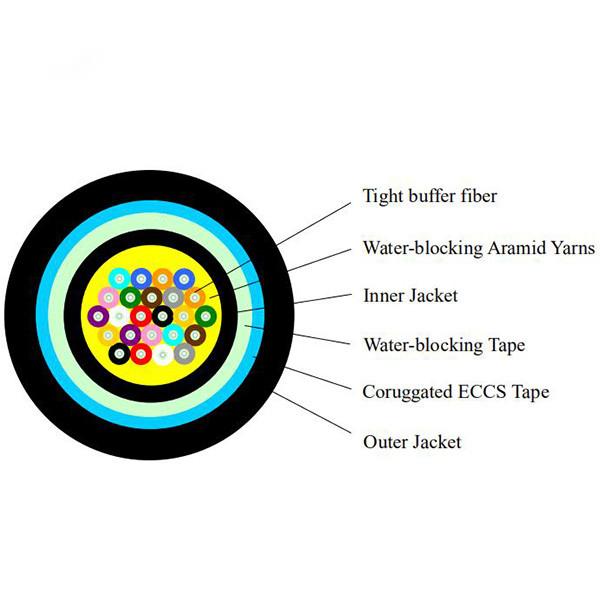

Cable Parameters
Items Specifications
Fiber Type G652D/G657A1/G657A2
Fiber Count 2 4 8 12 24
Buffer Dimension 0.9mm±0.05mm
Material LSZH or Nylon 12
Strength Member Water-blocking Aramid Yarns
Inner Jacket Dimension 4.8mm±0.2mm 5.2mm±0.2mm 6.0mm±0.2mm 6.5mmmm±0.2mm 8.5mm±0.2mm
Material LSZH (UV retardant)
Color Black
Outer Jacket Dimension 9.0mm±0.3mm 9.4mm±0.3mm 10.2mm±0.3mm 10.7mm±0.3mm 12.7mm±0.3mm
Material PE or LSZH (UV retardant)
Color Black

Options
◆ Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
◆ Jacket material: environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), environmental thermoplastic polyurethane(TPU), or other contracted material;
◆ Jacket color: (including color of fiber) meets the requirement of relevant standard, or other contracted color;
◆ Cable dimension: the nominal cable dimension, or other contracted dimension;

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
12.7mm dual jacket FTTA outdoor cable , 24F G652D PE material black color UV retardant
FAQ
1. Q: What's your terms of payment?
A: T/T 30% in advance, and rest 70% before delivery. When we reach deeper cooperation, we could support a payment period after authentication.
2. Q: What's your average lead time?
A: Our lead time is controlled within 2-5 working days for the regular products.
3. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
