Specifications
Brand Name :
SONO
Model Number :
SN80
Certification :
ISO, CE, SGS
Place of Origin :
Guangdong, China
MOQ :
20 Square Meters
Price :
US$110 Per Square Meter
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2000 Square Meters Per Month
Delivery Time :
7-15 Days
Packaging Details :
Exporting Carton
Product Name :
Painting Partitions Wall
General Style :
Painting Operable Wall
Features :
Elegant Appearance
Design :
Customized Painting
Apply For :
Restaurant
Available Size :
Customized
Description

Painting Operable Wall Partitions Room Divider Movable Partitions

Product Description

Movable walls (also known as operable walls, demountable walls or sliding walls) are typically floor to ceiling partitions or panels that can be adjusted to change spatial arrangements.
The purpose of movable walls is generally to transform a single space into multiple smaller spaces with minimal effort. They can divide a school hall into different multi-purpose areas for simultaneous physical activities, or split a large conference facility into smaller seminar rooms. When they are not needed, the partitions are folded, moved or concealed in a space efficient manner.

Series SN65 SN80 SN100
Panel suspension Top hung only Top hung only Top hung only
Lifting point Single or twin point Single or twin point Twin point
Thickness 65mm 80/85mm 100mm
Height Up to 4 meters Up to 5 meters Up to 12 meters
Main keel Aluminum alloy,
wooden keel.
Aluminum alloy,
wooden keel.
Aluminum alloy,
wooden keel.
Base board MDF, plywood,
MgO board
MDF, plywood,
MgO board
MDF, plywood,
MgO board
Frame Aluminum frame Aluminum frame Aluminum frame
Board thickness 9mm 9/12mm 12mm

Product Features

1. Sono movable wall product range includes acoustic moveable walls up to 12m high with sound reductions up to Rw 55 dB with a panel thickness of just 100mm, previously only possible with thicker panels weighing much more. 30 minute fire ratings are also possible.
2. The finish panels are manufactured separately to the frame, which means that the panel linings are easy to change if one is damaged or scuffed, or the interior design of a room changes later on and also assists with the panel installation where the frames and face boards are delivered separately reducing the manual handling risk.
3. We provide you with a wide choice of finish materials and parking arrangements. It's high level of flexibility, even in the case of complicated room proportions where sloping ceilings or circular spaces have to be accommodated, ensures that you have all the benefits of optimum functionality.

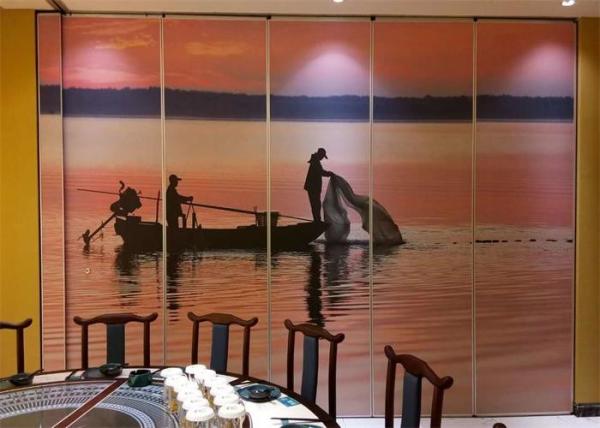

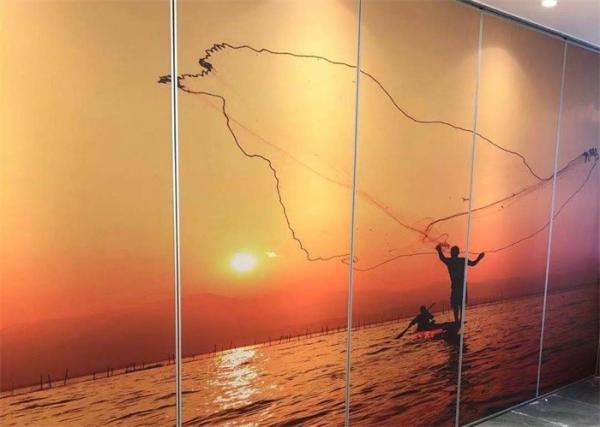

Painting Operable Wall Partitions Floor To Ceiling Room Divider Wall

Removable partition seal system

1. Each of the activties of the left and right sides of the border were equipped with concave/ oonvex frame seal device.
The device usesmulti-layer contact stip and suction magnetic stripe, can be a good mutual atiracton, so that the two pieces of acivies at the junctionof the sealing treatment to achieve the best results.

2. Activities cut off through the patented technology, the use of PVC rubber pieces filed with two pieces of partition between the pressureofall the gap between the bar can not only streitch up and down freely, but also make the sound can not penetrate, a good solution tothis old problem. This system is also unique in the domestic similar products.

Product Features

1. Sono movable wall product range includes acoustic moveable walls up to 12m high with sound reductions up to Rw 55 dB with a panel thickness of just 100mm, previously only possible with thicker panels weighing much more. 30 minute fire ratings are also possible.
2. The finish panels are manufactured separately to the frame, which means that the panel linings are easy to change if one is damaged or scuffed, or the interior design of a room changes later on and also assists with the panel installation where the frames and face boards are delivered separately reducing the manual handling risk.
3. We provide you with a wide choice of finish materials and parking arrangements. It's high level of flexibility, even in the case of complicated room proportions where sloping ceilings or circular spaces have to be accommodated, ensures that you have all the benefits of optimum functionality.
