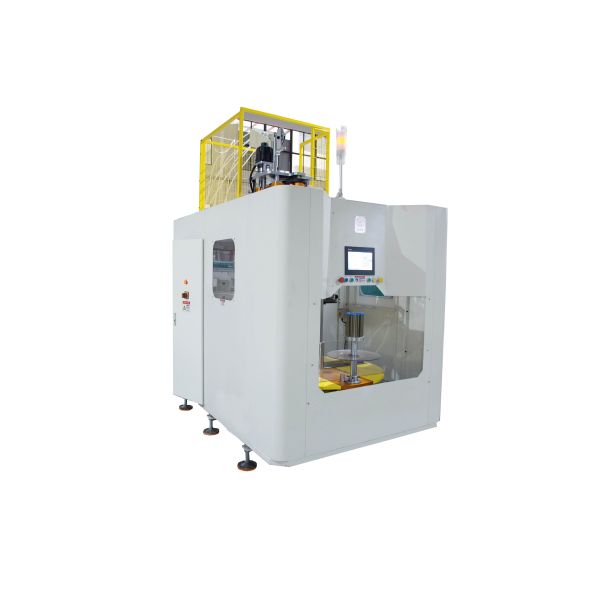

Full-Automatic Stator Winding Machine for 2 Poles Stator with Max Stack Height ≤320mm and ISO9001:2008 Certified
Full-Automatic Stator Winding Machine for 2 Poles Stator with Max Stack Height ≤320mm and ISO9001:2008 Certified
Specifications
Brand Name :
SMT
Model Number :
SMT-RL121
Certification :
ISO9001/SGS/CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1pcs/ 50-60 days
Delivery Time :
50-60 days for 1set
Packaging Details :
Wooden Case Suitable for Sea Transportation.
Name :
Automatic Coil Winding Machine for AC Motor Induction Motor
Condition :
New
Warranty :
12 months
Winding Head :
1pcs
Inner diameter range :
100-200mm
Outer diameter range :
≤320mm
Stack thickness range :
80-300mm
Equipment dimensions :
3271mm in length, 1626mm in width, and 3282mm in height
Equipment weight :
Approximately 3.5 ton
Description
Automatic Coil Winding Machine For AC Motor Induction Motor

This machine is primarily designed for winding 2-pole stators, completing one stator per cycle to significantly enhance production efficiency.It features automatic loading and mold removal to reduce labor intensity.The winding process supports tapping (up to 5 times) and clamping functions, with adjustable fly fork lever stroke and pivot angle. The frame is constructed from total aluminum alloy with anodized oxidation treatment and features imported acrylic protection.Electrical control is managed by PLC, display, and frequency converter for safe and reliable operation.

Main Technical Data
Parameter Value
Model RL121
Inner diameter range 100-200mm
Outer diameter range ≤320mm
Stack thickness range 80-300mm
Equipment dimensions 3271mm in length, 1626mm in width, and 3282mm in height
Equipment weight Approximately 3.5 ton
Power Supply 380V/50/60Hz, 8Kw
Minimum order quantity 1 Set
Certified ISO9001:2008; SGS,CE
OEM/ODM Services

Leveraging experienced engineers, skilled professionals, advanced equipment, and strict manufacturing process controls, we provide optimized solutions for electric motor manufacturing. Our machines are exported worldwide to countries including USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, and Iran, earning recognition for durability, reliability, competitive pricing, and excellent after-sales service.

Production Line Solutions

Full-Automatic Stator Winding Machine for 2 Poles Stator with Max Stack Height ≤320mm and ISO9001:2008 Certified

SMT offers comprehensive technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing. Our services include motor cost evaluation, manufacturing know-how, staff training, and complete project implementation. Our solutions serve various applications including new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. We specialize in stator and rotor core assembly, slot insulation, automated winding, inserting, fusing, and resin impregnation technologies for diverse stator sizes and slot configurations.
