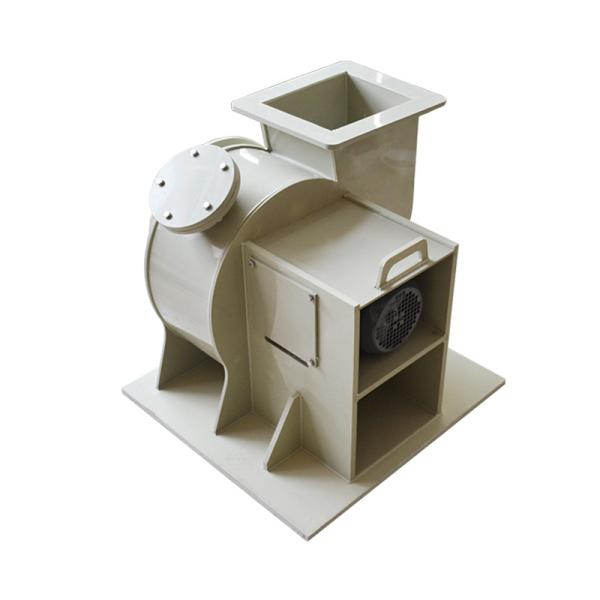

Powerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/H
Powerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/H
Powerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/H
Powerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/H
Powerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/H
Powerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/H
Specifications
Brand Name :
Xicheng
Model Number :
5#
Place of Origin :
China
MOQ :
1PCS
Price :
$360-1320/PCS
Delivery Time :
7-15 work days
Payment Terms :
L/C,T/T
Supply Ability :
300PCS 20-30work days
Power :
1.5~7.5Kw
Air volume :
2400~11000m³/H
Outer diameter of air inlet :
415~700mm
Outer diameter of air outlet :
415~700mm
Wind Presssure :
1000~1500Pa
Speed :
1450~3200r/min
Impeller material :
PP/FRP
Type :
Permanent Magnet Variable Frequency Centrifugal Fan
Description

Powerful Centrifugal Suction Fan Inner Diameter 315-600mm Wind Pressure 1000-1500Pa

Product Description:

Centrifugal Suction Fans are permanent magnet centrifugal suction machines. The air volume of the fanning can range from 2400 to 11000m³/H, and the speed from 1450 to 3200r/min. The outer diameter of the air inlet can range from 415 to 700mm, while the inner diameter of the air outlet can range from 315 to 600mm. The outer diameter of the air outlet can range from 415 to 700mm.

Xicheng permanent magnet fan can limit the power limit of the motor through the driver, so that the motor always maintains a high efficiency working range. In the case of low load rate, the efficiency and power factor reduction of permanent magnet motor is very small, and it can still maintain high efficiency within the larger load variation range, and the efficiency range is wider. Therefore, compared with the asynchronous motor, the permanent magnet motor can have a better match, the same working condition, the same speed, the permanent magnet motor can choose to be 1 level smaller than the asynchronous motor, and the efficiency is higher.

For example, under the same working condition, the useful work done by the 15KW permanent magnet motor is basically the same as that done by the 22KW three-phase asynchronous motor, and even more efficient.

The fans are reliable and easy to maintain, and offer a simple and efficient solution for any cooling needs.

Technical Parameters:

Parameters Values
Impeller material PP/FRP
Wind Pressure 1000~1500Pa
Outer diameter of air outlet 415~700mm
Outer diameter of air inlet 415~700mm
Inner diameter of air outlet 315~600mm
Power 1.5~7.5Kw
Air volume 2400~11000m³/H
Type Permanent Magnet Variable Frequency Centrifugal Fan
Speed 1450~3200r/min
Inner diameter of air inlet 315~600mm

Applications:

Xicheng 5# Permanent Magnet Centrifugal Suctioning Fan is the perfect solution for controlling and adjusting the air flow in many various applications and scenarios. Its features include a Variable Frequency design, a FRP Impeller and an Outer Diameter of Air Inlet and Outlet ranging from 415 to 700mm. The Wind Pressure is adjustable from 1000 to 1500Pa. With such capabilities, it is suitable for many industrial, commercial and residential uses. The purchase of each unit is subject to a minimum order quantity of 1PCS, with the price ranging from $360 to 1320/PCS. Payment terms may be made via L/C or T/T and delivery time is 7-15 work days upon ordering. Supply Ability is up to 300PCS within 20-30 work days.

Support and Services:

Technical Support and Service for Centrifugal Suction Fan

At Xicheng, we provide comprehensive technical support and service for Centrifugal Suction Fans. Our team of experienced professionals can provide you with the best solutions for your Centrifugal Suction Fan needs.

Our team of experts can help you choose the right Centrifugal Suction Fan for your application and provide you with the best advice on how to maintain and use your Centrifugal Suction Fan.

For more information about our technical support and service for Centrifugal Suction Fans, please contact us at Xicheng.

Powerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/HPowerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/HPowerful Centrifugal Suction Fan Inner Wind Pressure 1000 - 1500Pa 11000m3/H

FAQ:

Q1: What is the Brand Name of this Centrifugal Suction Fan?
A1: The Brand Name of this Centrifugal Suction Fan is Xicheng.
Q2: What is the Model Number of this Centrifugal Suction Fan?
A2: The Model Number of this Centrifugal Suction Fan is 5#.
Q3: Where is this Centrifugal Suction Fan made?
A3: This Centrifugal Suction Fan is made in China.
Q4: What is the Minimum Order Quantity of this Centrifugal Suction Fan?
A4: The Minimum Order Quantity of this Centrifugal Suction Fan is 1PCS.
Q5: What is the Price of this Centrifugal Suction Fan?
A5: The Price of this Centrifugal Suction Fan is $360-1320/PCS.
