Specifications
Type :
Audio Conference System, Network Conference System, Video Conference System, Conference System
Function :
Presentation
Simultaneous Interpretation :
NO
Place of Origin :
Guangdong, China
Brand Name :
Boente
Model Number :
AML-17.3S
Product Name :
lcd monitor lift
Material :
aluminum alloy
Pitch Angle :
20 degree
Monitor :
21.5 inch FHD screen (16:9)
Microphone :
conference gooseneck microphone
Resolution HD :
1920x1080
Interface :
H-DMI+RS232 I/O+USB+XRL
Color :
Silver / Black
Description
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table

Product Introduction:

Compared to the previous generation ultra-thin LCD screen lifter, it is more intelligent, aesthetically pleasing, and lightweight.
When holding a regular meeting, the LCD monitor can be hidden inside the meeting desktop, making the desktop flat and simple; When holding multimedia conferences, the LCD screen can be raised individually, in groups, or all according to different needs for displaying multimedia information, including conference content, information prompts, image information, etc. It is an important component of modern paperless technology.

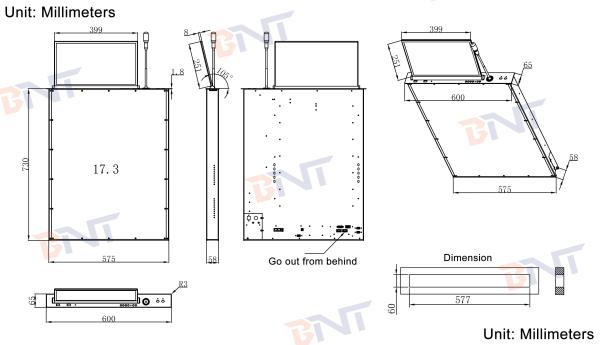

Product Technical Parameters
Product name
Ultra thin LCD display lifter
Screen size
17.3 inches
Panel material
High grade aluminum alloy
Monitor shell material
High grade aluminum alloy
Panel colors
brushed silver, brushed black, sandblasted silver
(other aluminum alloy material colors can be processed according to user
requirements)
Body shell material
High grade aluminum alloy (sandblasted black)
Control mode
Supports panel button control, RF remote control for unified control, RS485/RS232 centralized or grouped control
Adjustable range of display screen angle
0~15 degrees~30 degrees
Storage temperature
- 40℃~85℃
Working temperature
- 15℃~40℃
Power supply range
DC：12V 4A
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
1.The overall body of this product adopts a pure aluminum alloy structure. All materials used are extruded at high temperature using formed aluminum molds and then hardened for 24 hours. Then, the parts are generated through CNC precision machining. Surface treatment: By fine wire drawing and oxygen oxidation, an oxide protective layer is generated

2. DC Drive Motor: Equipped with advanced stepper motors, the factory strength can be adjusted, allowing for manual adjustment of the tilt angle of the LCD screen to achieve the best visual effect.
3.Transmission method: Adopting advanced chain transmission architecture to reduce the noise caused by gear interlocking and achieve better noise reduction effect. Two solid stainless steel guide columns are used on both sides of the lifting frame to ensure the smooth lifting and lowering of the LCD screen

.4.The flip door adopts an upward flipping conical structure, which makes the small gaps opaque and achieves a sealed visual sense. The transmission of the flip door adopts a trapezoidal groove attached to the two side plates, achieving a simple and elegant overall design.
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
Title goes here.

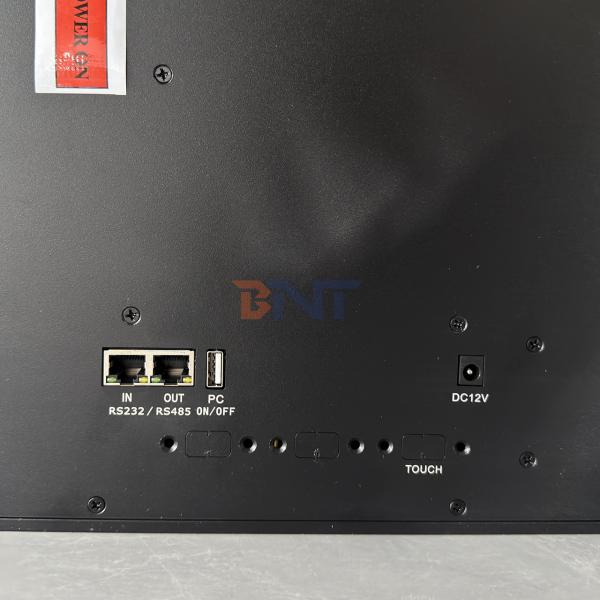

5. Panel with external computer host switch, USB interface, computer host switch shaped display light.
6. It can support high-definition dual HDMI input simultaneously, and the panel button comes with a signal switching function between the two HDMI channels (HDMI * 2 and HDMI * 1, VGA * 1 optional).
7. The panel control buttons can not only control the machine's rise, fall,tilt forward, and tilt backward normally, but also switch to adjust various parameters of the display, such as brightness, color,etc., by pressing the function switching button.
8. 16 seconds of rapid rise and fall, using advanced chain transmission architecture to reduce the noise caused by gear interlocking, making the noise reduction effect even better. 9. The display screen is made of glass to prevent dust and fingerprints. 10. Supports high-definition 1920 * 1080 resolution. 11. Adopting high-precision and high-sensitivity capacitive touch screen, supporting ten point touch. (Optional)
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
12. The microphone adopts advanced stepper motor force and moderate speed. When there is a foreign object above the microphone, it
will not damage the microphone.

13. The microphone is driven by a chain and paired with a linear slide rail to reduce transmission noise and achieve a silent transmission effect.

14. The microphone descent supports automatic centering of the microphone function to ensure that the microphone can be used normally next time.
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
Ultra-light design, all aluminum alloy (including the bottom box, including all the parts inside)

All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.

Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel)
The ultra-thin series LCD screen electric elevator is mainly used in various high-end conference halls, trading halls, advanced multimedia network systems, paperless conference systems, monitoring systems, query systems, high-end office spaces, etc. Widely used in various industries such as government, postal and telecommunications, transportation, aerospace, banking, railway, water conservancy, electricity, securities, flood control, petroleum, chemical, finance, schools, hospitals, and enterprises.
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table

We can also use this monitor lift device in schools.
Motorized Computer Monitor Lift Hidden Automatic Flip up Screen Lift Mechanism for Board Table

Product packaging style
We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.

Company Profile

Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.
→13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.
→Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products. →Product quality is recognized by AH, One element and become their partner.
