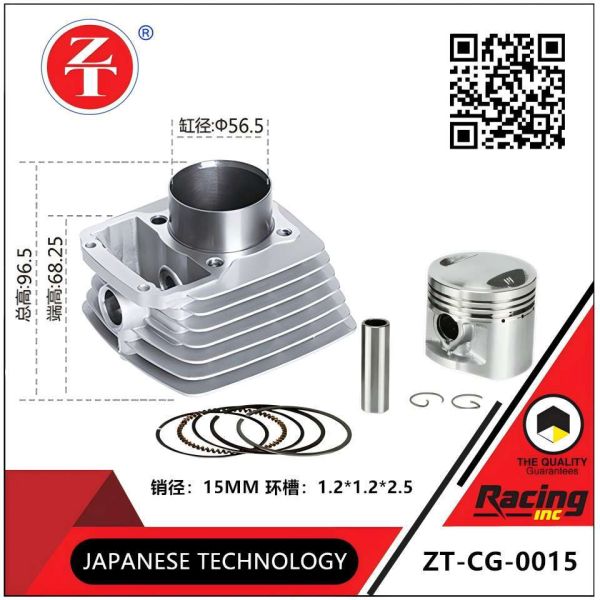

CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
Specifications
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
CG125 cylinder set
Bore / Stroke :
Cylinder bore 56.5mm, stroke approximately 49.5mm
Cylinder block dimensions :
Total height is approximately 96.5mm, installation surface height is approximately 68.25mm
piston pin :
Diameter 15mm, length 48–50mm
Piston ring groove :
The width of the air ring groove is about 1.25mm, and the width of the oil ring groove is about 2.1mm
Compression ratio :
Original factory approximately 9.0:1–9.5:1
Packaging type :
Iron box Coloured bag/coloured box Coloured bag/kraft paper box Bag
Warranty period :
Two years
Customised service :
Logo printing/customised packaging (leave contact details for more information)
Description

The CG125 cylinder set is the core assembly of a single-cylinder, four-stroke, air-cooled engine, used in 125cc commuter motorcycles. It consists of a cylinder body, piston, piston rings, piston pin, circlip, and upper and lower gaskets, responsible for completing the four-stroke cycle of intake, compression, power, and exhaust, serving as a key component for power output and efficiency. The three-ring piston design ensures cylinder sealing, reduces compression leakage and oil blow-by, and improves combustion efficiency. With proper maintenance, its lifespan can reach 20,000–30,000 kilometres, making it suitable for urban commuting and medium to short-distance riding.CG125 cylinder set, the core assembly of a single-cylinder four-stroke air-cooled engine
