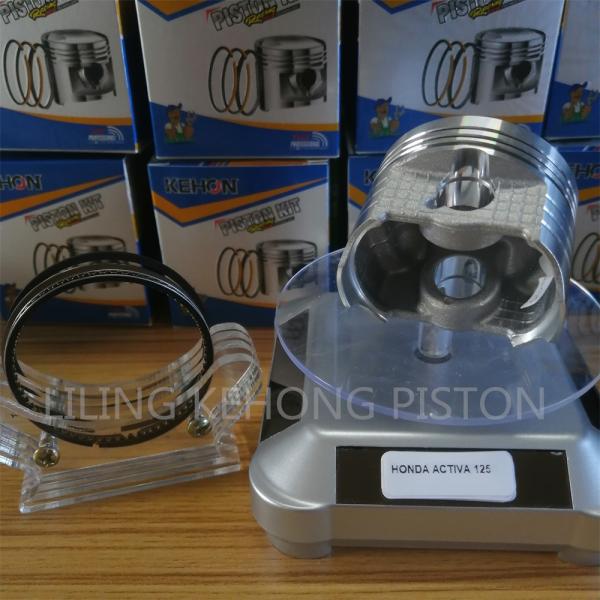

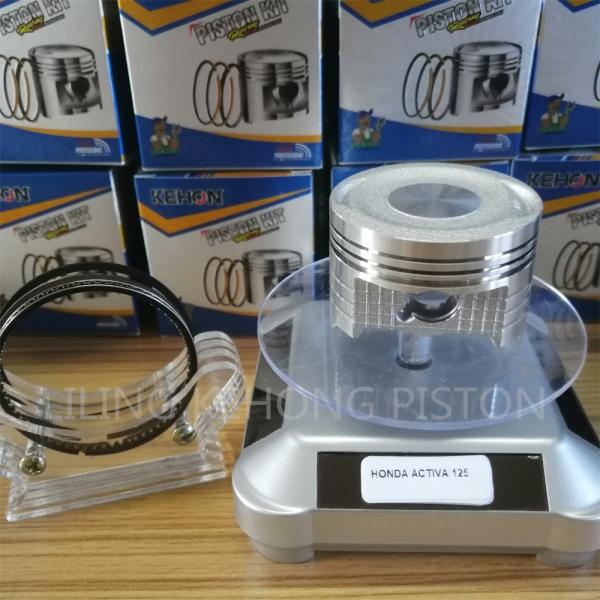

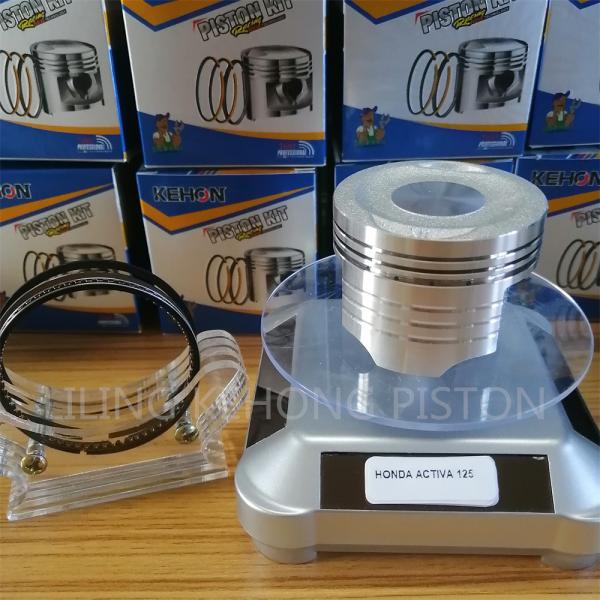

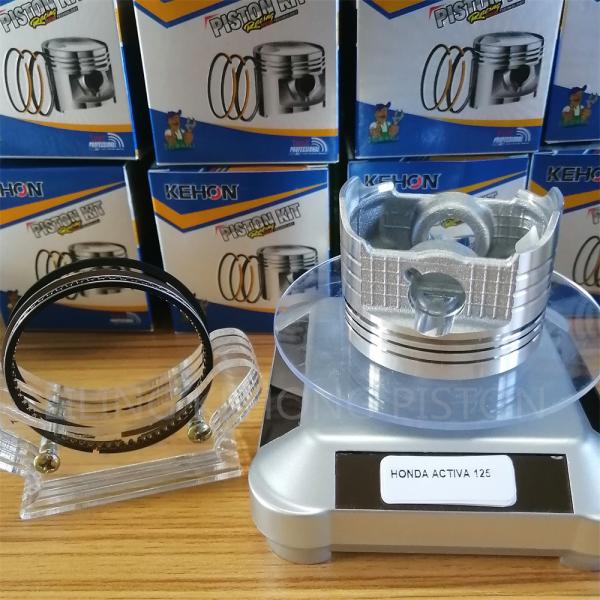

ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
Specifications
Model Number :
ACTIVA 125
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/P
Delivery Time :
30 work days
Packaging Details :
1,000,000 sets per month
Material :
Aluminum
Packing :
Lidon package
Quality :
A class
Color :
Silver
CYL DIA :
52.4mm
Pin Size :
13*33mm
Weight :
74g
PR DIA :
52.4*0.8*0.8*1.5mm
Description



52.4mm CLY DIA India Piston Rings Motor Engine Parts ACTIVA 125​

Specification

Brand Name
LIDON
Place of Origin
Guangzhou, China
Product nameMotorcycle ACTIVA 125 Piston Kit
QualityA class
MaterialAluminum Alloy
ColorAs picture show
ApplicationMotorcycle Engine System
weight
74g
PackingBoxes+ Carton
CYL DIA52.4mm
Pin Size13*33mm
ShipmentSea, Air, Express



Description
Piston kits are included piston, piston pin and piston rings.
The piston diameter: 52.4mm
The piston pin diameter: 13mm
The length of piston pin: 33mm
The piston ring diameter: 52.4*0.8*0.8*1.5mm
Piston is the reciprocating part of the engine. It can be divided into top, head and skirt. The top of the piston is the main part of the combustion chamber, and its shape is related to the selected combustion chamber form. Gasoline engines mostly use flat-top pistons, which has the advantage of small heat absorption area. But for diesel engine, there are always various pits on the top piston, and their specific shape, position and size must be adapted to the requirements of diesel engine mixture formation and combustion.

Product Model

ITEM NO.MODELPiston Ring Diameter(mm)
1BAJAJ 100 53*0.8*0.8*2.0
2BAJAJ 125 54*0.8*0.8*1.5
3BAJAJ 180 63.5*1.0*1.0*2.5
4BAJAJ 205 61*1.0*1.0*2.0
5BAJAJ COMPACT-BS4 63.5*1.0*1.0*2.0
6BAJAJ BOXER KB4S 50*0.8*0.8*1.5
7BAJAJ CALIBER 53*0.8*0.8*2.0
8BAJAJ PULSAR 180 63.5*1.0*1.0*2.5
9BAJAJ DISCOVER135 58*0.8*0.8*1.5
10BAJAJ DISCOVER150 56*0.8*0.8*1.5














ACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm SilverACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm SilverACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm SilverACTIVA 125 Replacing India Piston Rings PR DIA 52.4x0.8x0.8x1.5mm Silver
