Double Rubber Seal Bearings Z3V3 Z4V4 6206 2RS Ball Bearing For Fitness Equipment

Specifications

Brand Name :

BUGAO

Model Number :

6206-2RS, 6206ZZ, 6206

Certification :

ISO 9001:2015

Place of Origin :

Ningbo, China

MOQ :

1,000 pcs

Price :

Negotiable

Payment Terms :

T/T,L/C,Western Union

Supply Ability :

30,000,000 pcs per year

Delivery Time :

20 to 30 years

Packaging Details :

Single Box/Individual Packing, Industrial/Tube Packing, Custom Packing

Precision :

P0, P6, P5, P4

Tolerance Class :

ABEC-1, ABEC-3, ABEC-5, ABEC-7

Clearance :

C2, C0, C3, C4

Protection :

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Row Number :

Single Row

Noise &Vibration :

Z1V1, Z2V2, Z3V3, Z4V4

Bearing Name :

Double Rubber Seal Bearings Z3V3 Z4V4 6206 2RS Ball Bearing For Fitness Equipment

HS Code :

8482102000

Material :

Bearing Steel, Stainless Steel, etc

OEM Service :

Customization Welcomed

Description

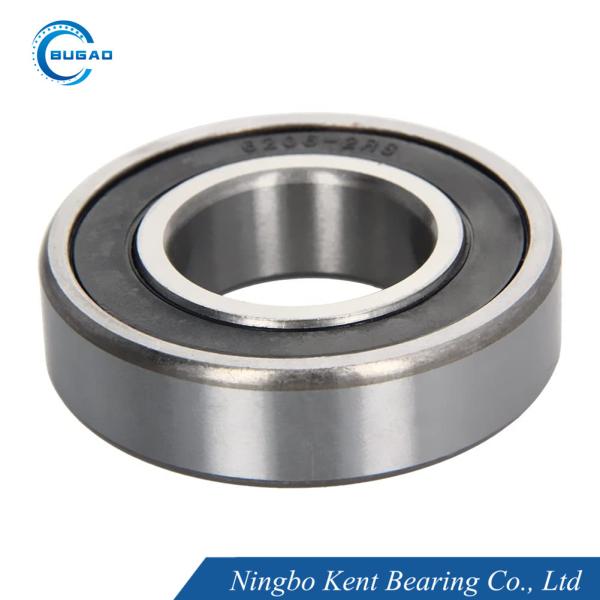

6206-2RS Deep Groove Ball Bearings Skateboard Bearings Double Rubber Seal for Fitness Equipment Electrical Motors

Double Rubber Seal Bearings, such as the 6206 2RS model with precision grades Z3V3 and Z4V4, are high-performance ball bearings specifically designed for demanding applications like fitness equipment. These bearings feature double rubber seals (2RS) on both sides, providing superior protection against contaminants such as dust, dirt, and moisture while retaining lubrication for extended periods. The precision grades Z3V3 and Z4V4 ensure smooth operation, low noise, and high durability, making them ideal for the rigorous and repetitive motions commonly found in fitness machines.

Key Features:

Double Rubber Seals (2RS): Protects the bearing from contamination and retains lubricant, ensuring long-lasting performance.
High Precision (Z3V3, Z4V4): Offers smooth and quiet operation, essential for fitness equipment.
Durable Construction: Made from high-quality steel, providing excellent resistance to wear and tear.
Low Maintenance: The sealed design minimizes the need for frequent lubrication and maintenance.
Versatile: Suitable for a wide range of fitness equipment, including treadmills, exercise bikes, and elliptical machines.

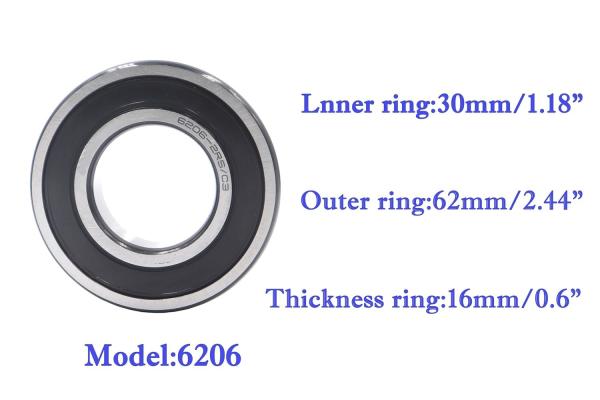

Dimensions:

Inner Diameter (ID): 30 mm
Outer Diameter (OD): 62 mm
Width (W): 16 mm

Advantages for Fitness Equipment:

Smooth and Quiet Operation: The high precision (Z3V3, Z4V4) ensures minimal vibration and noise, enhancing user comfort during workouts.
Durability: The double rubber seals protect the bearing from sweat, dust, and other contaminants, extending its lifespan even under heavy use.
Low Friction: Designed for efficient performance, reducing energy loss and heat generation, which is critical for the longevity of fitness equipment.
Reliability: The robust construction and sealed design ensure consistent performance, reducing downtime and maintenance costs.
High Load Capacity: Capable of handling both radial and axial loads, making it suitable for the dynamic and varied movements in fitness machines.

Applications:

Treadmills: Ensures smooth and reliable operation of the running belt.
Exercise Bikes: Provides durable and low-friction performance for pedals and flywheels.
Elliptical Machines: Supports the smooth motion of the elliptical arms and foot pedals.
Rowing Machines: Handles the repetitive and high-load motions of the rowing mechanism.

Double Rubber Seal Bearings Z3V3 Z4V4 6206 2RS Ball Bearing For Fitness Equipment

6200 Series Bearings Parameters

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight kg/pc
	mm	inch	mm	inch	mm	inch	mm	inch	Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
									C	C_O	r/min	r/min
627	7	0.2756	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.013
628	8	0.3149	24	0.9448	8	0.3149	0.3	0.012	4	1.59	24000	32000	0.017
629	9	0.3543	26	1.0236	8	0.3149	0.3	0.012	4.55	1.96	22000	30000	0.02
6200	10	0.3937	30	1.1811	9	0.3543	0.6	0.024	5.1	2.39	19000	26000	0.032
6201	12	0.4724	32	1.2598	10	0.3937	0.6	0.024	6.1	2.75	18000	24000	0.037
6202	15	0.5906	35	1.3780	11	0.4331	0.6	0.024	7.75	3.6	17000	22000	0.045
6203	17	0.6693	40	1.5748	12	0.4724	0.6	0.024	9.6	4.6	16000	20000	0.066
6204	20	0.7874	47	1.8504	14	0.5512	1.0	0.039	12.8	6.65	14000	18000	0.106
6205	25	0.9843	52	2.0470	15	0.5906	1.0	0.039	14	7.85	12000	16000	0.128
6206	30	1.1811	62	2.4409	16	0.6299	1.0	0.039	19.5	11.3	10000	13000	0.199
6207	35	1.3780	72	2.8346	17	0.6693	1.1	0.043	25.7	15.3	8800	10000	0.287
6208	40	1.5748	80	3.1496	18	0.7087	1.1	0.043	29.1	17.8	7700	9200	0.367
6209	45	1.7717	85	3.3465	19	0.7480	1.1	0.043	32.5	20.4	6800	8200	0.416
6210	50	1.9685	90	3.5433	20	0.7874	1.1	0.043	35	23.2	6100	7300	0.462
6211	55	2.1654	100	3.9370	21	0.8268	1.5	0.059	43.5	29.2	5500	6600	0.602
6212	60	2.3622	110	4.3307	22	0.8661	1.5	0.059	52.5	36	5000	6000	0.789
6213	65	2.5591	120	4.7244	23	0.9055	1.5	0.059	58.5	40.5	4800	5800	0.99
6214	70	2.7559	125	4.9213	24	0.9449	1.5	0.059	63.7	45	4600	5600	1.1
6215	75	2.9528	130	5.1181	25	0.9843	1.5	0.059	68.9	49	4400	5400	1.2

Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

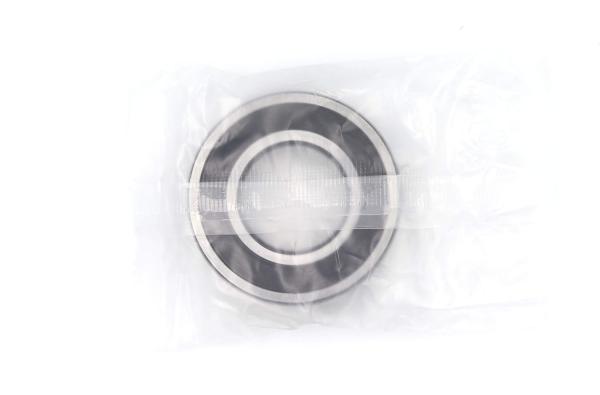

Packing and Shipping:

Deep ball bearings will be packed securely before shipping out, we provide different packing methods.

Bearings packed individually: single box+carton+pallet), or
Industrail Packing: packed in a tube + carton + pallet
Packed as customization packing
Lead time: 15-30 days
Shipping method is negotiable.

Double Rubber Seal Bearings Z3V3 Z4V4 6206 2RS Ball Bearing For Fitness Equipment

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Double Rubber Seal Bearings Z3V3 Z4V4 6206 2RS Ball Bearing For Fitness Equipment

Name: Double Rubber Seal Bearings Z3V3 Z4V4 6206 2RS Ball Bearing For Fitness Equipment
Brand: BUGAO
Price: 1 USD

Ask Latest Price

Product Detail

Brand Name :

BUGAO

Model Number :

6206-2RS, 6206ZZ, 6206

Certification :

ISO 9001:2015

Place of Origin :

Ningbo, China

MOQ :

1,000 pcs

Price :

Negotiable

Contact Supplier

Ningbo Kent Bearing Co., Ltd

Verified Supplier

1 Years

zhejiang, ningbo

Since 2003

Business Type :

Manufacturer

Main Products :

6000 Series Bearing, Electric Motor Bearing, 6200 Series Bearing

Certification Level :

Verified Supplier

Discover similar products

6214-2RS Motor Bearings For Large Electric Motors From Bearing Factory

Contact Now
video

Metal Shielded 6200 Series Bearing Single Row 6201 ZZ Bearings Miniature

Contact Now
video

The Single Row 625 2RS Ball Bearing High Speed Miniature Ball Bearings 5mm

Contact Now
video

6200ZZ High Temperature Resistant and High Speed Bearings are Suitable for High

Contact Now
Tolerance Class ABEC-3 ABEC-5 6206 2RS Ball Bearing for Motor

Contact Now
Silent 6200 Series Bearing 6203 6204 6205 6206 C2 Bearing with Certification

Contact Now
video

C3 Clearance 6200 Series Bearing Z2V2 ABEC-3 Skateboard Bearings Customized

Contact Now
video

420 6200 Series Bearing Stainless Steel 6201 Ball Bearing Customized

Contact Now
video

6200 Series Bearing C3 Radial Ball Bearing For Sports Equipment

Contact Now
6202ZZ Ball Bearing High Speed Precision Bearings

Contact Now

Find Similar Products By Category:

Supplier Homepage Products 6200 Series Bearing

MachineU China Products Minerals & Metallurgy Alloy Steel Bearing Steel

Key Features:

Dimensions:

Advantages for Fitness Equipment:

Applications:

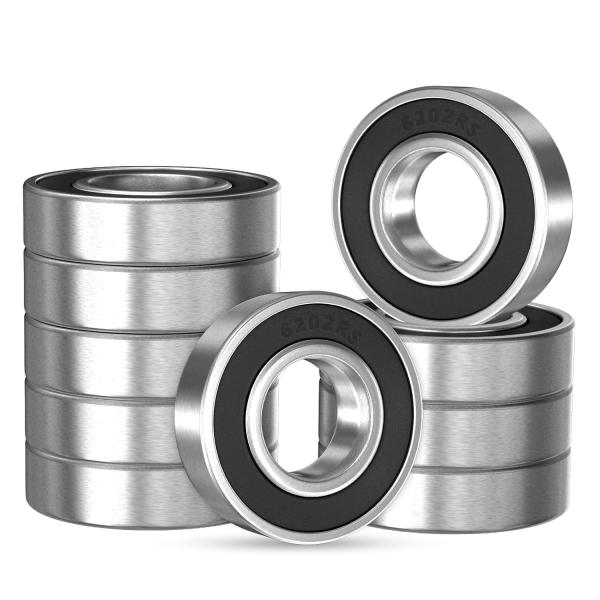

Double Rubber Seal Bearings Z3V3 Z4V4 6206 2RS Ball Bearing For Fitness Equipment

Ningbo Kent Bearing Co., Ltd

6214-2RS Motor Bearings For Large Electric Motors From Bearing Factory

Metal Shielded 6200 Series Bearing Single Row 6201 ZZ Bearings Miniature

The Single Row 625 2RS Ball Bearing High Speed Miniature Ball Bearings 5mm

6200ZZ High Temperature Resistant and High Speed Bearings are Suitable for High

Tolerance Class ABEC-3 ABEC-5 6206 2RS Ball Bearing for Motor

Silent 6200 Series Bearing 6203 6204 6205 6206 C2 Bearing with Certification

C3 Clearance 6200 Series Bearing Z2V2 ABEC-3 Skateboard Bearings Customized

420 6200 Series Bearing Stainless Steel 6201 Ball Bearing Customized

6200 Series Bearing C3 Radial Ball Bearing For Sports Equipment

6202ZZ Ball Bearing High Speed Precision Bearings

Find Similar Products By Category:
