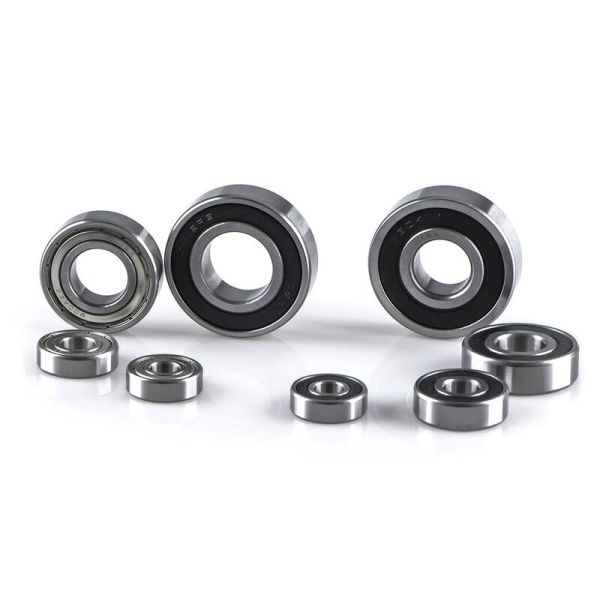

ABEC 5 6001-ZZ Bearing Low Noise 6002-2RS Bearing P5 For Asynchronous Motors

Specifications

Brand Name :

BUGAO

Model Number :

6001ZZ, 6001 2RS, 6002-2RS

Certification :

ISO 9001:2015

Place of Origin :

Ningbo, China

MOQ :

1,000 pcs

Price :

Negotiable

Payment Terms :

T/T,D/P,Western Union

Supply Ability :

30,000,000 pcs per year

Delivery Time :

20 to 30 days

Packaging Details :

Single Packing, Industrial/Tube Packing, Custom Packing

Bearing Name :

60012RS Bearing

Material of bearing :

Bearing Steel, Stainless Steel, Ceramic, etc

Precision of bearing :

P0, P6, P5, P4

Bearing life :

ABEC-1, ABEC-3, ABEC-5, ABEC-7

Seal & Sheild of bearing :

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Noise level of bearing :

Z1V1, Z2V2, Z3V3, Z4V4

Clearance of bearing :

C2, C0, C3, C4

OEM Service :

Customization Welcomed

Description

Industrial Electric Motor Bearing 6001ZZ, 6001 2RS, 6002-2RS P5 High Speed Low Noise For Asynchronous Motors

The 6001 bearing and 6002 bearing are widely used in industrial motors, particularly in asynchronous motors, due to their exceptional performance and reliability. These motor bearings are designed to handle high-speed rotations and significant radial loads, making them ideal for the demanding conditions of industrial applications. The 6001 bearing, with its compact size, is often utilized in smaller motors where space is limited but high precision is required. On the other hand, the 6002 bearing, with a slightly larger diameter, offers enhanced load capacity and durability, making it suitable for larger motors that operate under heavier loads.

In asynchronous motors, the 6001 and 6002 bearings contribute to reduced friction and energy loss, leading to improved efficiency and longer service life. Their robust construction ensures minimal maintenance and reliable operation, even in harsh environments. Additionally, these bearings are designed to minimize vibration and noise, which is crucial for maintaining the smooth operation of asynchronous motors. Overall, the 6001 and 6002 bearings are essential components in industrial motors, providing superior performance, durability, and efficiency in asynchronous motor applications.

Technical Parameters of Industrail Electric Motors (Asynchronous Motors)Ball Bearings:

6000 Series

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight Kg/pc
									Basic Load Rating KN		Maximum Run out Speed
									Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
	mm	inch	mm	inch	mm	inch	mm	inch	C	C_O	r/min	r/min
604	4	0.1575	12	0.4724	4	0.1575	0.2	0.008	0.97	0.36	43000	51000	0.002
605	5	0.1969	14	0.5512	5	0.1969	0.2	0.008	1.33	0.505	39000	46000	0.0035
606	6	0.2362	17	0.6693	6	0.2362	0.3	0.012	2.24	0.91	28000	36000	0.008
607	7	0.2756	19	0.7480	6	0.2362	0.3	0.012	2.24	0.91	28000	36000	0.008
608	8	0.3149	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.012
609	9	0.3543	24	0.9449	7	0.2756	0.3	0.012	3.4	1.45	22000	30000	0.014
6000	10	0.3937	26	1.0236	8	0.3150	0.3	0.012	4.55	1.96	20000	28000	0.019
6001	12	0.4724	28	1.1024	8	0.3150	0.3	0.012	5.1	2.39	19000	26000	0.021
6002	15	0.5906	32	1.2598	9	0.3543	0.3	0.012	5.6	2.84	18000	24000	0.03
6003	17	0.6693	35	1.3780	10	0.3937	0.3	0.012	6.8	3.35	17000	22000	0.039
6004	20	0.7874	42	1.6535	12	0.4724	0.6	0.024	9.4	5.05	15000	19000	0.069
6005	25	0.9843	47	1.8504	12	0.4724	0.6	0.024	10.1	5.85	13000	17000	0.08
6006	30	1.1811	55	2.1654	13	0.5118	1.0	0.039	13.2	8.3	12000	15000	0.116

Customization of Industrail Electric Motors :

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packaging Options of Industrail Electric Motors

Deep groove ball bearings are typically available in two packaging options:
- Single Packing: Individual packaging for each bearing, ensuring protection and ease of handling.
- Industrial Packing: Bulk packaging for large quantities, suitable for industrial use and cost-effective.
- Additionally, manufacturers often accept custom packaging requests to meet specific customer needs.

Other Technical Data of Ball Bearings

ABEC 5 6001-ZZ Bearing Low Noise 6002-2RS Bearing P5 For Asynchronous Motors

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50
