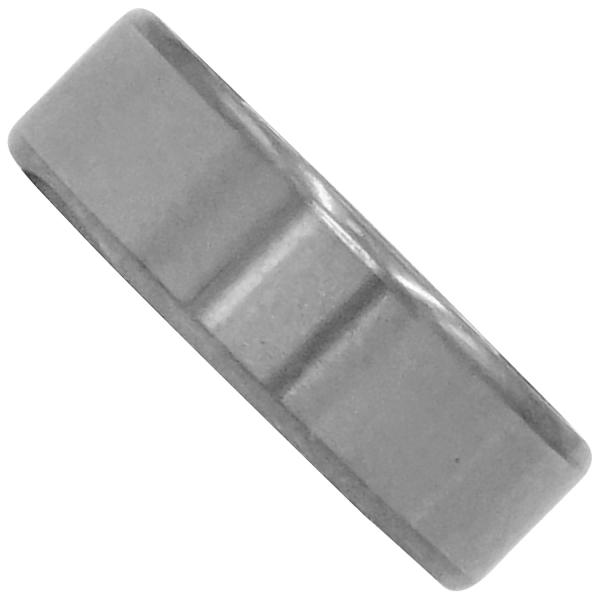

6201-2RS 6201 6201ZZ Motor Spindle Rolling Bearing for High-end Equipment
Deep Groove Ball Bearings in Industrial and Electric Motor Applications
Deep groove ball bearings, such as the ball bearing 6201, are widely used in industrial equipment motors and electric motor bearings due to their versatility and reliability. The 6201 bearing is particularly valued for its ability to handle both radial and axial loads, making it ideal for high-speed applications in machinery and sports equipment. Its compact design, low friction, and durability ensure efficient performance in demanding environments.
Key Features of 6201 Deep Groove Ball Bearings:
- High load capacity
- Low noise and vibration
- Suitable for high-speed operations
- Long service life
These characteristics make the deep groove ball bearings, especially the 6201 bearing, indispensable in industrial equipment motors and electric motors.
Kent Bearing Advantages
Parameter | Kent Bearing | Other Suppliers |
Material | Xingcheng Steel | Standard Steel |
Lubrication | Great Wall Grease | Generic Grease |
Noise Level | Ultra-low | Moderate |
Precision | High | Standard |
Durability | 30% Longer Life | Average |
Price | Competitive | Higher |
Service Support | Timely & Professional | Limited |
Kent Bearing stands out by using premium materials like Xingcheng Steel and high-quality Great Wall Grease, ensuring stable performance, high precision, and low noise. Our 6005 bearings are designed for durability and efficiency, offering exceptional value at competitive prices. With comprehensive technical support and prompt after-sales service, Kent Bearing is your trusted partner for high-performance deep groove ball bearings.
Choose Kent Bearing for superior 6201 bearings that deliver reliability, precision, and cost-effectiveness across household motors and industrial applications.

Technical Parameters of Equipment Ball bearings/62 Series
Basic Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating KN | Maximum Run out Speed | Weight kg/pc |
mm | inch | mm | inch | mm | inch | mm | inch | Dynamic | Static | Grease | Oil |
C | CO | r/min | r/min |
627 | 7 | 0.2756 | 22 | 0.8661 | 7 | 0.2756 | 0.3 | 0.012 | 3.35 | 1.4 | 26000 | 34000 | 0.013 |
628 | 8 | 0.3149 | 24 | 0.9448 | 8 | 0.3149 | 0.3 | 0.012 | 4 | 1.59 | 24000 | 32000 | 0.017 |
629 | 9 | 0.3543 | 26 | 1.0236 | 8 | 0.3149 | 0.3 | 0.012 | 4.55 | 1.96 | 22000 | 30000 | 0.02 |
6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 0.6 | 0.024 | 5.1 | 2.39 | 19000 | 26000 | 0.032 |
6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 0.6 | 0.024 | 6.1 | 2.75 | 18000 | 24000 | 0.037 |
6202 | 15 | 0.5906 | 35 | 1.3780 | 11 | 0.4331 | 0.6 | 0.024 | 7.75 | 3.6 | 17000 | 22000 | 0.045 |
6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 0.6 | 0.024 | 9.6 | 4.6 | 16000 | 20000 | 0.066 |
6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 1.0 | 0.039 | 12.8 | 6.65 | 14000 | 18000 | 0.106 |
6205 | 25 | 0.9843 | 52 | 2.0470 | 15 | 0.5906 | 1.0 | 0.039 | 14 | 7.85 | 12000 | 16000 | 0.128 |
6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 1.0 | 0.039 | 19.5 | 11.3 | 10000 | 13000 | 0.199 |
6207 | 35 | 1.3780 | 72 | 2.8346 | 17 | 0.6693 | 1.1 | 0.043 | 25.7 | 15.3 | 8800 | 10000 | 0.287 |
6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 1.1 | 0.043 | 29.1 | 17.8 | 7700 | 9200 | 0.367 |
6209 | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.7480 | 1.1 | 0.043 | 32.5 | 20.4 | 6800 | 8200 | 0.416 |
6210 | 50 | 1.9685 | 90 | 3.5433 | 20 | 0.7874 | 1.1 | 0.043 | 35 | 23.2 | 6100 | 7300 | 0.462 |
6211 | 55 | 2.1654 | 100 | 3.9370 | 21 | 0.8268 | 1.5 | 0.059 | 43.5 | 29.2 | 5500 | 6600 | 0.602 |
6212 | 60 | 2.3622 | 110 | 4.3307 | 22 | 0.8661 | 1.5 | 0.059 | 52.5 | 36 | 5000 | 6000 | 0.789 |
6213 | 65 | 2.5591 | 120 | 4.7244 | 23 | 0.9055 | 1.5 | 0.059 | 58.5 | 40.5 | 4800 | 5800 | 0.99 |
6214 | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 1.5 | 0.059 | 63.7 | 45 | 4600 | 5600 | 1.1 |
6215 | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 1.5 | 0.059 | 68.9 | 49 | 4400 | 5400 | 1.2 |
Customization of :
-
We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
-
We can custom your packaging according to your design.
-
All copyright owned by clients and we promised don't disclose any information.
Packing and Shipping:
-
The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
-
Shipping method is negotiable.
-

ABEC-1 Tolerance Class ABEC-1 (P0)
Inner Ring | Tolerance in um/s |
d mm | Δdmp | 9 | Vdp²)0,1 Diameter Series | 2,3,4 | Vdmp | Kia | ΔBs | Vbs |
over | including | high | low | max | max | max | high | low | max |
1)0.6 | 2.5 | 0 | -8 | 10 | 8 | 6 | 6 | 10 | 0 | -40 | 12 |
2.5 | 10 | 0 | -8 | 10 | 8 | 6 | 6 | 10 | 0 | -120 | 15 |
10 | 18 | 0 | -8 | 10 | 8 | 6 | 6 | 10 | 0 | -120 | 20 |
18 | 30 | 0 | -10 | 13 | 10 | 8 | 8 | 13 | 0 | -120 | 20 |
30 | 50 | 0 | -12 | 15 | 12 | 9 | 9 | 15 | 0 | -120 | 20 |
50 | 80 | 0 | -15 | 19 | 19 | 11 | 11 | 20 | 0 | -150 | 25 |
Outer Ring | Tolerance in um/s |
D mm | Δdmp | VDp2)4)Open Bearings Diameter Series | Capped Bearings2)3) | Vdmp | Kia | ΔBs | Vbs |
9 | 0,1 | 2,3,4 | 2,3,4 |
over | including | high | low | max | max | max | high | low | max |
1)2.5 | 6 | 0 | -8 | 10 | 8 | 6 | 10 | 6 | 15 | Identical to ΔBs and VBs of inner ring of same bearing |
6 | 18 | 0 | -8 | 10 | 8 | 6 | 10 | 6 | 15 |
18 | 30 | 0 | -9 | 12 | 9 | 7 | 12 | 7 | 15 |
30 | 50 | 0 | -11 | 14 | 11 | 8 | 16 | 8 | 20 |
50 | 80 | 0 | -13 | 16 | 13 | 10 | 20 | 10 | 25 |
80 | 120 | 0 | -15 | 19 | 19 | 11 | 26 | 11 | 35 |
120 | 150 | 0 | -18 | 23 | 23 | 14 | 30 | 14 | 40 |
ABEC-3 Tolerance Class ABEC-3 (P6)
Inner Ring | Tolerance in um/s |
d mm | Δdmp | 9 | Vdp²)0,1 Diameter Series | 2,3,4 | Vdmp | Kia | ΔBs | Vbs |
over | including | high | low | max | max | max | high | low | max |
11)0.6 | 2.5 | 0 | -7 | 9 | 7 | 5 | 5 | 5 | 0 | -40 | 12 |
2.5 | 10 | 0 | -7 | 9 | 7 | 5 | 5 | 6 | 0 | -120 | 15 |
10 | 18 | 0 | -7 | 9 | 7 | 5 | 5 | 7 | 0 | -120 | 20 |
18 | 30 | 0 | -8 | 10 | 8 | 6 | 6 | 8 | 0 | -120 | 20 |
30 | 50 | 0 | -10 | 13 | 10 | 8 | 8 | 10 | 0 | -120 | 20 |
50 | 80 | 0 | -12 | 15 | 15 | 9 | 9 | 10 | 0 | -150 | 25 |
Outer Ring | Tolerance in um/s |
D mm | Δdmp | VDp2)4)Open Bearings Diameter Series | Capped Bearings2)3) | Vdmp | Kia | ΔBs | Vbs |
9 | 0,1 | 2,3,4 | 2,3,4 |
over | including | high | low | max | max | max | high | low | max |
1)2.5 | 6 | 0 | -7 | 9 | 7 | 5 | 9 | 5 | 8 | Identical to ΔBs and VBs of inner ring of same bearing |
6 | 18 | 0 | -7 | 9 | 7 | 5 | 9 | 5 | 8 |
18 | 30 | 0 | -8 | 10 | 8 | 6 | 10 | 6 | 9 |
30 | 50 | 0 | -9 | 11 | 9 | 7 | 13 | 7 | 10 |
50 | 80 | 0 | -11 | 14 | 11 | 8 | 16 | 8 | 13 |
80 | 120 | 0 | -13 | 16 | 16 | 10 | 20 | 10 | 18 |
120 | 150 | 0 | -15 | 19 | 19 | 11 | 25 | 11 | 20 |
ABEC-5 Tolerance Class ABEC-5 (P5)
Inner Ring | Tolerance in um/s |
d mm | Δdmp | Vdp²)Diameter Series | Vdmp | Kia | Sd | Sis3) | ΔBs | Vbs |
9 | 0,1,2,3,4 |
over | including | high | low | max | 3 | max | max | max | High | Low | max |
1)0.6 | 2.5 | 0 | -5 | 5 | 4 | 3 | 4 | 7 | 7 | 0 | -40 | 5 |
2.5 | 10 | 0 | -5 | 5 | 4 | 3 | 4 | 7 | 7 | 0 | -40 | 5 |
10 | 18 | 0 | -5 | 5 | 4 | 3 | 4 | 7 | 7 | 0 | -80 | 5 |
18 | 30 | 0 | -6 | 6 | 5 | 3 | 4 | 8 | 8 | 0 | -120 | 5 |
30 | 50 | 0 | -8 | 8 | 6 | 4 | 5 | 8 | 8 | 0 | -120 | 5 |
50 | 80 | 0 | -9 | 9 | 7 | 5 | 5 | 8 | 8 | 0 | -150 | 6 |
Outer Ring | Tolerance in um/s |
D mm | Δdmp | Vdp²)Diameter Series | Vdmp | Kia | SD4) SD15) | Sea4)5) | ΔBs | Vbs |
9 | 0,1,2,3,4 |
over | including | high | low | max |
| max | max | max | High | Low | max |
1)2.5 | 6 | 0 | -5 | 5 | 4 | 3 | 5 | 8 | 8 |
| 5 |
6 | 18 | 0 | -5 | 5 | 4 | 3 | 5 | 8 | 8 | 5 |
18 | 30 | 0 | -6 | 6 | 5 | 3 | 6 | 8 | 8 | 5 |
30 | 50 | 0 | -7 | 7 | 5 | 4 | 7 | 8 | 8 | 5 |
50 | 80 | 0 | -9 | 9 | 7 | 5 | 8 | 8 | 10 | 6 |
80 | 120 | 0 | -10 | 10 | 8 | 5 | 10 | 9 | 11 | 8 |
120 | 150 | 0 | -11 | 11 | 8 | 6 | 11 | 10 | 13 | 8 |
ABEC-7 Tolerance Class ABEC-7 (P4)
Inner Ring | Tolerance in um/s |
d mm | Δdmp | Δds | Vdp²)Diameter Series | Vdmp | Kia | Sd | Sia | ΔBs | Vbs |
7,8,9 | 1,7,2,3,4 |
over | including | high | low | high | low | max | max | max | max | max | High | low | Low | max |
1)0.6 | 2.5 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 2.5 | 3 | 3 | 0 | -40 | -40 | 2.5 |
2.5 | 10 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 2.5 | 3 | 3 | 0 | -40 | -40 | 2.5 |
10 | 18 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 2.5 | 3 | 3 | 0 | -80 | -80 | 2.5 |
18 | 30 | 0 | -5 | 0 | -5 | 5 | 4 | 2.5 | 3 | 4 | 4 | 0 | -120 | -120 | 2.5 |
30 | 50 | 0 | -6 | 0 | -5 | 6 | 4 | 3 | 4 | 4 | 4 | 0 | -120 | -120 | 3 |
50 | 80 | 0 | -7 | 0 | -5 | 7 | 5 | 3.5 | 4 | 5 | 5 | 0 | -150 | -150 | 4 |
Outer Ring | Tolerance in um/s |
D mm | Δdmp | Δds | Vdp²)Diameter Series | Vdmp | Kia | Sd | Sia | ΔBs | Vbs |
7,8,9 | 1,7,2,3,4 |
over | including | high | low | high | low | max | max | max | max | max | High | low | max |
1)2.5 | 6 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 3 | 4 | 5 | Identical to ΔBs and VBs of inner ring of same bearing | 2.5 |
6 | 18 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 3 | 4 | 5 | 2.5 |
18 | 30 | 0 | -5 | 0 | -5 | 5 | 4 | 2.5 | 4 | 4 | 5 | 2.5 |
30 | 50 | 0 | -6 | 0 | -6 | 6 | 5 | 3 | 5 | 4 | 5 | 2.5 |
50 | 80 | 0 | -7 | 0 | -7 | 7 | 5 | 3.5 | 5 | 4 | 5 | 3 |
80 | 120 | 0 | -8 | 0 | -8 | 8 | 6 | 4 | 6 | 5 | 6 | 4 |
120 | 150 | 0 | -9 | 0 | -9 | 9 | 7 | 5 | 7 | 5 | 7 | 5 |

Tolerance Data for Vibration of Single Bearing
D | V | V1 | V2 | V3 | V4 |
mm | Low | Medium | High | Low | Medium | High | Low | Medium | High | Low | Medium | High | Low | Medium | High |
3,4 | 80 | 44 | 44 | 60 | 35 | 32 | 48 | 26 | 22 | 31 | 16 | 15 | 28 | 10 | 10 |
5,6 | 110 | 72 | 60 | 74 | 48 | 40 | 58 | 36 | 30 | 35 | 21 | 18 | 32 | 11 | 11 |
7,8,9 | 130 | 96 | 80 | 92 | 66 | 54 | 72 | 48 | 40 | 44 | 28 | 24 | 38 | 12 | 12 |
10,12 | 160 | 120 | 100 | 120 | 80 | 70 | 90 | 60 | 50 | 55 | 35 | 30 | 45 | 14 | 15 |
15 | 210 | 150 | 120 | 150 | 100 | 85 | 110 | 78 | 60 | 65 | 46 | 35 | 52 | 18 | 18 |
17 | 210 | 150 | 120 | 150 | 100 | 85 | 110 | 78 | 60 | 65 | 46 | 35 | 52 | 25 | 25 |
20 | 260 | 190 | 150 | 180 | 125 | 100 | 130 | 100 | 75 | 80 | 60 | 45 | 60 | 25 | 25 |
22,25 | 260 | 190 | 150 | 180 | 125 | 100 | 130 | 100 | 75 | 80 | 60 | 45 | 60 | 30 | 32 |
28 | 260 | 190 | 150 | 180 | 125 | 100 | 130 | 100 | 75 | 80 | 60 | 45 | 60 | 35 | 40 |
30,32 | 300 | 240 | 190 | 200 | 150 | 130 | 150 | 120 | 100 | 90 | 75 | 60 | 70 | 35 | 40 |
35 | 300 | 240 | 190 | 200 | 150 | 130 | 150 | 120 | 100 | 90 | 75 | 60 | 70 | 42 | 45 |
40 | 360 | 300 | 260 | 240 | 180 | 160 | 180 | 150 | 130 | 110 | 90 | 80 | 82 | 50 | 50 |
45 | 360 | 300 | 260 | 240 | 180 | 160 | 180 | 150 | 130 | 110 | 90 | 80 | 82 | 60 | 60 |
50 | 420 | 320 | 320 | 280 | 200 | 200 | 210 | 160 | 160 | 125 | 100 | 100 | 95 | 70 | 70 |
Maximum Vibration Acceleration of Single Bearing
D | Diameter Series(0) | Diameter Series(2) | Diameter Series(3) |
mm | Z | Z1 | Z2 | Z3 | Z | Z1 | Z2 | Z3 | Z4 | Z | Z1 | Z2 | Z3 | Z4 |
3 | 35 | 34 | 32 | 28 | 36 | 35 | 32 | 30 | - | 37 | 36 | 33 | 31 | - |
4 | 35 | 34 | 32 | 28 | 36 | 35 | 32 | 30 | - | 37 | 36 | 33 | 31 | - |
5 | 37 | 36 | 34 | 30 | 38 | 37 | 34 | 32 | - | 39 | 37 | 35 | 33 | - |
6 | 37 | 36 | 34 | 30 | 38 | 37 | 34 | 32 | - | 39 | 37 | 35 | 33 | - |
7 | 39 | 38 | 35 | 31 | 40 | 38 | 36 | 34 | - | - | - | - | - | - |
8 | 39 | 38 | 35 | 31 | 40 | 38 | 36 | 34 | - | - | - | - | - | - |
9 | 41 | 40 | 36 | 32 | 42 | 40 | 37 | 35 | - | - | - | - | - | - |
10 | 43 | 42 | 38 | 33 | 44 | 42 | 39 | 35 | 30 | 37 | 44 | 40 | 37 | 32 |
12 | 44 | 43 | 39 | 34 | 45 | 43 | 39 | 35 | 30 | 47 | 45 | 40 | 37 | 32 |
15 | 45 | 44 | 40 | 35 | 46 | 44 | 41 | 36 | 31 | 48 | 46 | 42 | 38 | 33 |
17 | 46 | 44 | 40 | 35 | 47 | 45 | 41 | 36 | 31 | 49 | 47 | 42 | 38 | 33 |
20 | 47 | 45 | 41 | 36 | 48 | 46 | 42 | 38 | 33 | 50 | 48 | 43 | 39 | 34 |
22 | 47 | 45 | 41 | 36 | 48 | 46 | 42 | 38 | 33 | 50 | 48 | 43 | 39 | 34 |
25 | 48 | 46 | 42 | 38 | 49 | 47 | 43 | 40 | 36 | 51 | 49 | 44 | 41 | 37 |
28 | 49 | 47 | 43 | 39 | 50 | 48 | 44 | 41 | 37 | 52 | 50 | 45 | 42 | 38 |
30 | 49 | 47 | 43 | 39 | 50 | 48 | 44 | 41 | 37 | 52 | 50 | 45 | 42 | 38 |
32 | 50 | 48 | 44 | 40 | 51 | 49 | 45 | 42 | 38 | 53 | 51 | 46 | 43 | 39 |
35 | 51 | 49 | 45 | 41 | 52 | 50 | 46 | 43 | 39 | 54 | 52 | 47 | 44 | 40 |
40 | 53 | 51 | 46 | 42 | 54 | 52 | 47 | 44 | 40 | 56 | 54 | 49 | 45 | 41 |
45 | 55 | 53 | 48 | 45 | 56 | 54 | 49 | 46 | 43 | 58 | 56 | 51 | 47 | 44 |
50 | 57 | 54 | 50 | 47 | 58 | 55 | 51 | 48 | 45 | 60 | 57 | 53 | 49 | 46 |
55 | 59 | 56 | 52 | 49 | 60 | 57 | 53 | 50 | 47 | 62 | 59 | 54 | 51 | 48 |
60 | 61 | 58 | 54 | 51 | 62 | 59 | 54 | 51 | 48 |
| 61 | 56 | 53 | 50
|
