OEM Service Self-Aligning Spherical Bearing UC204 For Agricultural Equipment Static Load Rating 49kN
OEM Service Self-Aligning Spherical Bearing UC204 For Agricultural Equipment Static Load Rating 49kN
OEM Service Self-Aligning Spherical Bearing UC204 For Agricultural Equipment Static Load Rating 49kN
OEM Service Self-Aligning Spherical Bearing UC204 For Agricultural Equipment Static Load Rating 49kN
OEM Service Self-Aligning Spherical Bearing UC204 For Agricultural Equipment Static Load Rating 49kN
OEM Service Self-Aligning Spherical Bearing UC204 For Agricultural Equipment Static Load Rating 49kN
Specifications
Brand Name :
BUGAO
Model Number :
UC204
Certification :
ISO 9001:2015
Place of Origin :
Ningbo, China
MOQ :
1,000 pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30,000,000 pcs per year
Delivery Time :
Negotiable
Packaging Details :
Single Packing, Industrial/Tube Packing, Custom Packing
Oem Service :
Customization welcomed
Tolerance Class :
ABEC-1, ABEC-3, ABEC-5
Size :
Standard
Shape :
Straight Cylinder/Flange/Open
Cage Type :
Steel
Flange Shape :
Square Trimmed Type Circular Ellipse
Clearance Of Bearing :
C2, C0, C1, C3
Sample :
Available
Cage Material :
Steel
Application :
Electric Motors
Static Load Rating :
49kN
Material Of Bearing :
Bearing Steel or Stainless Steel
Precision Of Bearing :
P0, P6, P5, P4
Samples :
Available
Seal Type :
Open
Description

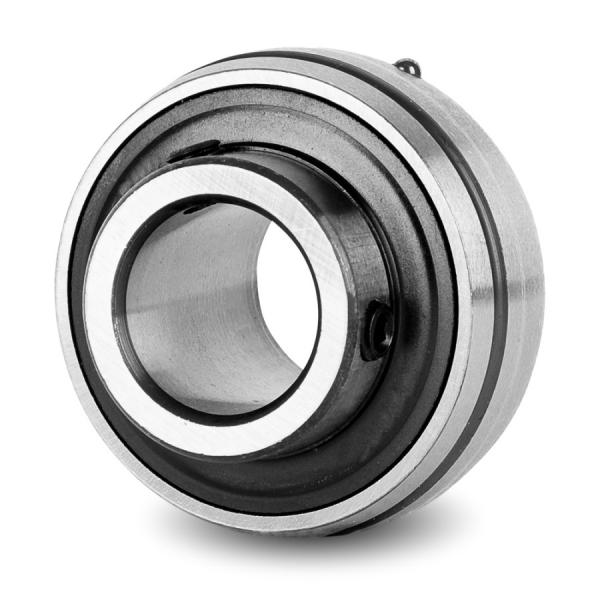

UC204 is a Insert Bearing (with Setscrew), commonly used in power transmission systems, featuring self-aligning capability to accommodate minor shaft misalignment.

1. Detailed Dimensional Specifications

Parameter Value (mm) Description
Bore Diameter (d) 20 mm Shaft diameter
Outside Diameter (D) 47 mm Housing outer diameter
Width (B) 34 mm Total housing width
Bolt Hole Spacing (A) 32 mm Distance between mounting holes
Bolt Hole Diameter (d1) 6.6 mm Mounting hole diameter
Base Height (H) 20 mm Height from base to shaft center
Seal Groove Diameter (d2) 30 mm Seal groove position diameter (if applicable)
Weight (kg) ~0.25 kg Approximate weight


2. Load Ratings

  • Dynamic Load Rating (C):11.6 kN

  • Static Load Rating (C₀):5.75 kN

  • Speed Limit (Grease Lubrication):7000 rpm

  • Self-Aligning Angle:±2° (compensates for minor misalignment)

UC204 Bearing Applications

Due to its self-aligning feature and easy installation, UC204 is widely used in:

  1. Agricultural Machinery

    • Tractors, harvesters, seeders, etc.

  2. Conveying Equipment

    • Belt conveyors, chain conveyors.

  3. Fans & Pumps

    • Medium-low speed applications with light-to-moderate loads.

  4. Food Processing Machinery

    • Mixers, conveyors (requires dust-proof & easy maintenance).

  5. Textile Machinery

    • Transmission components requiring self-alignment.

Key Advantages of UC204 Bearing

  1. Self-Aligning Capability

    • Tolerates ±2° misalignment, reducing wear caused by shaft deflection.

  2. Easy Installation

    • Setscrew (M8) fixation eliminates the need for additional locking devices.

  3. Enhanced Sealing

    • Typically equipped with rubber seals (RS/2RS) for dust/contaminant protection.

  4. Low Maintenance

    • Unitized design simplifies replacement and reduces downtime.

  5. Versatile Performance

    • Suitable for low-to-medium speed and load across industrial & agricultural applications.

Selection Guidelines

  • Higher Load Capacity: Consider UC204

  • Higher Speed Requirements: Opt for deep groove ball bearings (e.g., 6206).

  • Corrosive Environments: Choose stainless steel (UC204-SS) or coated variants.
