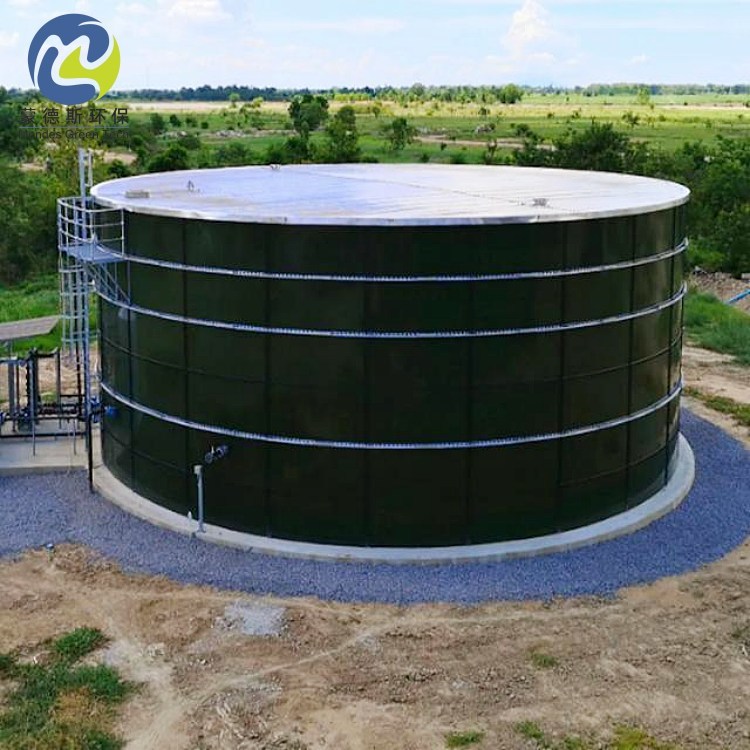

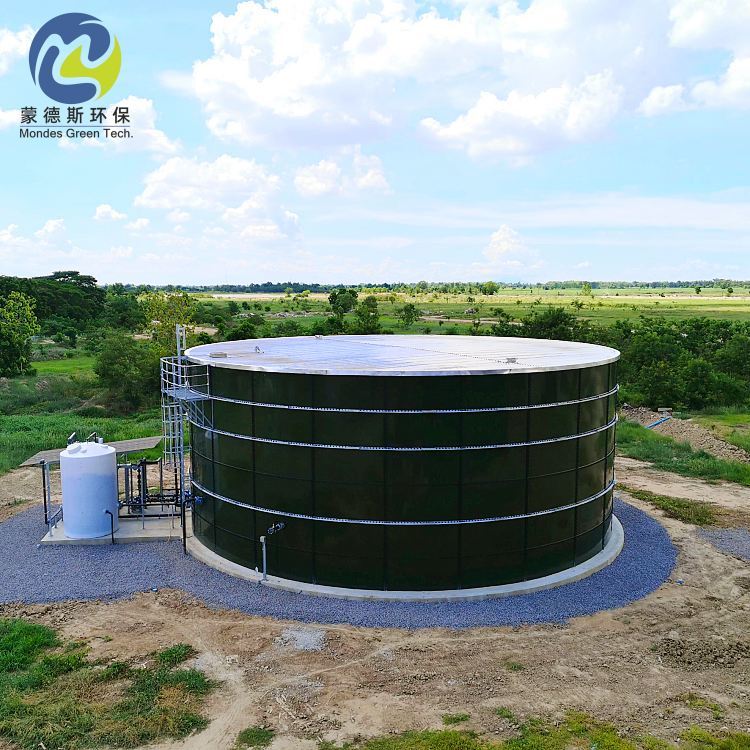

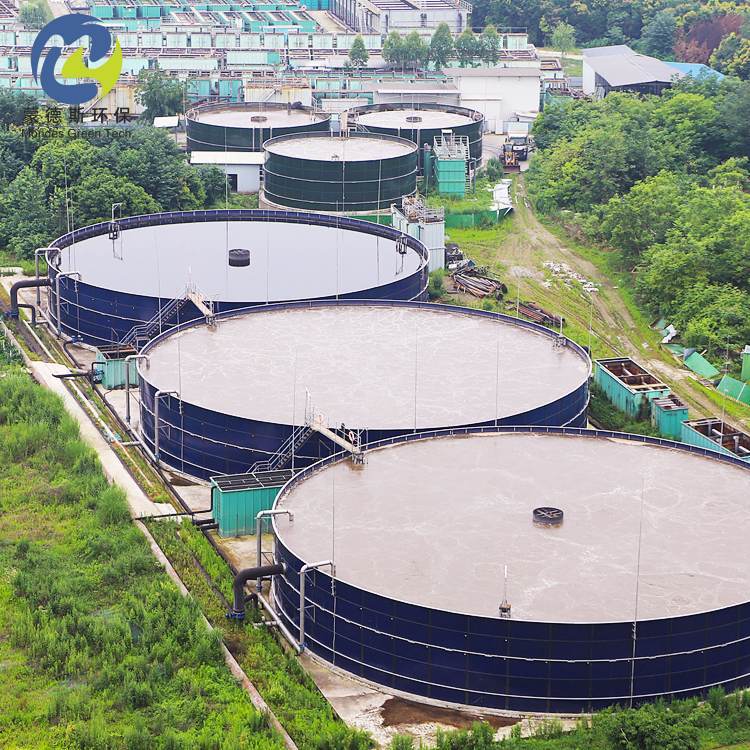

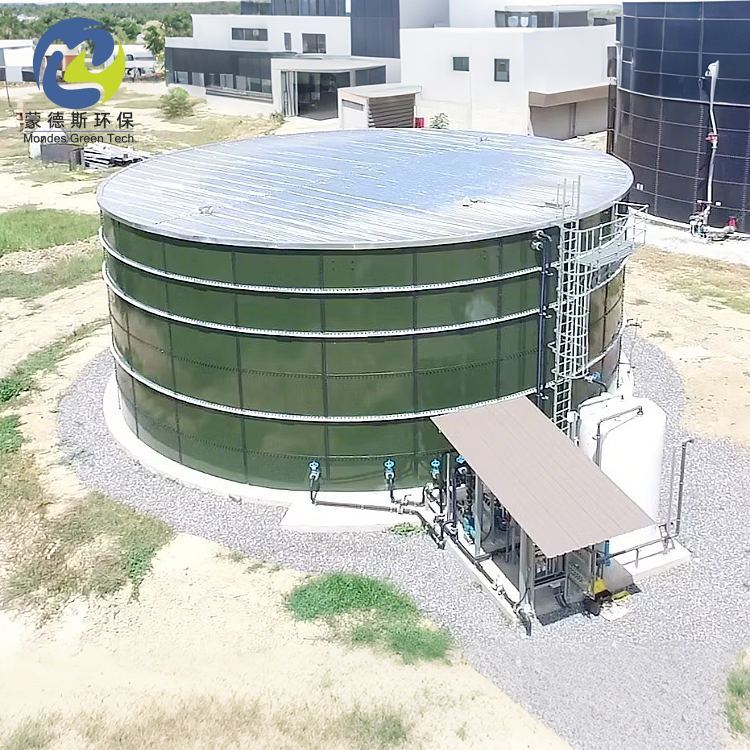

High Tensile Galvanized GFS Bolted Water Storage Tank
High Tensile Galvanized GFS Bolted Water Storage Tank
High Tensile Galvanized GFS Bolted Water Storage Tank
High Tensile Galvanized GFS Bolted Water Storage Tank
High Tensile Galvanized GFS Bolted Water Storage Tank
High Tensile Galvanized GFS Bolted Water Storage Tank
High Tensile Galvanized GFS Bolted Water Storage Tank
High Tensile Galvanized GFS Bolted Water Storage Tank
Specifications
Certification :
NSF/ANSI 61, CE, ISO9001:2015
Supply Ability :
20 sets per month
Height :
3 m to 24 m
Model Number :
MDS-GFS5000
Payment Terms :
L/C,T/T
Diameter :
3 m to 50 m
MOQ :
1 SET
Packaging Details :
Angle Iron Frame + Tray + Collision Protection
Enamel Coating Thickness :
250 - 450 μm
Temperature Range :
-50°C to +80°C (liquid)
pH Tolerance :
1 - 14
Bolt Material :
High-tensile galvanized or stainless steel
Brand Name :
MDS
Price :
Please contact us
Capacity :
20 m³ to 20,000 m³+
Place of Origin :
CHINA
Delivery Time :
5~60 days
Steel Thickness :
3 mm - 22 mm
Description

GFS Bolted Water Storage Tank


GFS Technology

A Complete Guide to GFS Bolted Tanks

Why Glass-Fused-to-Steel Is Revolutionizing Industrial Liquid Storage

Engineers and project managers in over 80 countries are switching from concrete and welded steel tanks to GFS bolted tanks. Here is what drives the switch, and how this technology can cut your project time and maintenance costs by up to 60%.

30+
Years Lifespan
7 Days
Install Time
20+
Countries Served
pH 1-14
Corrosion Resistance

What Is a GFS Bolted Tank?

A GFS bolted tank (Glass-Fused-to-Steel bolted tank), also known as an enamel bolted tank or glass-lined steel tank, is a modular liquid storage tank made by fusing a layer of specialized glass to a steel substrate at temperatures exceeding 800°C (1,472°F). The glass and steel bond into one material that has both the strength of steel and the corrosion resistance of glass.

Unlike traditional welded steel tanks that require on-site welding and heavy machinery, GFS tanks are factory-manufactured in precision-cut panels and bolted together on-site using proprietary sealants and high-tensile bolts. This bolted design allows for faster installation and easier expansion, with no on-site welding. It works well for projects in remote locations, on tight schedules, or in regions with limited skilled labor.

Key takeaway: GFS bolted tanks are not "coated" steel — the glass and steel are molecularly fused, creating a surface that will never peel, chip, or delaminate.

7 Reasons GFS Bolted Tanks Beat Other Options
——————————————————
