Biodegradable Pulp Molded Meat Tray Machine
Biodegradable Pulp Molded Meat Tray Machine
Specifications
Brand Name :
ChuangYi
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20sets
Delivery Time :
60-90days
Packaging Details :
Export Standar Packing
Automation :
Fully automatic
Raw material :
bagasse/bamboo/wood/straw
Mold size :
1300*1100 or 1100*800mm
Forming method :
Vacuum Suction
Control Method :
PLC and Touch Screen
Finish Product :
non-plastic eco friendly tableware
Description

Biodegradable Pulp Molded Meat Tray Machine

Machine Description


Pulp fiber bagasse tableware production line is composed of pulping system, thermoforming machine (with forming, wet hot pressing & trimming all in one machine), vacuum system, air compressor system.

CY offer turnkey project including machine manufacture, mold design, sampling, machine installation, after sales service and spare parts service.

Technical Description
Machine Material All parts in contact with water is SS304 Stainless Steel
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen

Key Advantages


Faster speed by automatic robot transfer
Less worker
Fully auto operating system

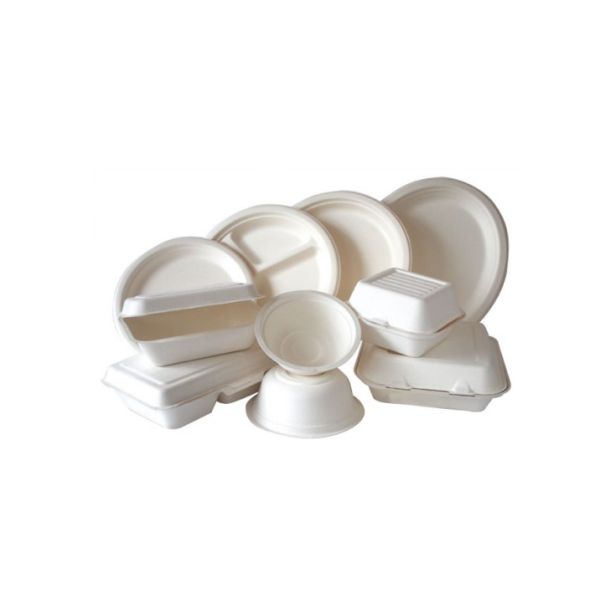

Application


Change mold could available to produce most kind of pulp tableware
Lunch box

Plate/Dish with/without compartment

Round tray

Meat tray

Bowl

Cups & Lids

Pizza box

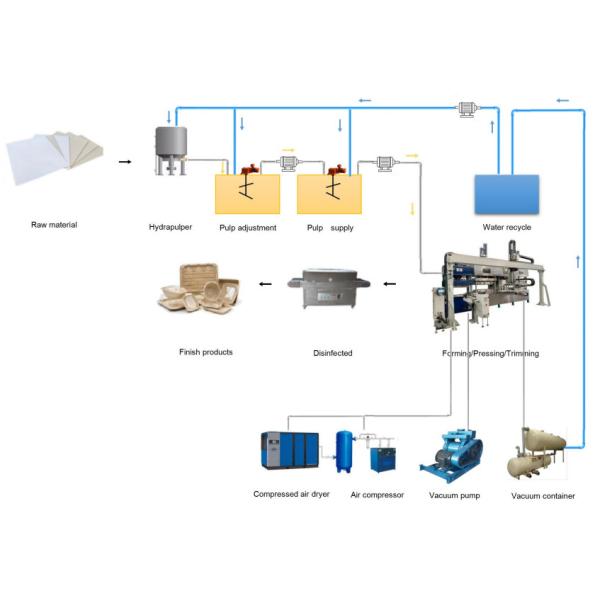

Production Working Process:

Biodegradable Pulp Molded Meat Tray Machine

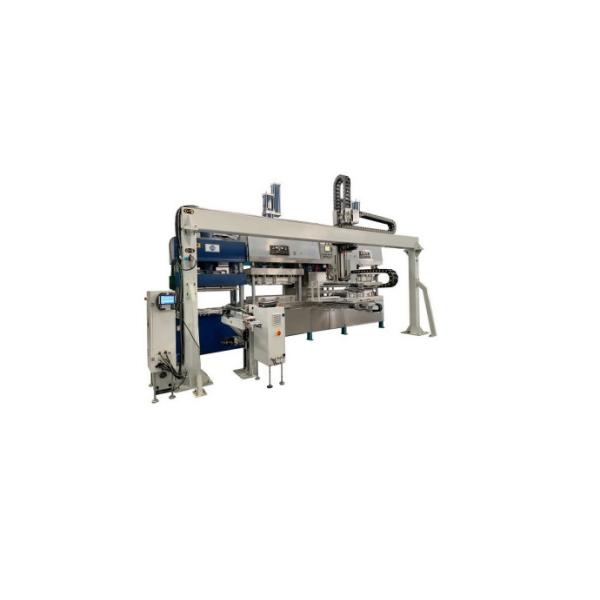

Illustration of machine and product:

Biodegradable Pulp Molded Meat Tray MachineBiodegradable Pulp Molded Meat Tray Machine
