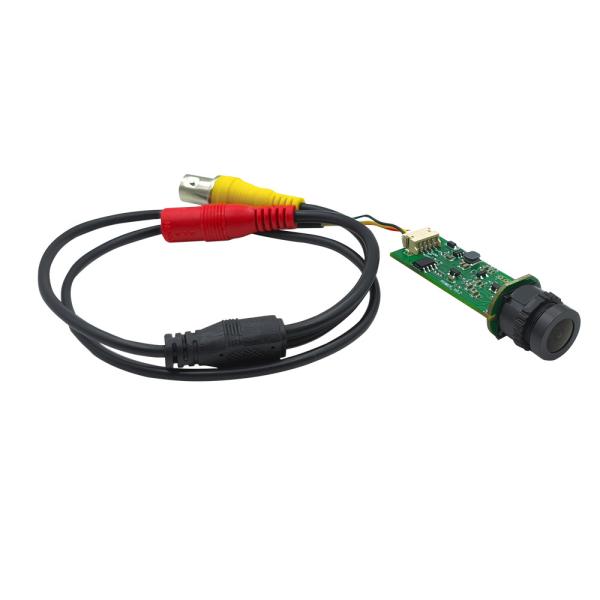

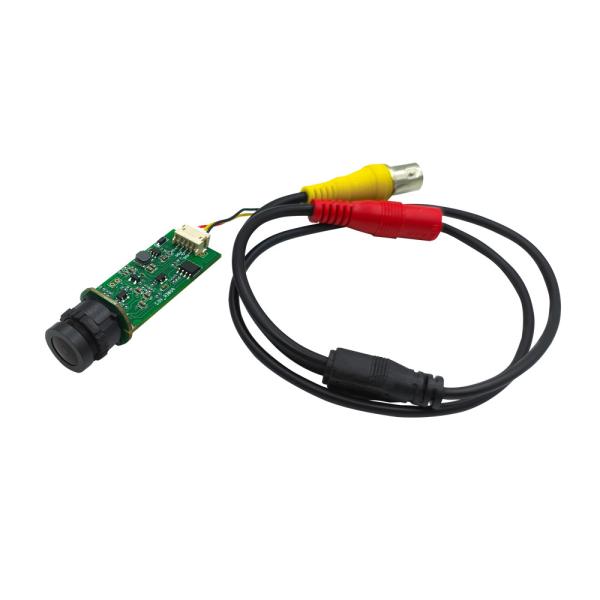

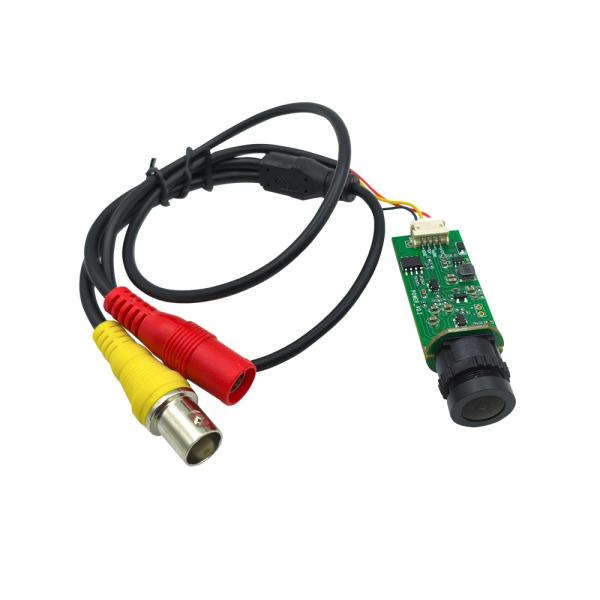

700tvl Closed-circuit Television CVBS Camera Module With 2.8mm Wide-angle 120 Lens

Product Introduction

This CVBS analog camera module, with a size of (42×18mm), is equipped with a 700TVLcmos sensor and a 120 ° wide-angle lens, designed specifically for embedded security, mechanical vision, and covert surveillance. With a smooth capture capability of 50 frames per second and zero latency dynamic monitoring at a resolution of 640×480, it is the cost-effective choice for device integrators.

Technical Parameters: 2.8mm Lens Specification.pdf

Highlights of core product functions

1. Millisecond level response monitoring: 50fps high frame rate, 700TVL high-definition resolution, presenting sharp details in analog signals, can clearly identify circuit board component numbers/dashboard scales
2. Small stature and large field of view: equipped with a 2.8mm wide-angle 120 ° lens. Coin level body: Only 42×18mm, it can be embedded in small spaces such as prohibited entry machines, ATM machines, robot abdominal cavities, etc.
3. Industrial grade reliability: CVBS anti-interference transmission, stable operation in strong electromagnetic environment.

Professional customized services

We have a deep understanding of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design specialized casings, brackets, or fixing methods based on the structure of the device.
3. Cable length customization: Customize cable length.

Huachuang Finished Product List.xls

Camera application field

Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, vehicle driving recorder (DVR), small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, Advertising machine, all-in-one machine, intelligent electronic scale, automatic welding equipment, fire water gun, external law enforcement instrument, external camera for Android phone, computer camera, high-speed camera etc.
