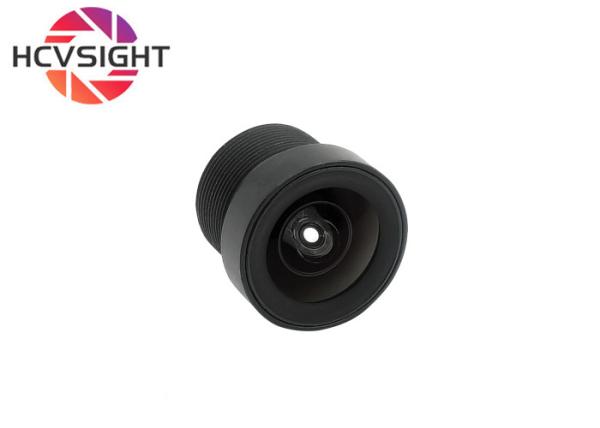

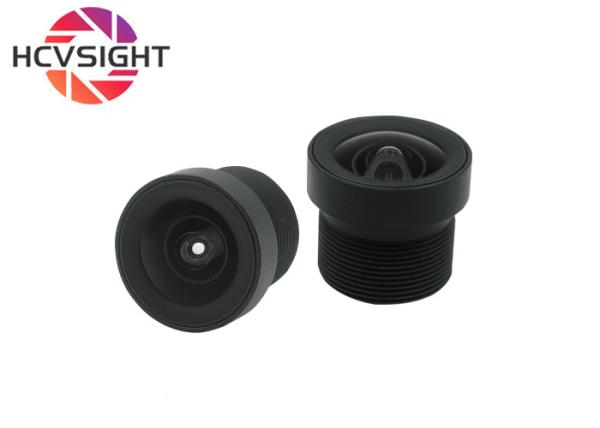

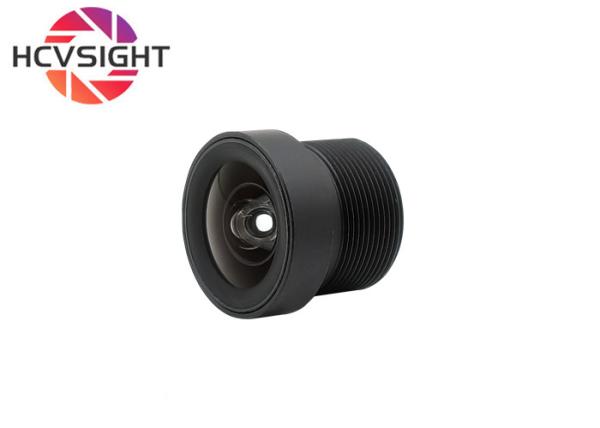

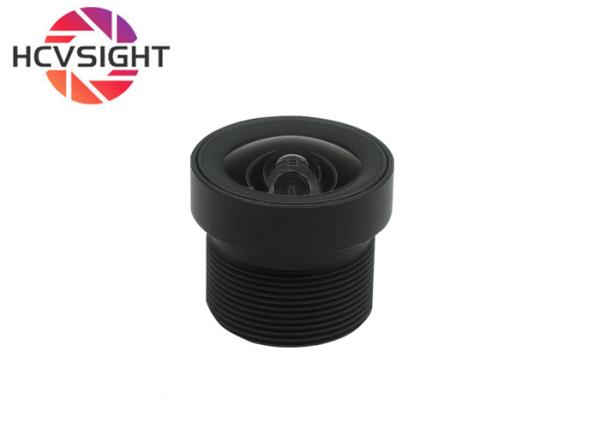

HFOV 110 Degree Focal Length 2mm M12 Lens F2.0 Aperture Distortion Free Lens

Product Introduction

2mm focal length distortion free high-definition lens, redefining the limits of wide-angle imaging! A wide-angle optical system designed specifically for industrial precision inspection, using a combination of 6 high transmittance glass lenses (6E) and a 1/2.8 "CMOS sensor, achieving a horizontal field of view angle of 110 ° (120 ° diagonally) and an edge distortion rate of 2.6%, completely solving the pain point of fish eye deformation. Standard M12×0.5 interface, compatible with mainstream industrial camera modules.

Specifications: 2.8mm No distortion Lens.pdf

Core functions of the product

Focal length: 2.0mm
Chip compatibility: 1/2.8 "sensor
Optical structure: 6 all glass lenses, multi-layer nano coating
Distortion control: Distortion 2.6%, relative brightness>41%
Interface standard: M12 × 0.5 thread
Ultra wide angle performance: 110 ° horizontal field of view coverage
The nearest photography distance is 0.5m

Professional customized services

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Camera application field

Precision industrial testing: full range scanning of PCB boards,SMT placement machine component positioning, LCD screen defect detection.
Machine vision: AGV navigation wide-angle lens, robot obstacle avoidance system, stereo vision depth reconstruction.
Intelligent security: Indoor and outdoor security monitoring, no blind spots in elevator car coverage.
Intelligent access control: facial recognition, vehicle surround view system.
