Specifications
Brand Name :
HCVsight
Model Number :
HC-A152-1.7
Certification :
CE、RoHS、FCC
Place of Origin :
ShenZhen，China
MOQ :
50 pieces
Price :
US$31.39/50~199 pieces US$29.99/200~499 pieces US$28.69/500~999 pieces
Payment Terms :
T/T
Supply Ability :
100,000 pieces per month
Delivery Time :
2-3weeks
Packaging Details :
Anti-static bag in Paper box（110mmx93mm41mm）
Pcb Printing Ink :
black
Lens Type :
160°（Customizable）
Pixel :
2MP
Interface :
BNC
Working Voltage :
DC 3.3V
Signalic Range :
AHD
sensor :
1/2.8"
Audio :
support
Warranty period :
1 year warranty
Description

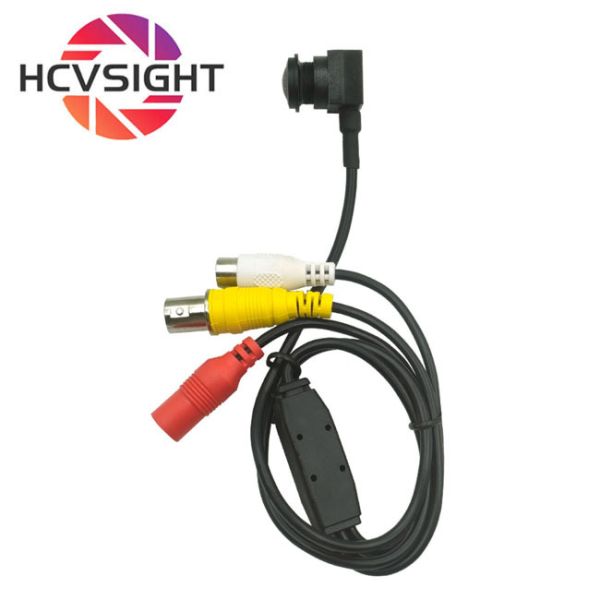

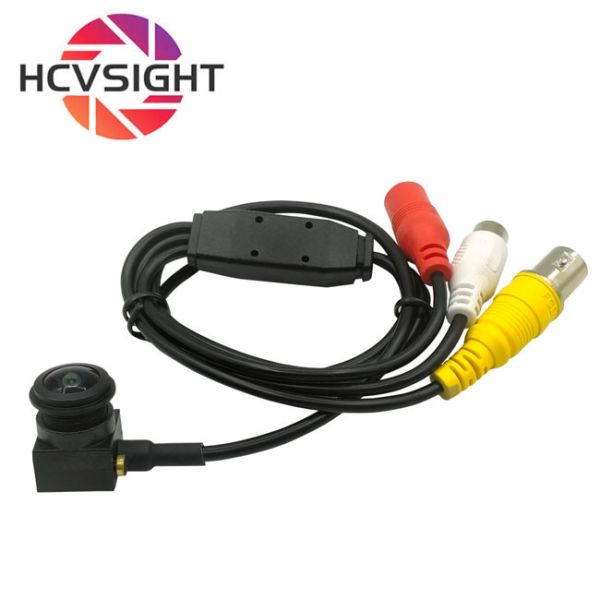

2MP Mini 15mm AHD Camera With 160 ° Fisheye 1080P Embedded Monitoring Camera
This 2MP Mini AHD camera features a 15×15mm ultra compact design, a 160 ° fisheye wide-angle lens, and 1080P high-definition imaging, designed specifically for indoor safety and embedded machine vision applications. As a professional manufacturer of closed-circuit television cameras and security cameras with 10 years of research and development experience, we have carefully crafted this mini surveillance camera to meet the strict requirements of ATM, vending machine, drone, and smart device integration, combined with high-end hardware, low power consumption, and global comprehensive customization support for B2B customers.
Technical Specifications
Sensor 1/2.8"
Pixel 2MP
Signal AHD
Frame rate 1920×1080 25fps
Audio Support
Operating voltage DC 3.3v
Product dimensions 15mm×15mm
White balance Automatic
Operating temperature <70°
Power consumption 0.25w
Model No HC-A152-1.7
Interface type BNC
Lens EFL:1.7mm
F.ON:2.0
Angle:D=160°
Key Features
  • True 1080P high-definition picture quality: using AHD high-definition technology, providing clear and sharp video images.
  • Ultimate mini body: 15x15mm ultra small size, flexible and concealed installation, almost occupying no space.
  • 160 ° ultra wide angle field of view: The 1.7mm fisheye lens provides a wide viewing angle, wider coverage range, and reduces blind spots.
  • Equipped with microphone: supports synchronous recording of ambient sound, enabling synchronous monitoring of audio and video.
  • Standard BNC interface: Compatible with traditional coaxial cable systems, making it easy to connect to existing analog monitoring equipment.
  • Strong compatibility: Supports AHD high-definition protocol and is compatible with mainstream AHD DVR recorders in the market.
Customization Services
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
  • Lens customization: specific focal length, field of view angle, distortion control.
  • Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
  • Cable and Interface: Customize cable length and interface type.
  • Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP,16MP).
  • Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.
Application Fields
Industrial automation, machine vision, security monitoring, embedded access control systems, concealed surveillance, vehicle monitoring, smart home security, endoscope imaging, laboratory monitoring, DVR systems, traffic monitoring, retail terminals, drone/robot vision, education/conference systems, and various embedded visual solutions.
