Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm
Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm
Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm
Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm
Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm
Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm
Specifications
Model Number :
SDT-3016
Certification :
SVHC, VOC, Antimicrobia, RoHS, CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800,000 ㎡ / year
Delivery Time :
8 - 12 work days
Packaging Details :
100 pcs / carton, 1,458 ㎡ / 20ft, 3,402 ㎡ / 40 hc
Material :
PP
Warranty :
5 years
Size :
300 * 300 * 15.8 mm
Weight :
300 g ( ± 5 g ) / pcs
Slip friction :
0.66
Ball rebound :
97%
Vertical demormation :
2.3 mm
Shock absorption :
54%
Description

Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm

SDT-3016 is full suspension design. It is like cutting cost reducing raw materials some people are not just like due to the false impression.

Key Benefits of Suspension Design

1) Prevent moisture from the ground.

2) Drainage system. It is safety play even rain though it is not recommended. No sweat risk players safety.

3) More flexible than solid. Our modular can be bent over 180 degrees or more.

4) Providing a better buffering than solid design. And more buffering if dedicated design modular understructure as we do.

5) Less light reflection than solid surface. Carved surface will swallow some light in our modular flooring.

6) Save the cost compare to solid design. Less materials are used in suspension structure.

7) Lighter brings more convenient in logistics such as loading and unloading.

Model SMG-3015 SDT-3016
Applications Futsal, basketball, running track, tennis, multiple function sports court and etc.
Pattern Intersected figure Double tier
Raw material PP
Certificates RoHS / CE / SVHC / VOC / Antimicrobial
ECT Yes. It is equipped with Elastic Cushion Technology (ECT)
Elastic cushion 533 pieces / ㎡
Surface Texture and matt Matt
Drainage system Yes. Water is drained away immediately, no ponding in surface
Physical feature Hard, low heat reflection, no peeling, no cracking, no dazzling, no smelly,
Chemical feature No harmful substance, anti-UV, antioxidation, anti-corrosion, fire retardant,
Function Shock absorption, noise reduction, traction, easy installation and dismantle, low maintenance, anti-slip, anti-wear
　
Size 303.8 mm * 303.8 mm * 14.7 mm 300 mm * 300 mm * 15.8 mm
Weight 330g (± 5) g 300g (± 5) g
Shock absorption 57% 54%
Ball rebound 97% 97%
Vertical deformation 2.4 mm 2.3 mm
Slip friction 0.54 0.66
　
Design

1), Cross structure in backside is designed for higher bear load capacity and better buffering. Pressure will be released averagely to the substrate.


2), TPE, one of the best elastic materials, supper flexible while non-deformation is used innovatively.


3), Safe guard with aerial material prevents modular floor stolen or blowed away. It keeps modular floor steady when flood.


4), Texture and matt surface treatment greatly improves the slip friction to reduce the risk of slip, comfortable to eyes, no dazzling.


5), Dull edges are designed to reduce the risk of injury if players fall.


6), 533 elastic cushions design inspired from NBA brings the best traction, shock absorption and denoise for professional sports performance.

1), Cross structure in the backside is for higher bear load capacity and better buffering.


2), New locking system with 2 mm extension joint ensure no bulging and no cracking.


3), Dull edges are designed to reduce the risk of injury if players fall.


4), 533 elastic cushions design inspired from NBA brings the best traction, shock absorption and denoise for professional sports performance.


5), Exclusive formulation with finnest raw material.


6), Flexible pillars ensure lock tightly.


7), Double tier pattern preven slippery
　
Packing 100 pcs / carton, 9.2 ㎡ / carton, 34 kg / carton, carton 650*650*380mm.
175 / 405 cartons / 20 ft / 40 hc
1,490 / 3,478 ㎡ / 20 ft / 40 hc		 100 pcs / carton, 9 ㎡ / carton, 31 kg / carton, carton 650*650*380mm.
175 / 405 cartons / 20 ft / 40 hc;
1,458 / 3,402 ㎡ / 20 ft / 40 hc

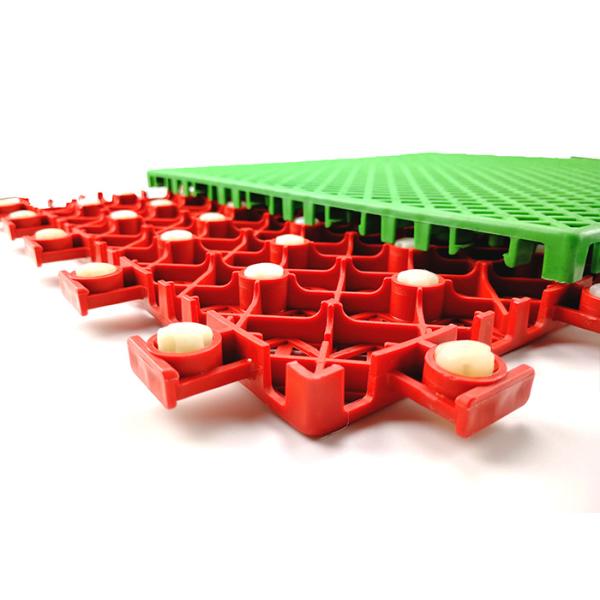

Product Picture

Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm

Color Options

Reversible Multi Purpose Flooring Low Heat Reflection 300mm * 300mm * 15.8mm

Contact for your professional sports court.
