C Type Escalator Handrail Polyurethane NT Handrai
C Type Escalator Handrail Polyurethane NT Handrai
C Type Escalator Handrail Polyurethane NT Handrai
C Type Escalator Handrail Polyurethane NT Handrai
C Type Escalator Handrail Polyurethane NT Handrai
C Type Escalator Handrail Polyurethane NT Handrai
Specifications
Brand Name :
Chinese brand/ joint venture brand
Model Number :
61c
Certification :
CNAS Type Test Certificate
Place of Origin :
China
MOQ :
50 m
Price :
CNY 220-260 per meter, FOB
Payment Terms :
T/T, L/C
Delivery Time :
10 working days
Packaging Details :
carton box 850x850x300mm or 850x850x550mm
Type :
C shape
Outer Width(W) :
76/80/82
Outer Height(H) :
28/31
Lip width(C) :
38/40/41
Material :
NT
Slidding Material :
nylon/polyester fibe
Color :
Black/ Various colors
Description

Escalator handrail, C type, polyurethane (NT) handrai, various colors handrail, brack/blue/grey for indoor / outdoor

Product description

The polyurethane (NT) handrail features: Adaptive handrail friction wheel drive and linear drive mechanism, glossy handrail surface with arbitrary color selection, super wear resistance, extraordinary service life, and considerably reduced sliding phenomena. Cleanness and convenience, bright surfaces as new, incomparable dimensional stability, stronger inner layer wear resistance and overall break strength. It does not "blister" from being squeezed too much.

C Type Escalator Handrail Polyurethane NT Handrai

NT handrail is suitable for escalator/moving walk for commecial and public application. It has black color and various color such as red, blue, gray, yellow suit customer demand.

There are three types of sliding layers inside the handrail of an escalatormoving walk that touches the handrail guide rail: nylon, polyester and cotton. The current use of polyester fabrics is widespread.

C Type Escalator Handrail Polyurethane NT Handrai C Type Escalator Handrail Polyurethane NT Handrai C Type Escalator Handrail Polyurethane NT Handrai

The NT handrail provides C type escalator handrail for indoor and outdoor application and the specification below.

C Type Escalator Handrail Polyurethane NT Handrai

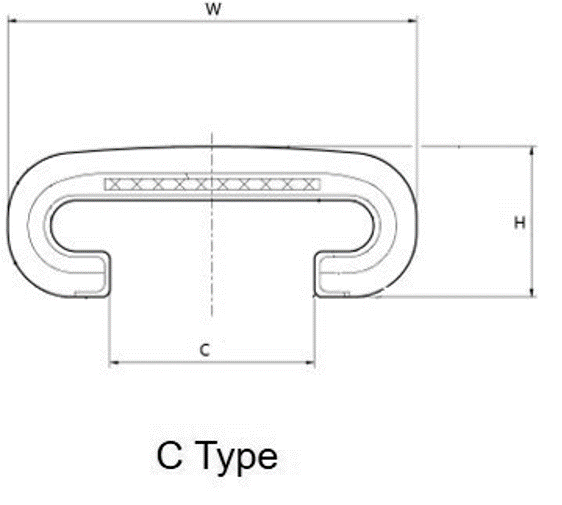

Handrail Critical Dimensions
Product Series

Handrail

Type

 Surface Material Outer Width
(W)		 Outer Heigh
(H)

Lip Width

(C)
CN7628 C NT 76 28 38
CN8028 C NT 80 28 40
CN8231 C NT 82 31 41

Performance parameter

Item Parameter Remarks
design life time 5-8 yeras
Length tolerance ≤±20mm L ≤ 30mm
≤±25mm 30m < L ≤ 100m
≤±0.03% L > 100m
Minimum positive bending radius ≤180mm
Minimum back bending radius ≤275mm
Elongation ≤0.1% F=2000N
Straightness ≤4mm F=1500N, L=2m
Breaking force ≥25KN
Lip strength ≥70N 40mm Width, Extend 7mm
Hardness 75±5A Shore
Slip coefficient ≤0.3 Between galvanized steel plate
≤0.3 Between stainless steel plate
≥0.6 Between traction wheel
Operating temperature -18～43℃ Nylon slinding layre

The client will need to choose the corresponding handrail type depending on your escalator or moving walk.

We kindly request our clients to provide us with any documents related to the escalator handrail, e.g. technical service reports, spare parts numbers of the handrail, drawings of the handrail profile, OEM part number, etc. These documents can considerably speed up an inquiry and clarify discrepancies.
