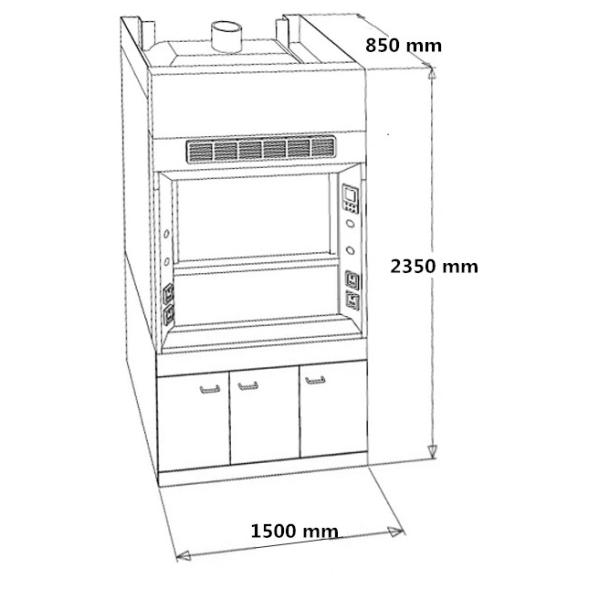

| Size(W*D*H) | 1200*850*2350 mm | 1500*850*2350 mm | 1800*850*2350 mm |
| Exhaust air volume | 1200-1800m³/h | 1500-2000m³/h | 1800-3000m³/h |

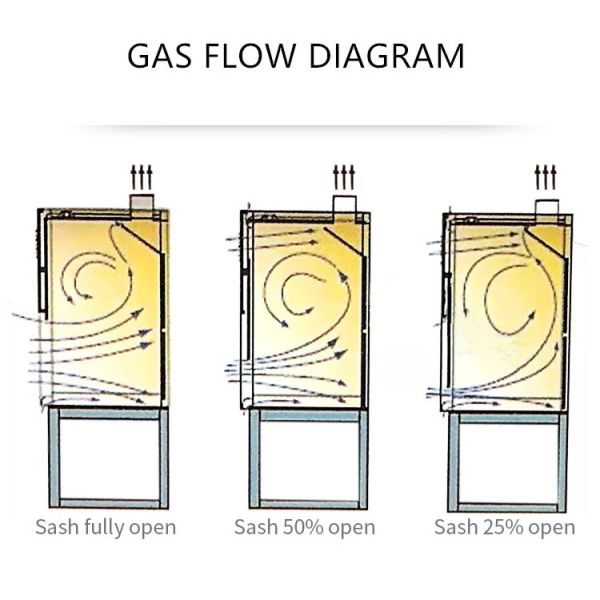

| Air Velocity | 0.4-0.8m/s |
| Noise | ≤48dB(A) |
| Sash | 6mm thickness tempered glass |
| Operation Table Board | Trespa panel / Epoxy resin / Stainless Steel / Ceramics /PP |
| Lighting equipment | Full Cover Type Three-way Lamp, Lamp Cover with 220v * 20w * 2 |
| Operation panel | Lighting Switch, ON/OFF Switch, Two Sets of 220V/10A Versatile Electric Socket |
| Ventilation equipment | Selecting rust-resistance, low wasting, low noise and famous fan and special wind tube. Noise can be reduced at about 55 DB . |
| Accessories | Cock: made by brass, the surface is treated by EPOXY baking paint; Cup slot:acid and alkali resistance, PP water cup |
| Sink | PP Sink, Epoxy Resin Sink, Stainless Steel Sink |





Advantage of Fume Hood:
1.It is safer to use anti-corrosive water tap.
2.Microprocessor control system, LED display.
3.With memory function in case of power-failure.
4.Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.
5.Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a
bright and open working environment.

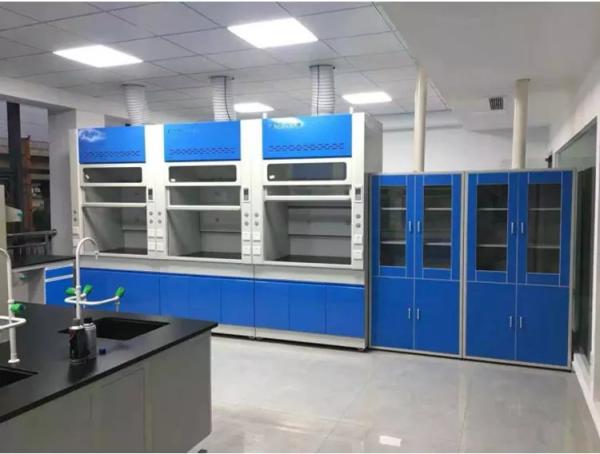

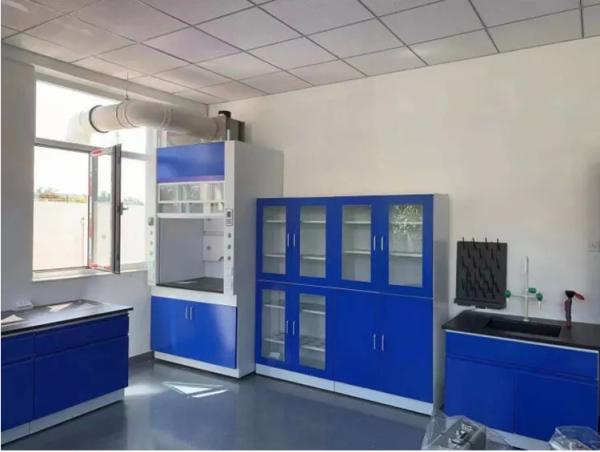

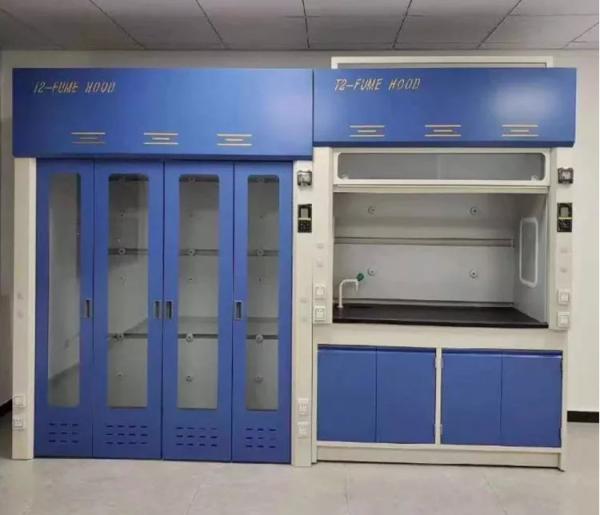

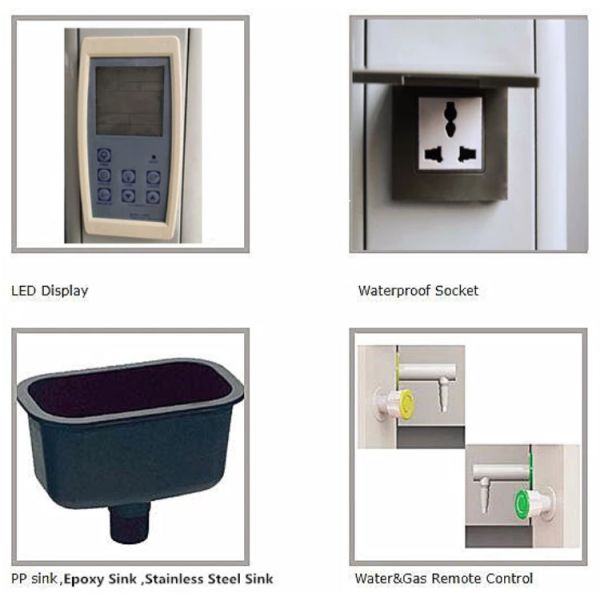

Detailed Images
