GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD
Specifications
Brand Name :
Recoda
Model Number :
M728
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
1
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Delivery Time :
For sample, 3-5days after receiving the payment. For bulk, depen
Packaging Details :
Carton package or as each customer required. Neutral packing.
System :
Linux
Video Input :
8CH D1 input, aviation connector, 1.0Vp-p, 75Ω
File Format :
H.264
Resolution :
1080P
3G/4G/WiFi :
Optional
Position :
Built-in high accurate GPS module(optional)
G-Sensor :
Support G-sensor
Storage :
Max 2.5” 2TB HDD + Max 128GB SD Card
Size :
218 (D)* 161(W)* 65(H) mm
Net Weight :
2.2 Kg
Description

8 Channel 1080P Car DVR GPS 4G WIFI Vehicle CCTV MDVR 2TB HDD Recording

Main Features

  • HIS Solution,H.264 Compression,support 8ch 1080P AHD input.
  • Hybrid DVR ,8 channel AHD input,CVI,TVI or CVBS optional
  • Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stablely and completely.
  • 10-36V wide voltage with low power consumption.
  • Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.HDD+SD Card Storage ( Support Max 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
  • Support HDD heating functions,can work in harsh environment.

Technical Specification

Item Parameter
System Linux
Language English/Chinese/Customized
File Format H.264 Compression
OSD Overlays information such as date time and vehicle ID
GUI Graphical User Interface Setup system parameters with the remote control.

Video Record

System

 Video Input

8CH AHD input,CVI,TVI or CVBS

aviation connector, 1.0Vp-p, 75Ω
Video Onput 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view
Preview

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview
Resolution 1080P/720P/D1/HD1/CIF, MAX:8 channels of 1080P
Image Quality 0-7 levels, 0 is the highest level.
Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

1080P:4Mbps-8Mbps,multi level video quality optional
Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.
Audio Audio Input 8CH Aviation Plug Input
Audio Output 2CH,headphone connect at front panel, BNC Connect on Back panel
Compression G.726 compression, 8KB/s speed
Alarm Input 6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface

2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection
1CH 485 Interface,Connect PTZ Camera
Wireless Transmission

Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE
GPS Position Support
HDD Max 2.5” 2TB HDD
Storage SD Card Max 128GB SD Card Mirror Recording Keep Data Safety
Update Support USB Updating, SD Card Updating,OTA Remote Updating
File Format H.264
File System Special FAT32 File System
USB USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay Video Search Search By Record Time/Record Type etc
Playback Max support 4CH Replay /Stop/Fast/Slow at same time
Support forward and backward play at the speed of: x 2,x4,x8,x16.
Security User/Admin 2 Level Different Password
Optional Functions Voice Call Support voice call each other
TTS Voice Broadcast Support TTS voice broadcast function.
Serial Expand

Support LED Advertisement Panel,Oil Sensor,

POS,Bus Station Broadcaster,Car OBD,ect.external device
Voltage & Power Power Management Wide Voltage.Support Timed/Delay off
Input Voltage DC:+10V - +36V
Output Voltage +12V~1.5A,+5V~1.5A
Power Working <5W
Working Environment Temperature -20℃ - +70℃
Humidity 20% - 80%
Ohters

Dimension

 218 (D)* 161(W)* 65(H) mm
Net Weight 2.2 Kg

Pictures

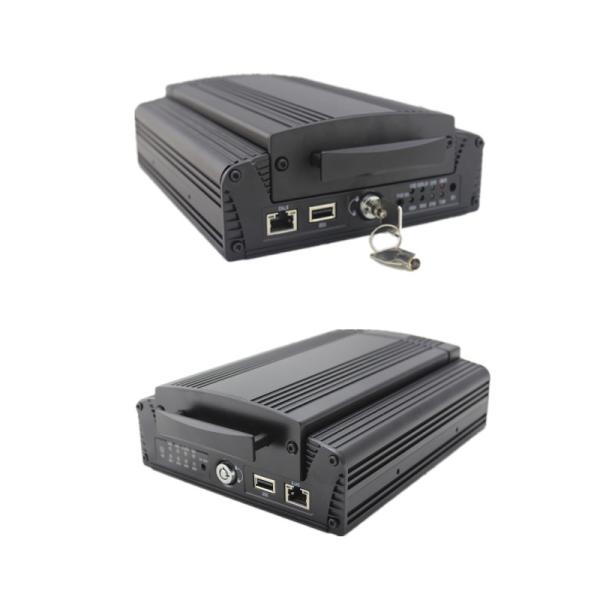

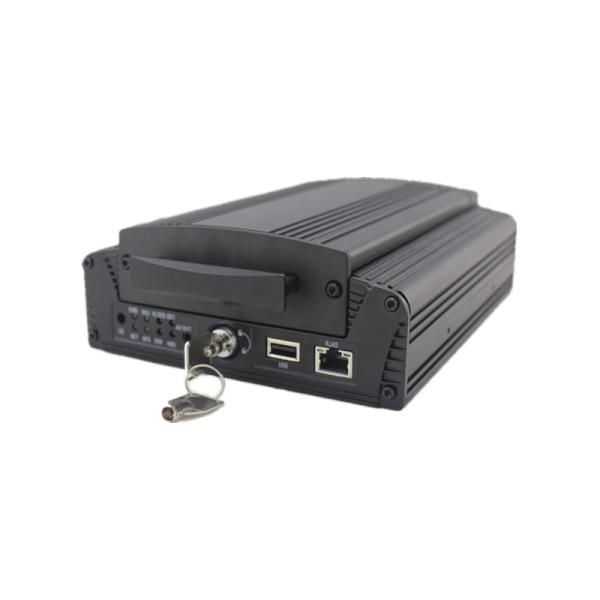

GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD

GPS 4G 8 Channel 1080P Car DVR WIFI Vehicle CCTV MDVR 2TB HDD

FAQ:
Q1. Do you offer free sample?
Yes, we offer free samples. But you would pay sample fee firstly and sample fee will be returned when massive order is placed.
Q2. How does you ensure the quality of products
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
Q3. Lead Time
1. Sample order can be delivered from our factory in 3 working days.
2. General order can be delivered from our factory in 3-5 working days.
3. Big order can be delivered from our factory in 15-35 working days at most.
Q4. Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us, reply will be sent to you immediately;
Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Any questions,please inquire us,thank you!
