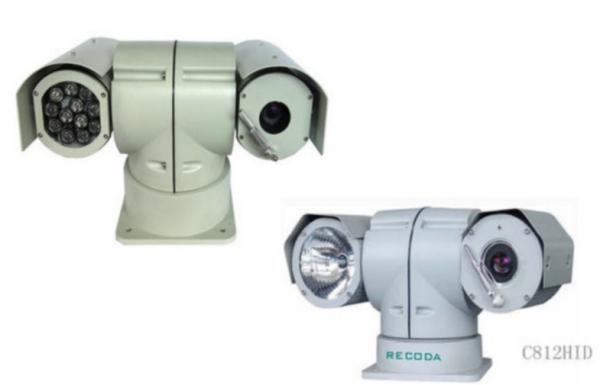

Night view car PTZ camera 480TVL , Shockproof vehicle mounted PTZ camera
Night view car PTZ camera 480TVL , Shockproof vehicle mounted PTZ camera
Specifications
Brand Name :
RECODA
Model Number :
C812HID vehicle PTZ camera With camera made in china with SONY 480CP 1-20 PCS
Certification :
CE/ROHS/FCC/UL
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000 pcs per month
Packaging Details :
Normal packageing, print customer logo in carton.
Image sensor :
1/4" IT EXVIEW HAD CCD
Picture Eiement :
752(H)x 582(V)
Effective pixel :
FCB-EX480C/CP
Synchronization System :
inter-sync
Vide output :
VBS 1.0Vp-p/75ohm
White Balance :
AUTO/MANUAL
Scanning systom :
15.625KHz(H) 50Hz(V)
Horizontal Resolution :
480TVL
S/N Ratio :
≥50dB
Electronic Shutter :
1/50~ 1/10,000s
Minimum lllumination :
0.07Lux
FOCUS LENTH: 12x Optical Zoom 18x Optical Zoom (Total) :
:216x) F=4.1~73.8 F1.4~F0.3; 2.8°~48°
Communication :
: RS485 Pelco-D, Pelco-P, Samsung,B01,A01,SAE,Kalatel and soon
Visttatorial track :
: 8
Self Learning function :
: 3
Horizontal angle :
: 360 No limitation
Description

● Image sensor: 1/4" IT EXVIEW HAD CCD
● Picture Eiement: 752(H)x 582(V)
● Effective pixel: FCB-EX480C/CP
● Synchronization System: inter-sync
● Vide output: VBS 1.0Vp-p/75ohm
● White Balance: AUTO/MANUAL
● Scanning systom: 15.625KHz(H) 50Hz(V)
● Horizontal Resolution: 480TVL
● S/N Ratio : ≥50dB
● Electronic Shutter: 1/50~ 1/10,000s
● Minimum lllumination: 0.07Lux
● FOCUS LENTH: 12x Optical Zoom 18x Optical Zoom (Total:216x) F=4.1~73.8 F1.4~F0.3; 2.8°~48°
● Communication: RS485 Pelco-D, Pelco-P, Samsung,B01,A01,SAE,Kalatel and soon
● Visttatorial track : 8
● Self Learning function: 3
● Horizontal angle : 360 No limitation.

Model: C812HID

* PTZ function

* 360°Horizontal free rotating; 180°Vertical rotating

* H 0.5~120 /s & V 0.5~110°/S Variable-speed rotating

* Built-in defrosting, constant temperature device for using in low temperature location

* Night vision 100-120m

* Waterproof feature for outdoor used

* specially for police transport vehicle/boat

* Shock absorber for option

* Present point: 255

* Screen menu Control: OSD

  • Waterproof:IP 67;

Sony 480CP, 980CP, 1010P and common 700TVL. C812 HID with Sony 1010P camera (36xoptical Zoom)

Item:

Image sensor:

Pixel:

Description:

1/4″IT EXVIEW HAD CCD:

PAL:440,000 pixels NTSC: 380,000 pixels

Synchronous System Internal synchronization

Video Output

White Balance

Scanning System

VBS 1.0vp-p/75 ohm

Auto/Manual

2:1 interlace

Horizontal Resolution 540 TVL

S/N Ratio

Electronic Shutter

Minimum Illumination

Focus

Communication

Visitatorial track

≥50dB

1/50~1/10,000S

1/60 s mode: 1.4 lx

(typical) (F1.6, 50 IRE)

1/4 s mode: 0.1 lx

(typical) (F1.6, 50 IRE)

36x optical zoom, 12X digital zoom

RS485,

PELCO-D/P,samsung,SAE,VISCA

8

Self-learning function Yes,30s

Horizontal angle
360°no limitation

Horizotal scan speed 0.5~120°/s

Vertical angel

Vertical scan speed

Preset point

IR LED

-90°~+90°

0.5~110°/s

255

15W, 810nm wave length, 6~15°

Laser&IR night vision 100-120m

Baud rate

View distance

Preset point setting

Power

Weight

waterproof level

operation

temperature

2400～19200

1000m(daytime)

PTZ specification

DC 12V about 55W

10KG

IP66

-35℃~+50℃

Note: The specifications are subject to change without prior notice.
