Security Inside Vehicle Mounted Cameras AHD 960P IR Reversing Car Dome Camera
Security Inside Vehicle Mounted Cameras AHD 960P IR Reversing Car Dome Camera
Security Inside Vehicle Mounted Cameras AHD 960P IR Reversing Car Dome Camera
Security Inside Vehicle Mounted Cameras AHD 960P IR Reversing Car Dome Camera
Specifications
Brand Name :
RECODA
Model Number :
C802-AHD
Certification :
CE / FC / ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per month
Delivery Time :
3-5days after receiving your payment
Packaging Details :
one pcs per box, fifty pcs per carton
Image Sensor :
1/4” CMOS Sensor AR0130
Resolution :
1.0 / 1.3 / 2.0 Mpixels
IR LED :
15pcs
IR LED Range :
10M
Lens :
Standard 3.6mm
Input Voltage :
DC12V±10% 110mA
Weight :
105g
Dimension :
54 x48mm
Price :
negotiation
Description

Security Inside Car AHD 960P IR Night Vision Reversing Dome Mounted Camera ( C802-AHD )

Features:

  1. Compact profile surveillance dome for indoor applications , it monitor everything happen in the vehicle;
  2. Resolution: 1.0 / 1.3 / 2.0 Mega;
  3. High sensitivity in dark environment, 0.1lux / F2.0, 0 lux (IR ON);
  4. Day and night features for 24-hours surveillance;
  5. IR distance: Up to 10 meters with 15pcs LED.

Specifications:

Model NO C802-AHD ( 1MP ) C802-AHD ( 1.3MP ) C802-AHD ( 2MP )
Type Dome in car camera
Image Sensor 1/4” CMOS Sensor AR0130 1/3”CMOS Sensor AR0130 1/2.9” CMOS Sensor SONY322
TV System PAL/NTSC
Effective pixels 1MP 1.3MP 2MP
Picture Elements 1280(H)*720(V) 1280(H)*960(V) 1920H x 1080 V
S/N Ratio More Than 44 dB More Than 44 dB More than 50 dB
Infrared Spectrum 850nm N/A 850nm or 940 nm
White Balance Auto
Infrared LED 15 LEDS
Infrared LED Range 10M
Lens Standard f3.6mm Fixed Megapixel Lens
Pan Adjusting N/A
Tilt Adjusting 0-62 Degree
Input Voltage DC12V±10% 110mA
Weight 105g
Dimension 54 x48mm
Video Output AHD 1 Vp-p, P 75Ω
Operating Temp -25°C to +60°C

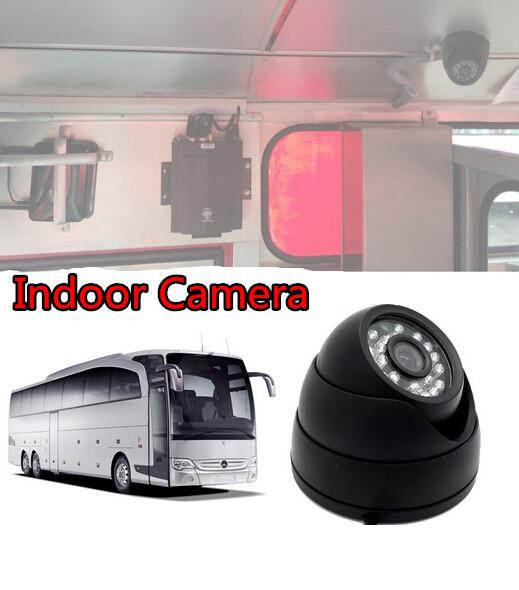

Product's Image:

Security Inside Vehicle Mounted Cameras AHD 960P IR Reversing Car Dome Camera

Applications:

Security Inside Vehicle Mounted Cameras AHD 960P IR Reversing Car Dome Camera

Security Inside Vehicle Mounted Cameras AHD 960P IR Reversing Car Dome Camera
