IR HD CCTV Infrared Vehicle Camera , AHD Surveillance Vandal Proof Car Mounted Camera
IR HD CCTV Infrared Vehicle Camera , AHD Surveillance Vandal Proof Car Mounted Camera
Specifications
Brand Name :
RECODA
Model Number :
C807 - AHD
Certification :
CE/FCC/ROHS
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000pcs per month
Delivery Time :
3 working days after payment confirmation
Packaging Details :
Normal and standard exporting carton packageing, 1 pc per inner carton.
Image Sensor :
1/3” CMOS Sensor AR0130
IR LED :
10 LEDs with 850nm
Horizontal Resolution :
1.3 Megapixels / 2.0 Megapixels
Infrared range :
5M
Weatherproof :
IP68
Weight :
200g
Size :
77 x 60.3 mm
Price :
negotiation
Description

Metal Case AHD surveillance Vandal-proof IR HD CCTV Vehicle Mounted Dome Camera

Features:

  • Metal-cased IP68 weatherproof micro dome with fixed lens.
  • Low power consumption.
  • Easy installation on ceiling or wall, surface or flush mount.
  • 10 Infrared LEDs. 5M IR Range
  • 1.3MP, 2MP Optional

Specifications:

Model

 C807-AHD ( 2MP ) C807-AHD ( 1.3MP )
Type Metal infrared dome camera
Image Sensor 1/2.8 Sony IMX222 1/3” CMOS Sensor AR0130
TV System PAL/NTSC(OPTIOAL)
Picture Elements 1920H x 1080 V 1280(H)*960(V)
Sensitivity 0 Lux (LED on)
Scanning System progressive scan RGB CMOS
Synchronization Internal
Infrared Spectrum 850nm or 940 nm 850nm
S/N Ratio More than 50 dB, (AGC Off) More Than 44 dB, (AGC Off)
Auto Gain Control (AGC) Auto
White Balance Auto
Electronic Shutter Auto
Back Light Compensation Auto
Infrared LED 10LEDs
Infrared LED Range 5 Meters
Video Output AHD 1 Vp-p, 75Ω,
Audio Output N/A
Mirror N/A
Gamma Ratio 0.45
Auto-iris Lens Control N/A
Lens f3.6mm Megapixel
Exterior Focus Adjustment N/A
View Angle 90° (D)
Pan Adjusting +/-180 Degree
Tilt Adjusting 0-62 Degree
Power Supply 12V DC (9V~18V)
Power Consumption 150 mA
Dimensions (ø X H) 77 x 60.3 mm
Net Weight 200 g
Weatherproof/Water Proof Weatherproof (IP68 for top side)
Operating Temperature -25°C to +60°C

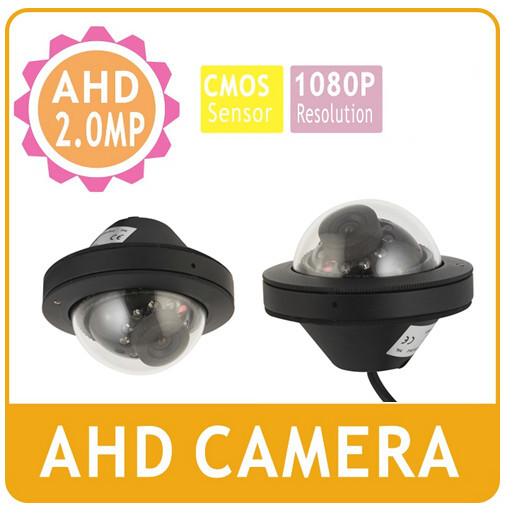

Product Pictures:

IR HD CCTV Infrared Vehicle Camera , AHD Surveillance Vandal Proof Car Mounted Camera

AHD Camera Advantages:

IR HD CCTV Infrared Vehicle Camera , AHD Surveillance Vandal Proof Car Mounted Camera
