Universal Reversing Wireless Hidden Camera Waterproof Rear View Back Up
Universal Reversing Wireless Hidden Camera Waterproof Rear View Back Up
Universal Reversing Wireless Hidden Camera Waterproof Rear View Back Up
Universal Reversing Wireless Hidden Camera Waterproof Rear View Back Up
Specifications
Brand Name :
RECODA
Model Number :
CR01
Certification :
CE, FCC, ROHS
Place of Origin :
Shenzhen, China
MOQ :
3 Pieces
Payment Terms :
Western Union, T/T, D/A, D/P, Paypal
Supply Ability :
2000 pieces per months
Delivery Time :
within 3~7 working days after payment
Packaging Details :
1 piece in a small giftbox, 50 pieces packed in 1 CTN
Sensor :
CMOS
TV system :
PAL / NTSC
Waterproof :
IP67
storage temperature :
-40°C -- + 80°C, RH95% Max
Working temperature :
-30°C -- + 70°C, RH95% Max
Type :
Reverse Camera, rear view camera
Price :
negotiation
Description

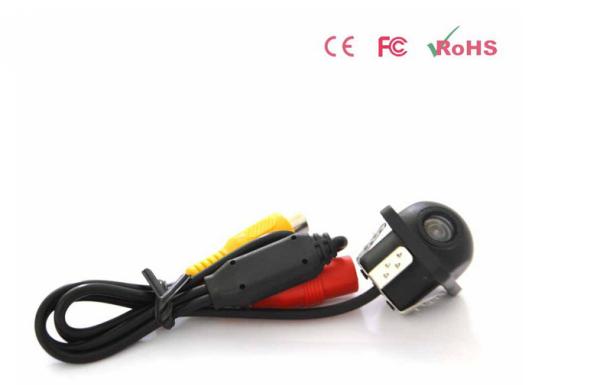

Universal Waterproof Rear View / back up reversing mini hidden camera in cars

Main Features :

Rear view / back up reversing mini hidden camera

  1. 170 Degree wide viewing angle
  2. Die cast Metal housing
  3. Small and compact design
  4. Completely waterproof housing
  5. Metal anti-theft bracket
  6. Simple installation for installers
  7. Low light sensitivity fo 0.5 Lux
  8. Reverse image
  9. Color: Black
  10. Requires a 12V DC power supply

Model No: CR01

Images:

Universal Reversing Wireless Hidden Camera Waterproof Rear View Back Up

Universal Reversing Wireless Hidden Camera Waterproof Rear View Back Up

Specifications:

TV System PAL / NTSC
Image area 5.961mm X 4.276mm
Effective Pixels P:6289(H)*586(V) N:656(H)*462(V)
Horizontal Resolution 420 TV lines
Lens Angle 1.8mm 170°
Waterproof Rating IP 67-IP68
Minimum Illumination 0.2 LUX
Electronic Shutter Time 1/50(1/60)-1/100,000 Second
Scanning System 2:1 interlace
Sync System Internal
S/N Ratio >48 dbV
Video output 1.0VP-P 75 0hm
Power Source DC12V+—10%
Universal Waterproof Rear View / back up reversing mini hidden camera in cars
Universal Reversing Wireless Hidden Camera Waterproof Rear View Back Up
Installation of rear view mini hidden camera :

Use the hole driller to mount the camera at the back of the car (on the license plate back, window or other suitable place)

  • Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

  • Connect the video cable of the camera to the extension cord.

  • Connect the extension cord to your car monitor.

  • You will see the images when your car is in reverse shift.

  • NOTE: it can support NTSC and PAL system!
