Commercial Grade Infrared Camera High Definition Vehicle Mounted Camera
Commercial Grade Infrared Camera High Definition Vehicle Mounted Camera
Commercial Grade Infrared Camera High Definition Vehicle Mounted Camera
Commercial Grade Infrared Camera High Definition Vehicle Mounted Camera
Commercial Grade Infrared Camera High Definition Vehicle Mounted Camera
Commercial Grade Infrared Camera High Definition Vehicle Mounted Camera
Specifications
Brand Name :
Recoda
Model Number :
CM04 AHD
Certification :
CE, ROHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs/ month
Delivery Time :
3-5 working days
Packaging Details :
Standard carton
Image Device :
CMOS senser
Resolution :
960H
IR Distance :
15M
Connecting Line :
DC JACK
Size :
L32.5XW30.5XH14.5(mm)
Lens :
3.6mm
Price :
negotiation
Description

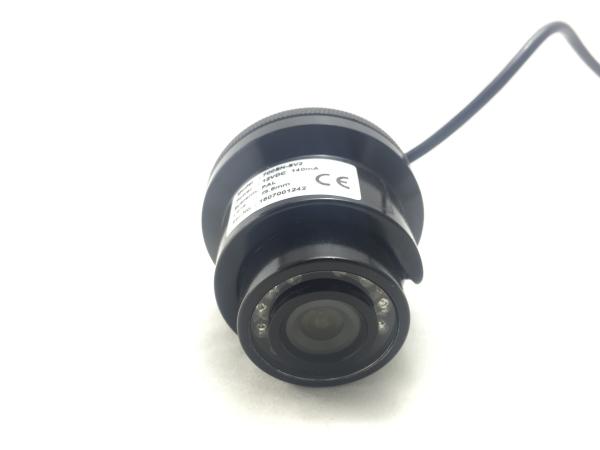

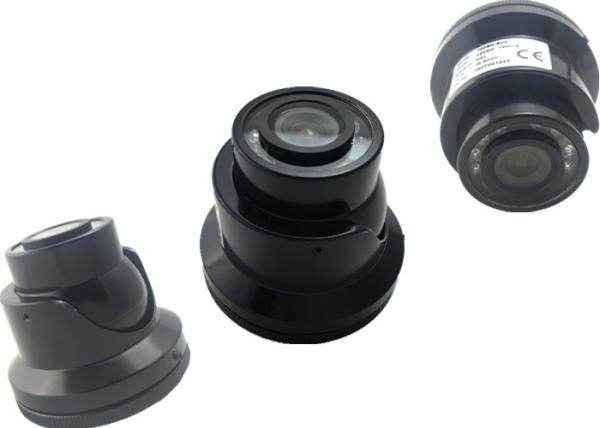

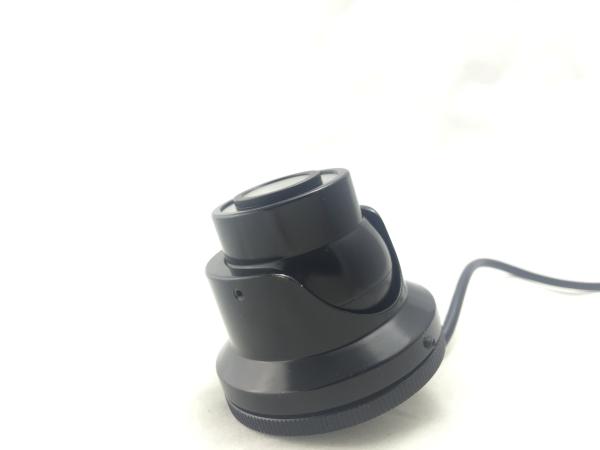

Metal Vehicle Security Camera System 15M IR Night Car Mounted Cam

Features:

● Metal-cased mobile box with fixed lens.

● Available in black finish.

● Low power consumption.

● Easy installation on ceiling or wall, surface or flush mount.

● IP66 waterproof.

Operation procedures:

1. Loosen the lock screws (3), remove the mounting base (1) by rotating clockwise the locking cover (2).

2. Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws (5).

3. Connect the cable to 12VDC power source and Video output, when picture shown up on the monitor.

4. Make the ball camera (4) to the suitable position.

5. Fix the ball camera by rotating anti-clockwise locking cover (2) then lock the screw (3)

Specifications:

Model CM04-AHD
Pick up Device 1/3” SONY IMX238
TV System PAL/NTSC(OPTIONAL)
Effective Pixel 1280Hx960V
Sensitivity 0 lux (IR LEDs On)
Scanning System progressive scan RGB CMOS
Synchronization Internal
Infrared Spectrum 850nm or 940nm
S/N Ratio More than 50dB(AGC Off)
Noise Redution 3D
Auto Gain Control (AGC) Auto
Electronic Shutter Auto
Back Light Compensation Auto
Infrared LED 12 LEDs
Infrared LED Range 5m
Video Output AHD 1 Vp-p, P 75Ω
Gamma Ratio 0.45
Lens f3.6mm Megapixel
Pan Adjusting N/A
Tilt Adjusting 0-62 Degree
Power Supply 12V DC ±10%
Power Consumption 110mA
Dimensions (ø X H) 54 x48mm
Net Weight 109g
Weatherproof/Water Proof IP66
Operating Temperature -20°C to +65°C
