Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof
Specifications
Brand Name :
RECODA
Model Number :
CM03
Certification :
CE / FC / ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs/month
Delivery Time :
3-5 days after receiving your payment
Packaging Details :
one pcs per box, fifty pcs per carton
Type :
Reverse Camera
Images Sensors :
SONY CCD
TV System :
PAL/NTSC
Lens Angle(Deg.) :
90~120
Lens :
2.8/3.6/6.0mm optional
Ip rating :
IP68
Effective Pixels :
512 x 582 pixels / 512 x 492 pixels
Resolution :
420TVL/480TVL/600TVL/700TVL optional
Dimensions :
83 (L) × 60 (w) × 55 (H) mm
N. G: :
250g
Power Supply(DCV) :
12V DC
Warranty :
12 Months
Car Make :
Truck,bus,trailer,tracktor......
Price :
negotiation
Description

Sony CCD 700 TVL Metal housing Side wide / front view Car Reversing Camera:

Main Features:

Model CM03
Type Reae View / Side View Camera
Sensor 1/3 SONY CCD
Resolution 420TVL/480TVL/600TVL/700TVL optional
Lens 2.8/3.6/6.0mm optional
Infrared LED light 9 PCS
IR Distance 10 m
Waterproof Rate IP68
View angle 120°
Dimensions 83 (L) × 60 (w) × 55 (H) mm
N. G 250g

Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof

Specifications:

1. TV System: PAL/ NTSC
2. Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
3. Sensing Area: 3.6mm x 2.7mm
4. Scanning System: 2: 1Interlace
5. Horizontal Sync. Frequency: 15.625 kHz / 15.734kHz
6. Vertical Sync. Frequency: 50Hz / 60Hz
7. Minimum Illumination: 0Lux (Infrared lamps on) 0.1Lux(day) / F1.2
8. Video Output: with BNC and 4 pin connector optional
9. S/N Ratio: Better than 48dB

10. Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10, 000 Seconds

Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof

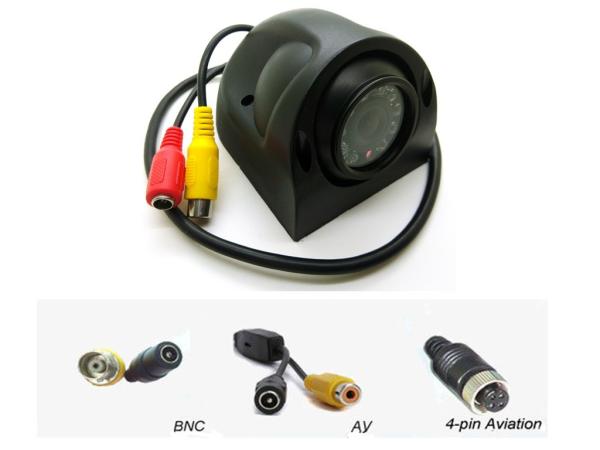

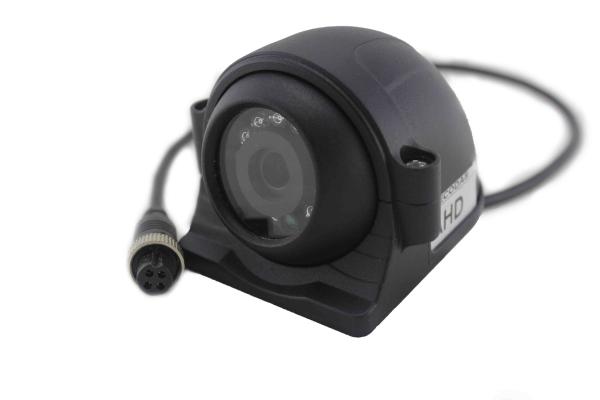

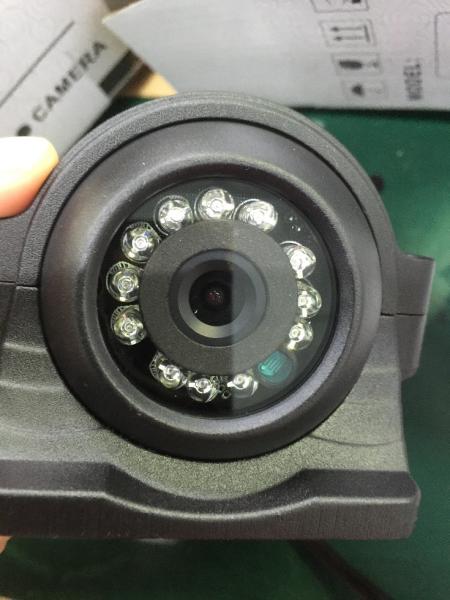

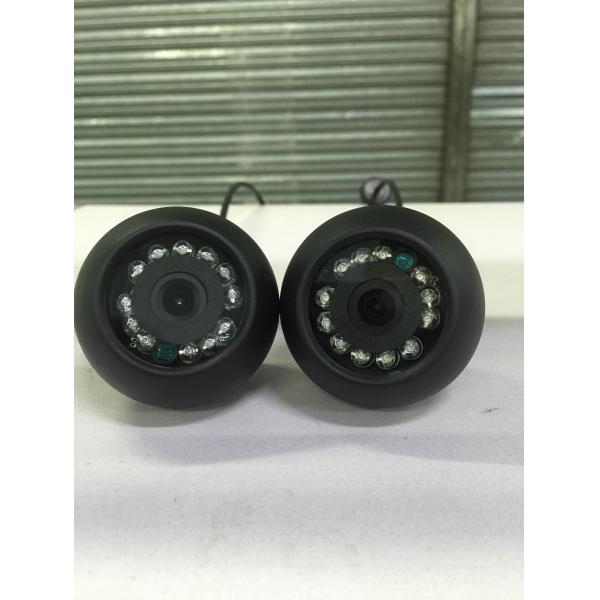

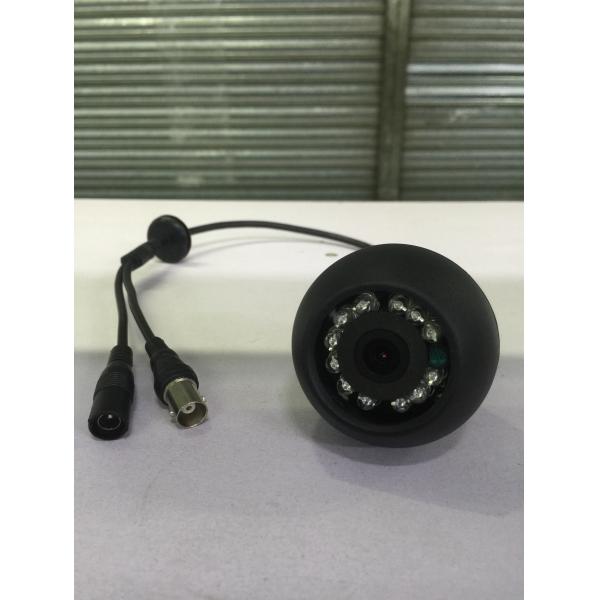

Product's Pictures:

Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof

Dimension Diagram:

Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof

Packageing:

Sony CCD 700 TVL Car Reversing Camera IP68 Black Parking WaterproofSony CCD 700 TVL Car Reversing Camera IP68 Black Parking WaterproofSony CCD 700 TVL Car Reversing Camera IP68 Black Parking Waterproof

CM03 Packing List

Number

Parts name

Count

Remarks

1

CM03 Camera

1

2

self-tapping screw

4

4

Expansion of plastic pipe

4
