School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR
School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR
School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR
School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR
School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR
School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR
Specifications
Brand Name :
RECODA
Model Number :
M610AHD
Certification :
CE / FC / ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pc per month
Delivery Time :
3-5days after receiving your payment
Packaging Details :
one pcs per box, eight pcs per carton
Operation System :
Linux
Video Resolution :
720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
Video/Audio input :
4 Ch 720P input
Video/Audio output :
2 Ch
Alarm input :
6Ch
Alarm output :
2Ch
Storage :
Support 2pcs SD Card, eatch card 128GB
Audio Compression Format :
G.726 Coding
Optional Functions :
3G / 4G, WIFI, GPS, IP Calling, Dialing
Dimensions :
150(W) x57(H) x168(D) mm
Weight :
2KG
Price :
negotiation
Description

School Bus 4Cameras Car DVR 4G GPS 720P MDVR With Free Mobile Phone APP

Product Description:

1. 4 Channels 720P at realtime(100fps/ 120fps)

2. Built-in GPS for location tracking

3. Built-in 3G/4G for live view and remote management

4. Internal WIFI 802.11N supported for all the regular video files and alarm files download

5. H.264 video compression

6. Patented FS 3.0 file system for data reliability and datarecovery

7. Supports 2PCS 128GB SD card recording

8. Built-in capacitor provides MDVR with enough time to packthe files to avoid any video files loss when the externalpower is cut off suddenly

9. Pre-recording maximum 60 minutes

Specifications:

Model M610AHD
System
OS Linux
Language Chinese/English/Customized
Video
Video Input 4CH 720P AHD input, aviation connector, 1.0Vp-p, 75Ω
Video Output 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen
Video Compression H.264
Video Quality 1-4 levels, 1 is the highest level.
Video Standard PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
Audio
Audio Input / Output 4CH ,Aviation Plug, 2 CH,Aviation Plug
Audio Compression G.726 compression, 8KB/s speed
Display
OSD Overlays information such as date time and vehicle ID
Preview

Support 1 channel and 4 channels preview, Support Manual

/Alarm Trigger full screen preview
Recording
Resolution

720P/D1/HD1/CIF, MAX:4 channels of 720P

and 4 channels of D1
Record Mode The default setting is auto recording after power on.Timed recording, Alarm trigger recording and manual recording are supported.
Alarm
Alarm Input 6Ch Alarm Input, 2CH Alarm Output
Playback
Search Mode Search By Record Time/Record Type etc
Playback Speed

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.
Network
Ethernet RJ-45 port (10/100M)
3G/4G/WiFi Optional
GPS Built-in high accurate GPS module(optional)
G-Sensor Support G-sensor
Storage
SD Card Dual SD Card, each max 128GB SD Card loop recording
Auxiliary Interface
USB 1 Port , USB 2.0
RS485 1 Port, For PTZ control
RS232 2 Ports, For Temperature Sensor, Fuel Sensor ect
General
Voltage Input DC:+10V ~ +36V
Voltage Output +12V@2.5A,+5V@2.5A
Power Consumption Normal Working ＜5W
Power Management Wide Voltage. Support Timed/Delay off
Temperature -20℃ to +70℃
Humidity 20% to 80%
Size 150(W) x57(H) x168(D) mm
Net Weight 2kg

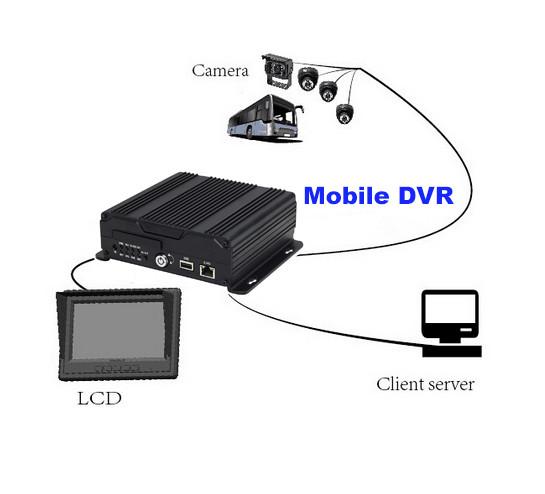

System Diagram:

School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR

Display:

School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR

Remote lMonitoring:

School Bus 4 Cameras vehicle video recorder With Free Mobile Phone APP , 4G GPS 720P MDVR
