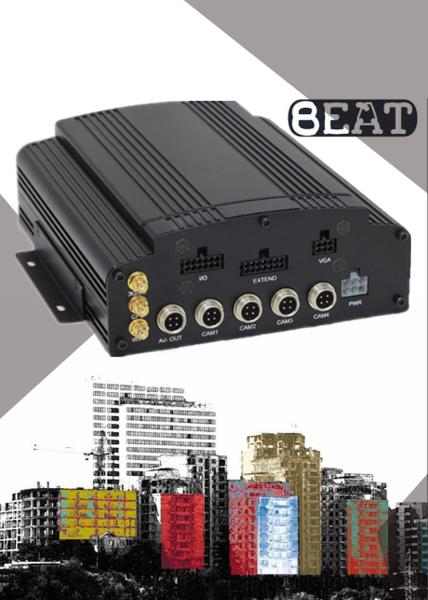

Truck Hybrid HDD 4 Camera Vehicle DVR 720P Support 3/4G WIFI GPS Function
Truck Hybrid HDD 4 Camera Vehicle DVR 720P Support 3/4G WIFI GPS Function
Specifications
Brand Name :
Recoda
Model Number :
M720
Certification :
CE, ROHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs / month
Delivery Time :
3-5 working days
Packaging Details :
Packaging detail: One piece mobile dvr to one box, ten pieces mobile dvr to one carton
Price :
negotiation
Type :
Hard DIsk 1080P mobile DVR
Storage :
Support 2TB + 128G SD Card
Channel :
4CH
Video Compression :
H.264
Resolution :
1080/720P/D1/HD1/CIF, MAX:4 channels of 1080P
application :
truck
Description

Hybrid HDD 4 Camera Car DVR 1080p/720P support 3/4G WIFI GPS G-sensor function for truck

Car DVR Applications:
Buses, Coach, Logistic Trucks, Tractors, Police Cars, Taxi
Armored cars, Public security and law enforcement vehicles
Ambulances, Traffic duty vehicles and other fields.

MDVR Specification:

Item Parameter
OS Linux
Language English/Chinese/Customized
Video Compression H.264 Compression
OSD Overlays information such as date time and vehicle ID
GUI Graphical User Interface Setup system parameters with the remote control.

Video Record

System

 Video Input

4CH AHD input,CVI,TVI or CVBS

aviation connector, 1.0Vp-p, 75Ω
Video Onput 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view
Preview

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview
Resolution 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P
Image Quality 0-7 levels, 0 is the highest level.
Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

1080P:4Mbps-8Mbps,multi level video quality optional
Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.
Audio Audio Input 4CH Aviation Plug Input
Audio Output 2CH,headphone connect at front panel, BNC Connect on Back panel
Compression G.726 compression, 8KB/s speed
