Real time Monitoring Car GPS Tracking SD Card Mobile DVR 3G / WIFI
Real time Monitoring Car GPS Tracking SD Card Mobile DVR 3G / WIFI
Real time Monitoring Car GPS Tracking SD Card Mobile DVR 3G / WIFI
Real time Monitoring Car GPS Tracking SD Card Mobile DVR 3G / WIFI
Specifications
Brand Name :
RECODA
Model Number :
M604
Certification :
CE , FCC , ISO2008
Place of Origin :
Guangdong , China
MOQ :
1 Units
Payment Terms :
T/T, Western Union , Paypal , L/C
Supply Ability :
1,200 Units per month
Delivery Time :
3 ~ 8 work days
Video / Audio Input :
4 channels
Image Compression :
h.264
Signal system :
PAL / NTSC
Video Output :
1 channel
Intercom :
2 way intercom support
Local storage :
2 Pieces SD card 64GB (MAX)
Reserved Interface :
RS232 / RS485, RJ45
Features: :
3G , WIFI Module optional
Price :
negotiation
Description

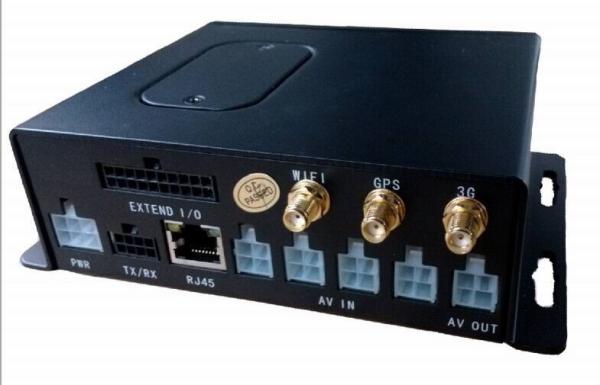

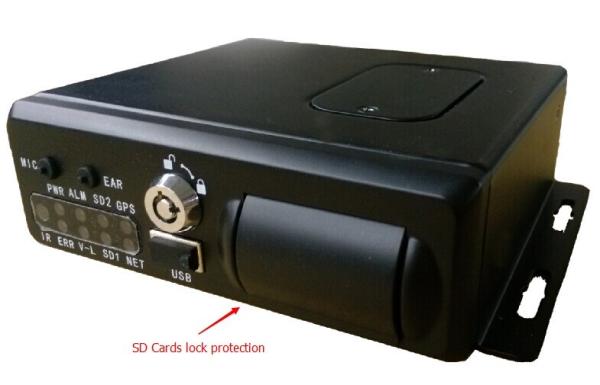

h.264 4ch 3G / WIFI real time Monitoring Car GPS Tracking SD Card Mobile DVR

FEATURES:

  1. H.264 main profile Video compression format, Support 1 to 4 channels video input.
  2. Industrial grade design, adopt most industrial materials including the industrial connectors special for mobile dvr.
  3. Built-in GPS, WIFI, G sensor, Gyro sensor optional. which wifi support 5 ghz and 2.4 ghz.
  4. 2 SD Card slots optional,VOIP
  5. Built-in wireless module like 3G (EVDO, WCDMA,HSPA, HSDPA, TD-SCDMA…), GPRS…optional.
  6. Real time recording, 100f/s (PAL), 120f/s (NTSC). maximum support 2CH of D1 & 2CH of CIF .
  7. 8-36V wide voltage supply design, Very good anti-vibration

Description:

  • Support 4CH Video. CIF,4CIF,QCIF resolution up to CIF 100FPS.
  • It shows vehicle speed, bracking signal, time, date, license plate number and other data in the video.
  • Built in GPS, 3G, WIFI wireless communication module, which achieve global positioning and real-time transmission video.
  • It can be installed an externall GPS Tracker. Capturing images by GPS platfform can reduce communication costs.
  • H.264 encoding formt. Good compression, clear images.
  • Variety of video backups: USB interface, network interface, WIFI, etc. It is easy to read the content.
  • Support all kinds of alarms: equipment malfunction alarm, high and low speed alarm, manual button alarm and so on.
  • Mini size is easy to be installed, which is suitable for all kinds of vehicles.
  • Using air plugs to connect external cables ensures the devices stability
  • The System is highly integrated with industrial grade components, which can adapt to interior environment.

Specification:

Operating System Linux

Graphics Operation

Interface

System parameters can be set through external display

and remote controller

Security Management

2-level management user password, administrator password, support

encrypted transmission
Video and Preview Input 4-channel video input
Output 1channel video output; 1.0Vp-p, 75Ω
OSD

Character superposition function, superposition

of time and date,device ID and
GPS, etc.
Compression H.264. Hisilicon hi-performance processor.
Dual-Stream Supported
Display 1/4/6/8/9/16/25/36/100 channels
Frame Rate

PAL: 100FPS, up to 25FPS/CH; NTSC: 120 FPS,

up to 30 FPS/CH
Resolution

CIF, HD1 &D1 for option, supporting

2CH D1+ 2CHCIF
Quality Grade 1~ grade 5 for option
Audio Input&Output 4CHl input, 1CH output
Compression G.726 coding
Intercom 2 way live intercom supported
Recording Storage 2PCS SD cards, Max 128GB, with cycle recording.
File System ASF/FAT32
Video Strategies

Default record by startup, time recording&recording

triggered by alarm &

manual recording optional
Video Search by time, type, storage device and other conditions
Alarm Input/ Output 4-CH on/off signal alarm input, 1-CH on/off alarm output
Alarm Recording

Prerecording15S before alarm, duration of recording

upon alarm is optional from 30s ~ 30min
Storage Space Alarm Supporting alarm for storage space
Interface RS232/485, RJ45
Network Embedded Wi-Fi module;
GPS Support external GPS
3G WCDMA/EVDO
PTZ Control Support PTZ control realized by local
G-Sensor Embedded
Power Power Supply

1. ACC on/off2. Hard drive lock on/off3. Delayed

shutdown 4. Timed on/off
Input Voltage DC:+8V ~ +36V
Output Voltage +12V 4*0.5A; +5V 0.5A
Power-off Protection

With patented UPS power supply technology for 3~5S recording upon sudden

power cut to ensure data safety
Power Consumption <10W in normal operation; <0.5W in standby mode

h.264 4ch 3G / WIFI real time Monitoring Car GPS Tracking SD Card Mobile DVR
