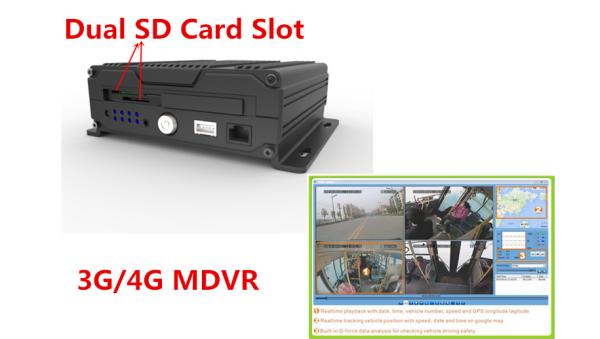

4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
Specifications
Brand Name :
RECODA
Model Number :
M610
Certification :
CE / FC / ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-5days after receiving your payment
Packaging Details :
one pcs per box, eight pcs per carton
Price :
negotiation
Resolution :
720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
OS :
Linux
Video Compression :
H.264
Voltage :
10-36V
Storage :
Dual SD Card Support, each max 128GB
Alarm :
3CH Alarm input, 1CH Alarm Output
Description

4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI

Main Features:

1. H.264 Video Compression,Support 4CH 720P AHD Camera input;
2. Exclusive pre-allocated file system, solve the file fragmentation / SD lost / file garbled etc issue,protect data file;
3. 10-36V Wide Voltage, Lower power consumption;
4. SD Card Storage ( Dual SD Card, each max 128GB ),
5. Support 3G/4G GPS WIFI, GPS/BD/G-sensor module;
6. High vibration Aviation plug.



Specifications:

Item

Parameter

OS

Linux

Language

Chinese/English/Customized

Video Compression

H.264

Video Record System

Video Input

4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω

Video Output

1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen

Preview

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1

Video Quality

1-4 levels, 1 is the highest level.

Record Mode

The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.

Audio

Audio Input/Output

4CH ,Aviation Plug, 1CH,Aviation Plug

Compression

G.726 compression, 8KB/s speed

Alarm Input/Output

3Ch Alarm Input, kinds of alarm linkage support, 1CH Alarm Output

Position

Support Built GPS/BD Module

G-Sensor

Support G-sensor

Storage

SD

Dual SD Card,each max 128GB SD Card loop recording

Upgrade

Support SD Card updating

File Format

H.264

File System

Special FAT32 File System

Video Playback

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Voltage Input

DC:+10V ~ +36V

Voltage Output

+12V@2.5A,+5V@2.5A

Power Consumption

Normal Working ＜5W

others

Size

112(W) x36(H) x138(D) mm

Net Weight

360g
Product Pictures:
4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
4 Channel Full HD 256GB SD Card AHD Mobile DVR Built In GPS 3G 4G WIFI
