4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog
4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog
4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog
4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog
Specifications
Brand Name :
RECODA
Model Number :
M710
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Unit
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal, D/A, D/P, L/C
Supply Ability :
2000 units per month
Delivery Time :
5~8 work days
Packaging Details :
In Neutral Brown Box
Type :
AHD mobile dvr
Resolution :
AHD 720P
Video Compression :
H.264
Storage :
HDD + SD Card
Video / Audio output :
1 channel
Alarm Input :
6CH
Remote Monitoring :
3G / 4G network
Mirror Recording :
Yes
Description

4CH HDD & SD Card Mirror Records 4G GPS WIFI G-SENSOR 720P Analog HD Mobile DVR

Description:

  • 4 channel*720P or 1080P
  • H.264 compression format
  • 128GB SD Card & 2.5“ SATA 2TB Hard disk
  • GPS positioning & route tracking
  • 4G / 3G remote control
  • built-in WIFI for optional
  • 6 alarm input, 2 alarm output
  • 2 way intercom
  • Remote oil & power cut-off
  • Mirror recording in SD card
  • Patent UPS continuously working to protect data upon sudden power-off
  • Customized GPS data format sending (optional)
  • Built-in Heater(optional)
  • Lockable, metal HDD handle, protect HDD efficiently
  • Watermark and Time / Date stamp in exported images

Product Parameters:

Video Technology H.264(Data encryption, need to use the playback software to play the videos)
Storage
interface		 Standard SATA HDD, SD Card and USB devices
Storage Capacity 2.5’’ SATA 2TB HDD & 128GB SD
Storage mode Boot record, cycle recording
Camera AHD standard camera
Video Standard PAL system or NTSC system (Please make sure the camera’s video standard compatible to the DVR)
Resolution 4ch AHD 720P recording, also support the playback function while recording.
Frame rate PAL(1~100FPS optional) and NTSC(1~120FPS optional)
Video quality Multi-grade adjustable
Output signal CVBS (4ch video + 4ch audio,but only support 1ch audio output at a same time)
Ethernet Port One 10M/100M Ethernet port (RJ45)
Alarm input 6ch independent alarm input port (isolating function)
Alarm output 2ch independent alarm output port
USB Standard 1 USB 2.0 port (support USB backup and system upgrade)
IR Receiver One IR receiver(beside the USB port)
Power Supply Car battery / Power adapter(For other applications)
Power input DC12V~DC36V(Standard power input:DC12V~DC24V, ultimate power input: DC6V~DC36V)
Power output DC12V/3A (Provide power for cameras, with built in re-settable fuses. )
Working temperature - 10℃~ + 50℃ (ultimate working temperature: - 20℃~ + 60℃)

Notes:

  1. Smartphone App, Client Management & Server software are free to provide for you.
  2. For server setup, you need to get a static IP address from your local network provider.
  3. And we accept you to use our Server, one device will be charged $35 each year.

Item Images:

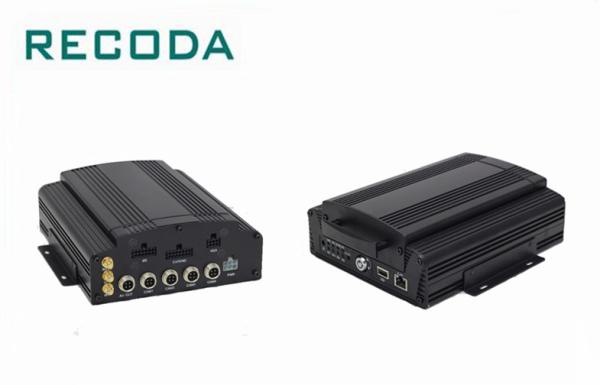

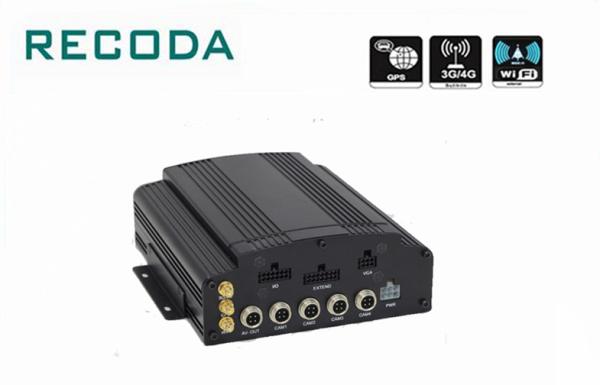

4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog

4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog

4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog

4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog

Applications:

4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog
