4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR
4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR
4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR
4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR
Specifications
Brand Name :
RECODA
Model Number :
M710
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
1 Unit
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal, D/A, D/P, L/C
Supply Ability :
2000 Units per month
Delivery Time :
5 ~ 8 working days
Packaging Details :
In Neutral Brown Box
Resolution: :
720P
Storage: :
2TB HDD & 128GB SD Card maximum
G-sensor :
Built in
3G :
WCDMA / EVDO
4G :
TDD-LTE / FDD-LTE
Alarm :
7CH Input, 2CH Output
GPS :
Optional
Power Voltage :
8-36V DC
Description

4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR

Main Features:

  1. 8V~36V Wide Range Power Input;
  2. Hybrid networking mixed with traditional and HD analog
  3. 4 Channel Full HD720P Realtime Video/ Audio Recording;
  4. Supports 2TB Hard Disk & 128GB SD Card at the same Time (maximum);
  5. Motion Detect/ G-Sensor Alarm Record;
  6. 6 I/O Alarm Input & 1 Alarm Output;
  7. RJ45 / RS232 / RS485 / USB Port;
  8. Max. 255 Minutes Power-off Delay after ACC-off;
  9. GPS Tracking;
  10. 3G/ 4G Remote View on PC or Smartphone;
  11. Wi-Fi Connectivity/ Wi-Fi Hotspot;
  12. Supports PTT talkback function.
  13. Automatic shutdown under low battery voltage

Specifications:

Power

Voltage Input

DC8-36V

Voltage Output

DC12V (+/-0.2V, max. 2.0A)

DC5V (+/-0.2V, max. 0.5A)

System

Language

Chinese/English

OSD

Graphical User interface OSD menu

Password

Users Password/ Administrator Password

Video

Video input

4~8CH AHD or Analog Video Inputs

Video output

1CH Video Inputs (1.0Vp-p/ 75 Ohms)

Preview

1CH/ 4 CH Preview.

Recording Ratio

PAL: 25 Frame/s; NTSC: 30 Frame/s

Image Compression

H.264 Main profile

Audio

Audio input

4-CH

Audio output

1-CH

Recording mode

Audio & Video sync.

Image processing

& Storage

Video Quality

720P/D1 adjustable for each channel;

Highest Video Quality: 4CH Full 720P

Bit Rate

720P: 2048Kbps~6144Kbps

D1: 512Kbps~1536Kbps

5 levels optional.

Storage

2TB Hard Disk & 128GB SD Card (maximum)

Alarm

Alarm input

7 alarm inputs

Alarm output

2 alarm output,

Communication Port

RJ45 Interface

Yes

USB 2.0 Port

Yes

RS232 Interface

3 RS232 interface

Wireless

3G/4G

WCDMA / HSDPA / HSUPA / LTE

Wi-Fi

Optional (Wi-Fi Client/ Wi-Fi Hotspot)

GPS

Built-in GPS

G-Sensor

Yes

Upgrade

Support HDD & SD card Firmware Upgrading

Operation Environment

Temperature

-25 degrees to +70 degrees

Humidity

10% to 95%

Pictures:

4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR

4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR

4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR

4CH 3G / 4G Live View Hard Disk Analog HD Mobile DVR with GPS WIFI AHD DVR

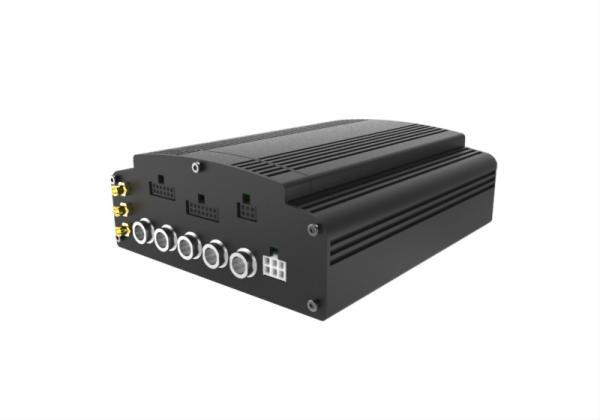

M710 is an advanced Vehicle-Mounted DVR based on AHD 720P technology. Built-in high performance video processor chipset and H.264 encoding and decoding protocols, M710 implements video recording, storage and replaying. Integrated with 3G/4G/WiFi module, implements vehicle remote monitoring, remote analysis and processing.
