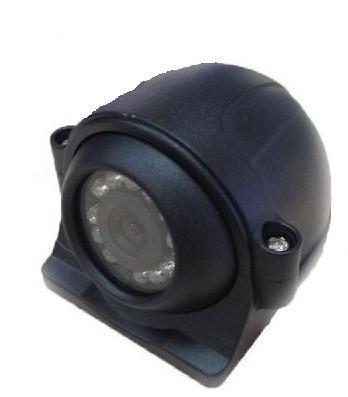

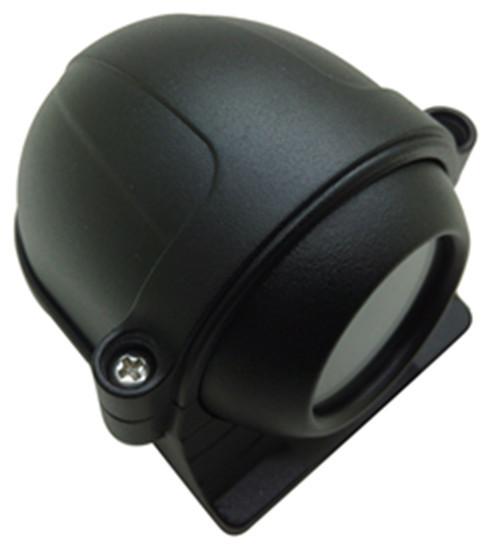

Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
Specifications
Brand Name :
RECODA
Model Number :
CM03 in 480tvl
Certification :
CE/ROHS/FCC/UL
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
D/A, D/P, Western Union, MoneyGram, cash
Supply Ability :
2000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Normal packageing, print customer logo in carton.
Image Device :
1/3 SONY CCD
Resolution :
420TVL/480TVL/540TVL/700TVL optional
TV System :
PAL/ NTSC
Lens :
2.8/3.6/6.0mm optional
Lens Angle :
: 120°
Infrared LED light :
: 9 PCS
IR Distance :
: 10 m
8. .Waterproof Rate :
: IP68
Description

1.Product Name:Waterproof Side view night vision IR Car Camera

2.Basic Info

Brand Name:

RECODA

Model Number:

CM03

Certification:

ROHS/FCC

Place of Origin:

China

3. Product Quick Details

Product Name

Waterproof Side view night vision IR Car Camera

Application

In vehicle

Sensor

CCD

Resolution

420tvl,480,600tvl,700tvl

IR distance:

10m

Feature

Waterproof

Type

Analog Camera

Lens

6.0/3.6/2.8mm optional

4.Business Term

Minimum Order Quantity:

1 pcs

Price:

negotiation

Payment Terms:

T/T , Paypal or western Union

Supply Ability:

3,000pcs per month

Delivery Time:

3~5 working days after received your payment

Packaging Details:

1 piece to a box, 56 PCS packed in a carton

Specifications:

Model

CM03

Pick up Device

1/4 SHARP CCD

TV System

NTSC / PAL

Picture Elements

512 x 582 pixels / 512 x 492 pixels

Horizontal Resolution

420 TVL / 480 TVL / 600 TVL / 700TVL optional

Sensitivity

0 Lux at F1.2 (Infrared LED On)

Scanning System

2: 1 Interlace

Synchronization

Internal

Infrared Spectrum

850nm

S/N Ratio

Better than 48 dB, (AGC Off)

Infrared LED

9 LEDs

Infrared LED Range

10m

Video Output

1 Vp-p, 75Ω composite, BNC x1

Audio Output

N/A

Mirror

Adjustable

Gamma Ratio

0.45

Lens Angle

120 degree

Lens

3.6mm Standard ( with 2.8 and 6.0mm optional )

Pan Adjusting

0-360°

Tilt Adjusting

0-40°

Out-casing Material

Aluminum Alloy / Metal optional

Power Supply

12V DC ± 10%, ø 2.1mm DC Jack

Power Consumption

Max. 180mA

Dimensions (LX W X H)

83 (L) ×60 (w) ×55 (H) mm

Net Weight

250g

Weatherproof/Water Proof

IP68

Operating Temperature

-20°C~70°C , RH95%MAX

Color

Black, White, Silver

Description:

Lens: 2.5mm

.Lens Angle: 120°

.Infrared LED light: 9 PCS

.IR Distance: 10 m

.Waterproof Rate:IP68

.Shell material: aluminum alloy

.Bracket material: nylon fabric

.Dustproof, waterproof, hydrochloric acid prevention, explosion prevention

.Current Consumption: Max. 180mA

.Power Supply: DC12V

.Operating Temperature: -20°C~70°C , RH95%MAX

.Storage Temperature: -40°C~80°C,RH95%MAX

Applications:

  1. Buses, Coach, Logistic Trucks, Tractors, Police Cars, Taxi
  2. Armored cars, Public security and law enforcement vehicles
  3. Ambulances, Traffic duty vehicles and other fields.

Competitive Advantage:

.Chip CMOS & Chip SONY optional

.Mic: collects the environmental sound around the camera

.Rear,Celling Mount ,left,Right view optional

Self heating: The cameras will entry the self-heating mode when the

environmental working temperature is lower than -5°C. And it wills automatic stop heating when the temperature reaches 30°C

Waterproof Side view night vision IR Car Camera (Metal Shell )

Black Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvlBlack Waterproof IP68 Side view vehicle mounted cameras in 480 tvl
