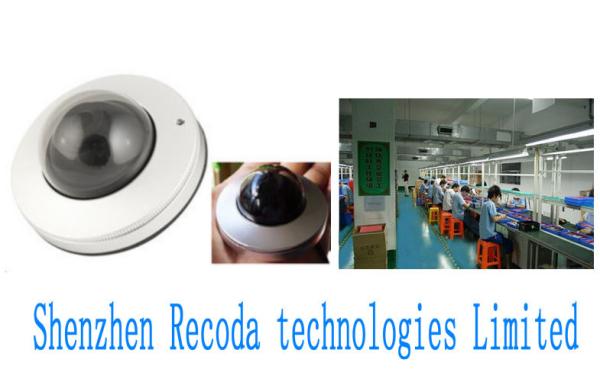

600TVL Vandalproof vehicle mounted cameras , Lens 2.2mm Optional
600TVL Vandalproof vehicle mounted cameras , Lens 2.2mm Optional
Specifications
Brand Name :
RECODA
Model Number :
C806 in 600tvl
Certification :
CE/ROHS/FCC/UL
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
D/A, D/P, Western Union, MoneyGram, cash
Supply Ability :
2000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Normal packageing, print customer logo in carton.
Pick up Device :
1/3” Color SONY CCD
TV System :
PAL/NTSC
Picture Elements :
PAL: 752Hx582V NTSC: 768Hx494V
Horizontal Resolution :
600TVL
Sensitivity :
1.3 Lux at F1.2
Scanning System :
2:1 Interlace
Description

Product Features

• Mini Metal Dome Camera
• IP67 Water-proof & Vandal-proof
• 1/3”Sony Color CCD
• Resolution: 420tvl
• Lens Optional: 2.2mm

Detailed Product Description

Model

C806

C806-S

Pick up Device

1/3” Color SONY CCD

1/3" CMOS 1089

TV System

PAL/NTSC

PAL/NTSC

Picture Elements

PAL: 752Hx582V
NTSC: 768Hx494V

PAL: 728Hx488V
NTSC: 762Hx504V

Horizontal Resolution

600TVL

600TVL

Sensitivity

1.3 Lux at F1.2

Scanning System

625TVL

2:1 Interlace

Synchronization

Internal

Infrared Spectrum

850nm

S/N Ratio

More than 50 dB, (AGC Off)

Auto Gain Control (AGC)

Auto

White Balance

Auto

Electronic Shutter

Auto

Back Light Compensation

Auto

Infrared LED

N/A

Infrared LED Range

N/A

Video Output

1 Vp-p, 75Ωcomposite, BNC x1

Audio Output

for options

Mirror

for options

Gamma Ratio

0.45

Lens

f2.2mm wide-angle lens

Exterior Focus Adjustment

N/A

Lens Mount

M12XP0.5mm Thread

Pan Adjusting

+/-180 degree

Tilt Adjusting

0-50 degree

Power Supply

12V DC ±10%

Power Consumption

75mA

55mA

Dimensions (L X W X H)

D64.7xH36.5(mm)

Net Weight

90g

Weatherproof/Water Proof

IP67

Operating Temperature

-10°C to +50°C
