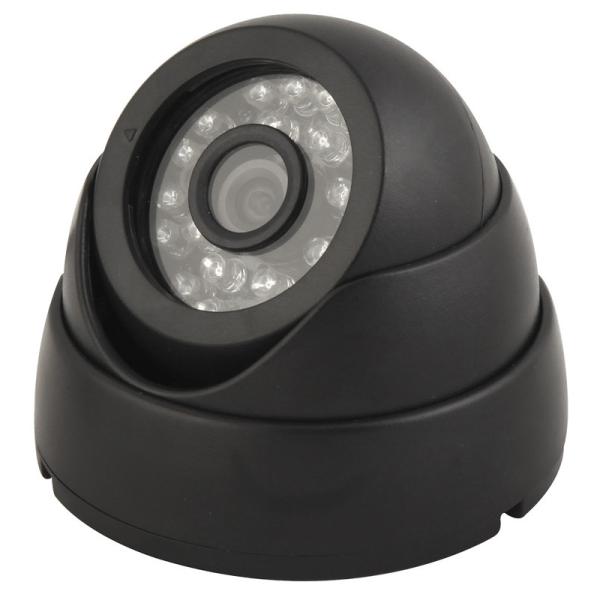

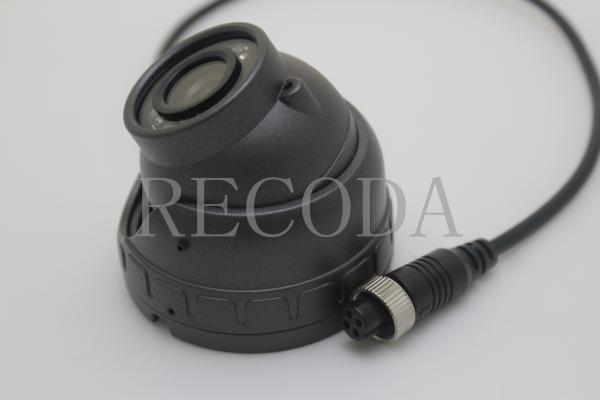

IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
IR Mini Dome Security Car 480tvl vehicle mounted cameras with audio
Specifications
Brand Name :
RECODA
Model Number :
C802MA in 480tvl
Certification :
CE/ROHS/FCC/UL
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
D/A, D/P, Western Union, MoneyGram, cash
Supply Ability :
2000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Normal packageing, print customer logo in carton.
1.Signal System :
PAL/NTSC
Image Sensor :
1/3" Sony Color CCD
Horizontal Resolution :
420TVL/480TVL/540TVL/700TVL optional
Min. Illumination :
0 LUX (IR On)
Effective Pixels PAL: 512(H)× 582(V :
NTSC: 512(H)× 492(V)
Electronic Shutter Speed :
1/50(1/60)~1/100, 000sec
White Balance :
Auto
Sync. System :
Internal Synchronization
Gamma Correction :
R=0.45
S/N Ratio :
≥ 48dB
BLC Auto :
: AGC Auto
LED wave length :
15 unit 850nm Infrared LED
Average Life :
: 20000hrs
Warranty life :
: 6000hrs
.IR Distance :
: 10 M
Broad Lens :
: 2.8mm/ 3.6mm/6.0mm optional
Video Output :
: 1 Vp-p, 75Ω (BNC), also with 4 pin connector optional
Power Requirement :
:DC 12± 0.5V 1000mA
Operation Temperature :
: -10- 50Celsius RH95%(MAX)
Description

C802MA IR Mini Dome Security Car Camera with audio in 480 tvl vehicle mounted camera

1/3" SONY Color CCD

420tvl/480tvl/540tvl/600tvl/700TVL

3.6mm,2.8 mm Lens optional

15PCS Φ5 IR LED

IR Lamps Irradiation Distance 10 M DC12V

Vehicle camera Series

IR Dome Vehicle Camera

Description

Model C802 480TVL

  1. Signal System PAL/NTSC

  1. Image Sensor: 1/3" Sony Color CCD

  1. Horizontal Resolution: 420 TVL/480TVL/540TVL/700TVL optional

  1. Min. Illumination: 0 LUX (IR On)

  1. Effective Pixels PAL: 512(H)× 582(V); NTSC: 512(H)× 492(V)

  1. Electronic Shutter Speed: 1/50(1/60)~1/100, 000sec

  1. White Balance Auto

  1. Sync. System : Internal Synchronization

  1. Gamma Correction: R=0.45

10:S/N Ratio: ≥ 48dB

  1. BLC Auto: AGC Auto

  1. LED wave length: 15 unit 850nm Infrared LED

  1. Average Life 20000hrs

  1. Warranty life: 6000hrs

  1. IR Distance: 10 M

16. Broad Lens:2.8mm/ 3.6mm/6.0mm optional

  1. Video Output: 1 Vp-p, 75Ω (BNC), also with 4 pin connector optional

  1. Power Requirement: DC 12± 0.5V 1000mA

19. Operation Temperature -10- 50Celsius RH95%(MAX)
