8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
Specifications
Brand Name :
RECODA
Model Number :
M728-AHD
Certification :
CE / FC / ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
2000pcs/month
Delivery Time :
3-5days after receiving your payment
Packaging Details :
one pcs per box, eight pcs per carton
OS :
Linux
DVR Video Compression :
H.264
DVR Resolution :
1080P/720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
Color :
Black
DVR Storage :
2TB+128GB
Voltage :
10-36V
Type :
1080P HDD DVR
Other functions :
3G 4G GPS WIFI G-sensor
Description

8 CHANNEL HDD ORIGINAL MANUFACTURER MOBILE VEHICLE DVR WITH FREE SOFTWARE

Main Features:

  1. H.264 Video Compression
  2. 8CH 1080P AHD Camera input
  3. hard disk + SD card Storage ( 2TB+128GB )
  4. Support GPS/ 3G / 4G live view, WIFI /G-sensor Optional
  5. Stability Aviation plug, easily connecting and high shock proof
  6. Be Customized according your request


Specifications:

Model M728AHD
System
OS Linux
Language Chinese/English/Customized
Video
Video Input 8CH 1080P AHD input, aviation connector, 1.0Vp-p, 75Ω
Video Output 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen
Video Compression H.264
Video Quality 1-4 levels, 1 is the highest level.
Video Standard PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
Audio
Audio Input 8CH ,Aviation Plug
Audio Output 1CH,Aviation Plug
Audio Compression G.726 compression, 8KB/s speed
Recording
Resolution

1080P/720P/D1/HD1/CIF, MAX:4 channels of 720P

and 4 channels of D1
Record Mode The default setting is auto recording after power on.Timed recording, Alarm trigger recording and manual recording are supported.
Playback
Search Mode Search By Record Time/Record Type etc
Playback Speed

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.
Network
Ethernet RJ-45 port
3G/4G/WiFi Optional
GPS Built-in high accurate GPS module(optional)
G-Sensor Support G-sensor
Auxiliary Interface
USB 1 Port , USB 2.0
RS485 1 Port, For PTZ control
RS232 2 Ports, For Temperature Sensor, Fuel Sensor ect
General
Voltage Input DC:+10V ~ +36V
Voltage Output +12V@2.5A,+5V@2.5A
Power Consumption Normal Working ＜5W
Power Management Wide Voltage. Support Timed/Delay off
Temperature -20℃ to +70℃
Humidity 20% to 80%
Size 150(W) x57(H) x168(D) mm
Net Weight 1.1kg

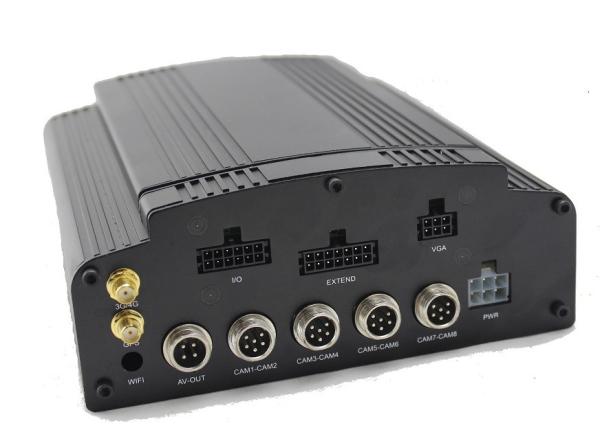

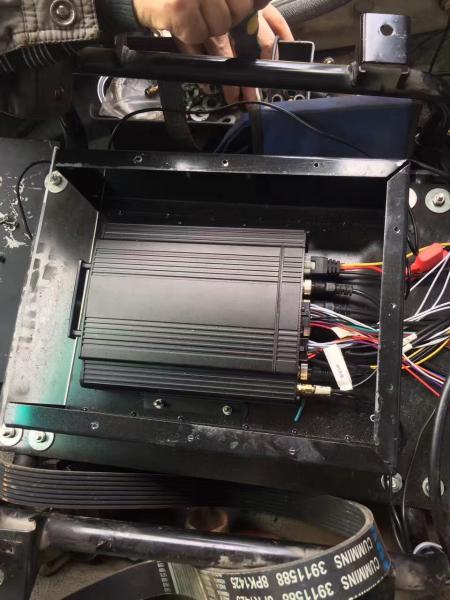

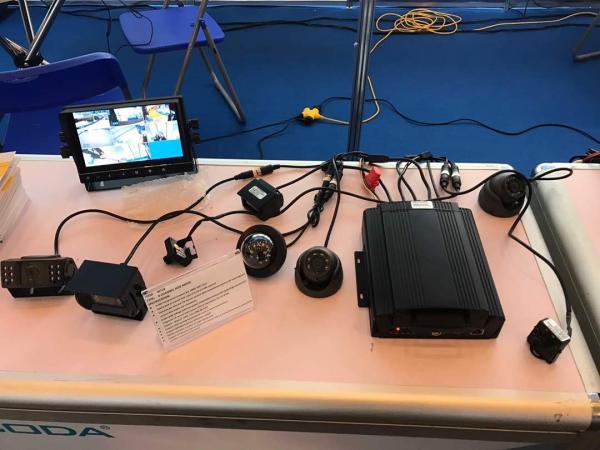

Product Pictures:
8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
8 Channel Hdd Car Mobile Dvr , Gps Mobile Digital Video Recorder With Free Software
