AHD Lightweight Hidden Cameras In Cars With CMOS Sensor , 960P Resolution
AHD Lightweight Hidden Cameras In Cars With CMOS Sensor , 960P Resolution
Specifications
Brand Name :
RECODA
Model Number :
RCDP3
Certification :
CE,FCC,ROSH
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T, Western Union
Supply Ability :
5000000 PCS / Year
Delivery Time :
5 working dayt
Type :
AHD
Resolution :
960P
Color :
Black
Color image :
Support
Model No. :
RCDP3-AHD 1.3MP
TV System :
PAL
Picture Elements :
1280(H)*960(V)
Pick up Device :
1/3” CMOS Sensor AR0130
Price :
negotiation
Description

RECODA RCDP3 Hidden Cameras In Cars DSP Color Dome AHD 1.3MP 960P,

12VDC

Main Feature:

  • AHD system is same as traditional analog system , using common 75-3 coaxial cable to carry out as far as 500 meters HD video without any video signal loss.
  • Analog High Definition is a high video definition standard, through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal.
  • Using the latest CMOS technology, the camera can produce high definition image with little distortion.

Specification:

Model RCDP3-AHD 1.3MP
Pick up Device 1/3” CMOS Sensor AR0130
TV System PAL
Picture Elements 1280(H)*960(V)
Effective pixels 1.3M pixels
Day-night mode External control (default) / Auto / color / black and white (OSD switching)
Infrared Spectrum N/A
S/N Ratio More Than 50dB, (AGC Off)
Auto Gain Control Auto
White Balance Auto
Electronic Shutter AUTO/ 1/50(1/60)-1/100,000sec
Back Light Compensation Auto
Infrared LED N/A
Infrared LED Range N/A
Video output 1 Vp-p, 75ΩComposite, 4 ways Din Jack
Audio Output N/A
Mirror Available
Lens Standard f3.6mm Fixed Megapixel Lens
Lens Mount M12XP0.5mm Thread
Pan Adjusting +/-180 Degree
Tilt Adjusting 0-90 Degree
Video footage to take up space 1min≈32MB
Power Supply 12V DC ±10%
Power Consumption 80mA
Dimensions(L x W x H) 44.4 (L) x 39(W) x 39(H) mm
Net Weight 130g
Weatherproof N/A
Operating Temperature -10°C to +50°C

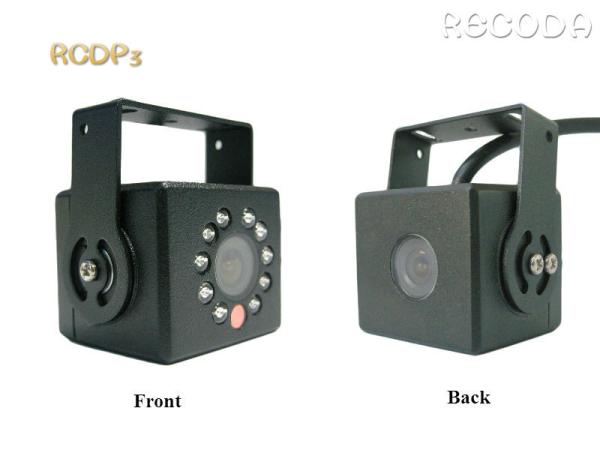

Image:

AHD Lightweight Hidden Cameras In Cars With CMOS Sensor , 960P Resolution

AHD Lightweight Hidden Cameras In Cars With CMOS Sensor , 960P Resolution
