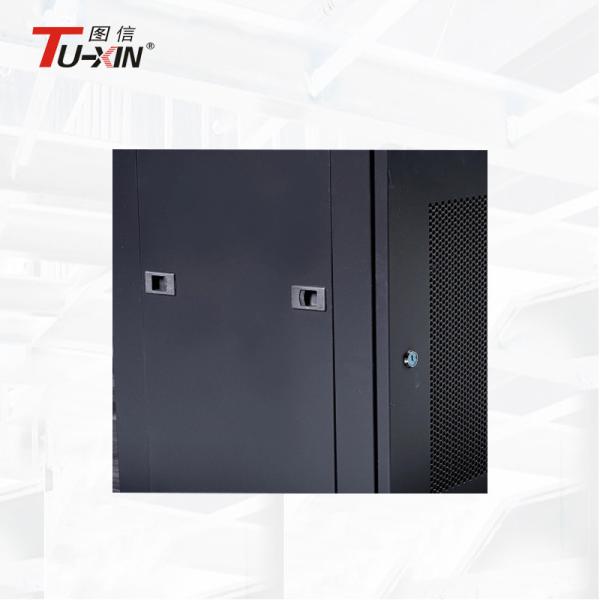

Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Electric Industry 4U - 24U Wall Mount Data Rack Network Server Cabinet 600mm * 450mm
Specifications
Brand Name :
TUXIN
Model Number :
TX-WF*6412
Certification :
ISO 9001:2008/CE/ROHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
10PCS
Price :
Negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
15-20 work days
Packaging Details :
Assembied packing
Usage :
Electric Industry
Height :
4U - 24U
Thickness :
Mounting Angle : 1.5mm
Type :
Wall mount data rack
Feature :
Wall Mounted Cabinet Rack
Status :
Stock
Front door :
Toughened Glass Front Door, Mesh door
Loading capacity :
60kg (on the adjustable feet)
Description

network server cabinet 19 Inch 600mm * 450 * 12u wall mount data rack with casters

Specifications:

1.Capacity:12U

2.Width*Depth:600*450mm

3.Certificate:ROHS CE ISO9001:2008

4. 4U, 6U, 9U, 12U, 15U, 18Uare all available

Features:

  1. Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard;

compatible with 19’’ international standard, metric system and EISI standard.

  1. Advanced technology, precise size.
  2. Reliable structure, static loading capacity:60KG.
  3. Quick and easy wall mounted, 19’’ standard installation inside.
  4. Can be flated pack, save transportation inside.
  5. 120mm size fan could be installed at top of cabinet.
  6. Cable entry from top and bottom.
  7. IP degree:IP20.

Surface finish:

Degreasing, pickling, phosphating, powder coating.

Material and Thickness:

Mounting profile:1.5mm

Others:1.2mm

Color:

RAL9004(black)

RAL7044(gray)

Brand: TUXIN Column spacing: 465mm (19 inch)
No: TX-WF-6412 Material: SPCC cold rolled steel
Size: 600mm*450mm*12U Function: Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc.
IOS test: Pass ISO9001:2008 Qualtiy System Thickness: Mounting Profile: 1.5mm,others: 1.2/1.0mm
Surface treatment: Degreasing,pickling,phosphating,power coating,etc. Configuration: Cage nuts and M6 screws: 10 sets.
Standard: Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491；PARTI,DIN41494；PART7,GB/T3047.2-92 standard; compatible with ETSI standard. Device Installation: It is recommended to install network equipment/server device within 350 mm depth.

Welded frame, stable structure with precise craftsmanship;

Single section, compatiblewith 19"standard equipment;

Tempered glass front door with over 180 turning degree;

Removable side panel, easy to install and maintain (lock optional);

Cable entry on the top cover and bottom panel with knock-out plate;

L-shaped mounting profile, easy to adjustable on the mounting rail;

Fan cutout on the top cover ,easy to install fan;

Swing back with over 90 turning degree;

Various accessories for optional;

Order Codes Capacity W*D*H(mm)
TX-WF-6404 4 600*450*220
TX-WF-6606 6 600*600*358
TX-WF-6409 9 600*450*492
TX-WF-6612 12 600*600*625
TX-WF-6415 15 600*450*730
TX-WF-6418 18 600*450*820
TX-WF-6422 22 600*450*960
TX-WF-6427 27 600*450*1280
