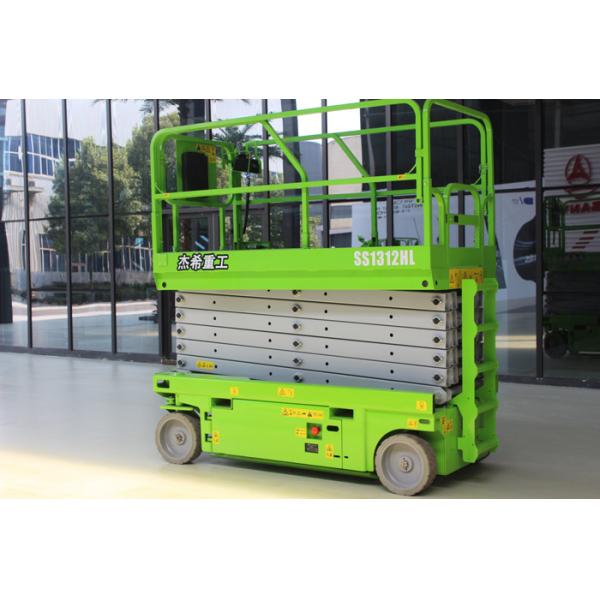

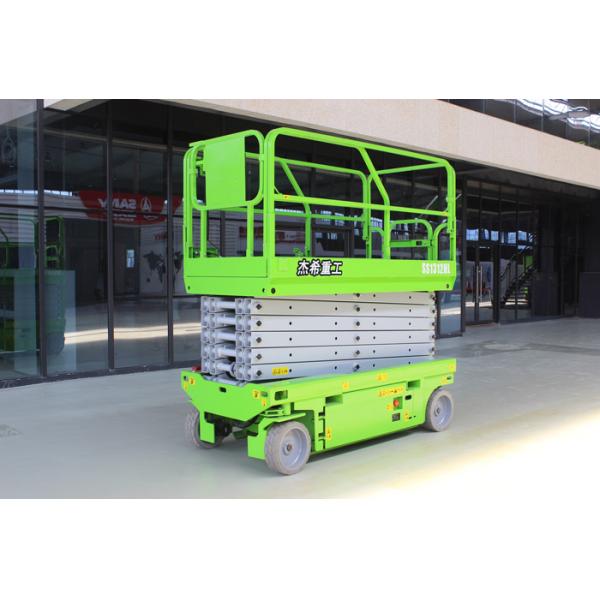

EU standard 13m Electric scissor Lift with 320kg load capacity for maintenance
EU standard 13m Electric scissor Lift with 320kg load capacity for maintenance
EU standard 13m Electric scissor Lift with 320kg load capacity for maintenance
EU standard 13m Electric scissor Lift with 320kg load capacity for maintenance
EU standard 13m Electric scissor Lift with 320kg load capacity for maintenance
EU standard 13m Electric scissor Lift with 320kg load capacity for maintenance
Specifications
Brand Name :
Jesh
Model Number :
SS1312HL
Certification :
CE,ISO,IPAF
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1500pcs per month
Delivery Time :
15 days
Packaging Details :
standard factory package
Lift drive / actuation :
electric ,hydraulic
Platform extendable :
0.9m
platform width :
1.15m
Max.drive speed :
3.5km/h
Max.Working height :
14.8m
Max.Platform height :
12.8m
Platform capacity :
320kg
capacity on extension :
120kg
battery :
24v/225ah
Engine :
optional for your choose : perkins, Kohler,Deutz,Commins,Yanmar
OEM,ODM :
available
Description

Electric scissor lift with 13m platform EWP factory CE certification

Product Specification:
Mainly used to installing, repairing and cleaning high aerial
equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving
working efficiency and making aerial working more convenient.

Technical Parameters

Model SS1312HL
Dimentions Length 2.49m × Width 1.15m × Height 2.61m ( Height up to 12.8m)
Working Height 14.8m
Platform Height 12.8m
Platform Length 2.36m
Platform Length-Extended 3.26m
Platform Extendable 0.9m
Platform Width 1.15m
Height -Unfolded 2.35m
Height-rails folded 2.08m
Wheelbase 1.93m
Min. Ground Clearance-stowed 10cm
Min. Ground Clearance-Raised 2cm
Productivity
Platform capacity 320kg
Extension platform capacity 120kg
Drive Speed 3.5km/h
Gradeability 25%
Raise/Lower Speed 59/45sec
Turning Radius(Inside/outside) 0/2.17m
Tire 40.5x12.7cm
Power Electric Hydraulic
Engine Optional(Perkins,Kohler,Deutz,Commins,Yanmar)
Hydraulic Oil Tank Capacity 25L
Machine Total Weight 3061kg
Battery 24V/260Ah
