Product Description

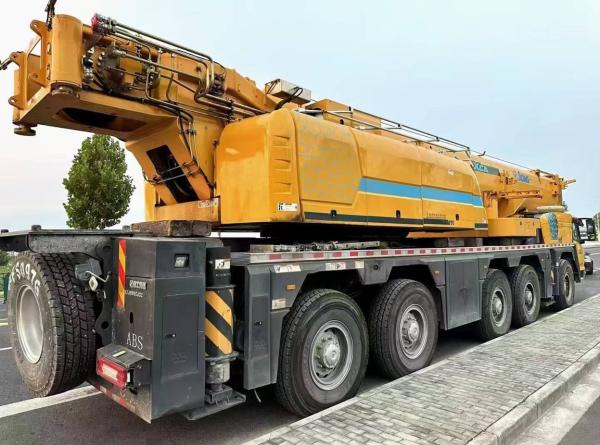

This high-performance 130-ton capacity crane features an 85-meter main boom with 4-section jib extension and 63-ton counterweight configuration, delivering exceptional reach and stability for demanding lifting operations. The model maintains all standard XCA130L7 specifications including its 356kW MC13 Euro V/VI engine, 5-axle all-terrain chassis with six steering modes, and intelligent 10.4" touchscreen control system, while this particular variant's extended 85m main boom and optimized counterweight setup enhance its capability for specialized heavy-lift applications.

​​XCMG XCA130L7 All-Terrain Crane (2023 Model) Comprehensive Technical Specifications​​

As XCMG Group's flagship 130-ton all-terrain crane, the XCA130L7 from the G1 series delivers exceptional lifting performance and mobility for complex engineering applications. The crane features a 7-section 78-meter U-shaped main boom extendable to 104.6 meters with auxiliary boom, delivering 5,145 kN·m maximum lifting moment. Powered by a single MC13.48-50 (Euro V) or MC13.48-60 (Euro VI) engine producing 356kW at 1,900rpm, it combines power with maintenance-friendly design.

The advanced hydraulic system optimizes energy efficiency while the 5-axle chassis offers unparalleled flexibility with six steering modes (including crab-steering) and dual-mode part-time drive (3-wheel/4-wheel selectable). Operational intelligence is enhanced through a 10.4-inch touchscreen interface supporting remote control and automated diagnostics.

Built with high-strength steel for structural integrity, the crane provides a 15,825×3,000×3,995/4,045mm (L×W×H) footprint with 54,795kg transport weight. Performance metrics include ≥80km/h travel speed, ≤18.5m turning radius, ≥60% gradeability, 19/20° approach and 16/17° departure angles. Lifting operations achieve ≥1.5r/min slewing speed with ≤60s boom raising and ≤750s full extension times.

The suspended cab features shock absorption, heated seats and rearview cameras for operator comfort. Ideal for infrastructure projects, wind turbine installations and bridge construction, the XCA130L7 represents the pinnacle of all-terrain crane technology with its combination of power, precision and operational intelligence.
