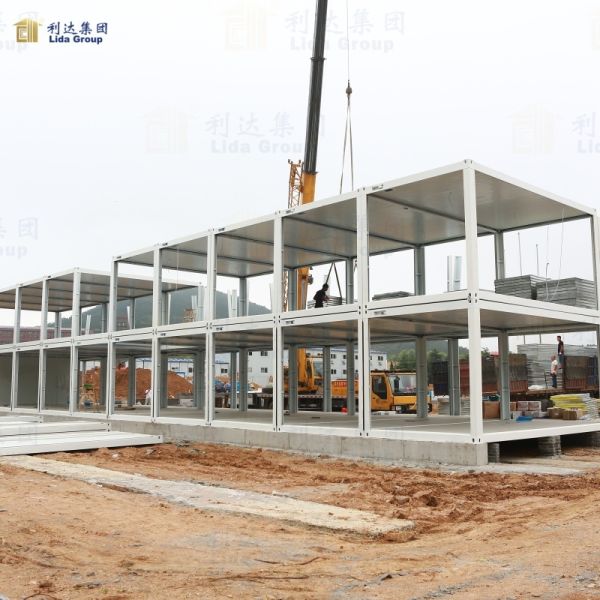

Detachable Flat Pack Multi Story Container Office Building Bolt Assembly Light Steel Frame 3 Floor Prefab Complex
Detachable Flat Pack Multi Story Container Office Building Bolt Assembly Light Steel Frame 3 Floor Prefab Complex
Detachable Flat Pack Multi Story Container Office Building Bolt Assembly Light Steel Frame 3 Floor Prefab Complex
Detachable Flat Pack Multi Story Container Office Building Bolt Assembly Light Steel Frame 3 Floor Prefab Complex
Specifications
Staircases :
2x with Electrical Riser
Brand Name :
ECONEL
Payment Terms :
T/T, L/C at sight
Structure Type :
Multi-Story Detachable KD
Fire Rating :
1-Hour Assembly
Supply Ability :
50 Sets per Month
Facade :
Aluminum Curtain Wall
Place of Origin :
Shandong, China
Packaging Details :
Per floor flat pack in 40HQ container, 3 containers per complete building
Model Number :
FP-MO72B
Price :
USD 28,000-45,000 / Set
MOQ :
1 Set
Floor Area :
72m² per floor, 216m² total
Certification :
CE, ISO 9001:2015, SGS
Assembly :
5 days / 6 workers
Delivery Time :
20-35 working days after deposit
Floors :
3 (certified)
Floor System :
Steel Deck + Concrete Screed
Description

Multi-Story Detachable Container Office Complex

This prefabricated container house combines industrial-grade durability with efficient modular design, delivering cost-effective building solutions for diverse project requirements worldwide.

Key Features

  • Multi-story design certified for 3-floor vertical stacking with reinforced corner column connection plates (8mm steel)
  • Bolt assembly system connects floors vertically and units horizontally, creating open-plan office layouts up to 300m² per floor
  • Central stairwell module with integrated electrical riser and data cable shaft connecting all three floors
  • Composite floor deck system (1.2mm steel deck + 50mm concrete screed) for sound isolation between floors
  • Curtain wall facade system with thermal break aluminum framing and tinted double-glazed units for commercial appearance
  • HVAC ready with pre-installed duct risers, condenser platforms per floor, and ceiling cassette mounting frames
  • Fire escape compliant with dual staircases, illuminated exit signage, and 1-hour fire-rated wall assemblies between units

Technical Specifications

Building Footprint12000x6000mm (72m² per floor)
Total Floor Area216m² (3 floors)
StructureLight Steel Frame with 8mm Corner Plates
Floor Deck1.2mm Steel + 50mm Concrete Screed
FacadeThermal Break Aluminum Curtain Wall
Wall Panel100mm Rock Wool Sandwich (Fire Rated)
Staircase2x Central Steel Stairwells
Fire Rating1-hour between Units
Assembly Time5 days / 6 workers
Loading per 40HQ1 floor per 40HQ (3 containers for complete)

Applications

  • Corporate project site headquarters
  • Temporary bank branches and financial service centers
  • Government administration buildings in remote areas
  • Mining company operations centers
  • Construction consortium joint project offices

Factory prefabricated with strict quality control. CE, ISO 9001:2015, and SGS certified. Contact us for custom design and bulk order quotation.
