YHZS75 Modular Concrete Mixing Plant 127kw Compact Concrete Batching Plant
YHZS75 Modular Concrete Mixing Plant 127kw Compact Concrete Batching Plant
Specifications
Brand Name :
TORUI
Model Number :
YHZS75
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
50 set/month
Delivery Time :
20-25 Work Days
Packaging Details :
Custom required
Model :
YHZS75
Theoretical productivity :
75m3/h
Total Power :
127kw
Discharge height :
4.2m
Trailing speed :
40km/h
Description

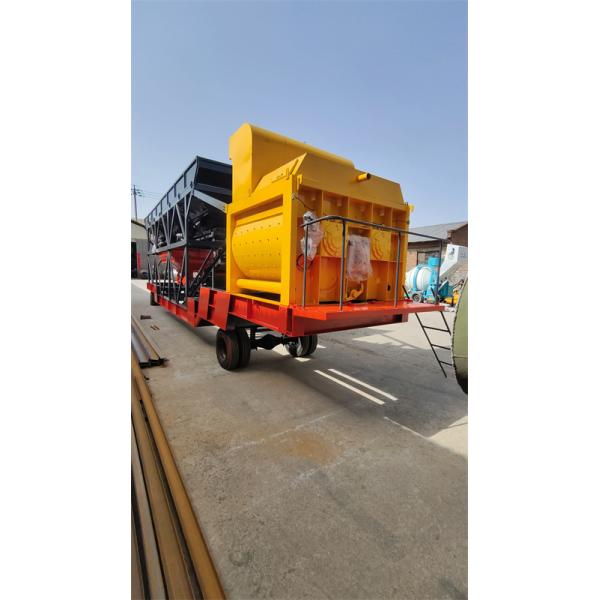

YHZS75 Forced mobile two-silo rapid mixing plant

This equipment integrates all functions of a stationary concrete mixing plant into a trailer unit, offering advantages such as easy mobility, quick installation, and simple storage.

  1. Mobility and Transportability:

    • The mobile mixing plant can be quickly dismantled and moved to another location without the need to dismantle control cables, walking platforms, or certain structural components.
    • It is equipped with tires, towing mechanisms, travel lights, and a braking system, allowing it to be towed at speeds up to 50 km/h.
    • During installation, a level hardened ground is sufficient, and dismantling typically requires a 30-tonne crane for cooperation.

  2. Functional Equivalence to Stationary Plants:

    • The mobile plant operates identically to standard fixed concrete mixing plants (such as HZS types) in terms of performance, operation mode, and maintenance principles.
    • It offers the same quality of concrete production and automation features as stationary plants.

  3. Compact Transport and Storage:

    • All transport unit external dimensions are designed to fit within standard container size requirements.
    • Typically, the entire station can be transported using three 40-foot containers, making it easier for logistics and shipping.

Overall, the YHZS75 Mobile Concrete Mixing Plant combines the production capabilities of a stationary plant with the flexibility and mobility required for projects like railways, bridges, and other infrastructure developments. Its quick setup, easy dismantling, and compact storage make it particularly suitable for temporary construction sites and projects requiring frequent relocation.


Model Theoretical productivity(m3/h) Total Power(kw) Discharge height(m) Trailing speed(km/h)
YHZS100 100 141 4.2 40
YHZS75 75 127 4.2 40
YHZS50 50 88 4.2 40
YHZS35 35 75 4.2 40
YHZS7525 25 46 4.2 40
