High Performance Mobile Cement Silo Low Level Cement Silos capacity 22 m³
High Performance Mobile Cement Silo Low Level Cement Silos capacity 22 m³
Specifications
Brand Name :
ENCKE
Model Number :
22 m³
Certification :
CE
Place of Origin :
Mainland
MOQ :
1 set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram,
Delivery Time :
10-15work days
Packaging Details :
Stand Container
Volume :
According to customer requirements
Moblie System :
With axles and tires
Discharge Type :
Screw
Feed Type :
Pneumatic conveying
Safety Valve :
WAM
Description

High Performance Mobile Cement Silo Low Level Cement Silos 800 C F/22m³

General technical information:

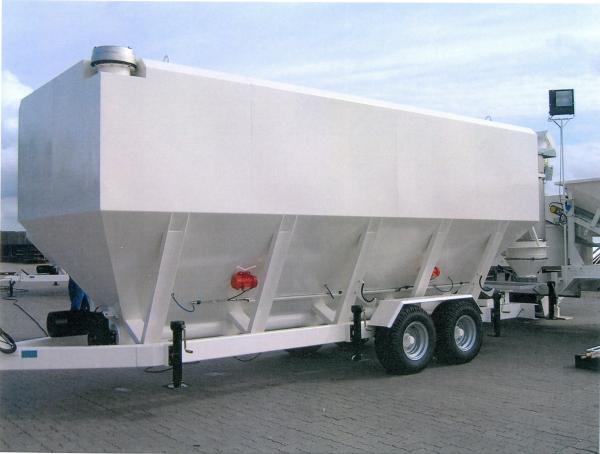

The cement silo is designed in steel frame with axles and tires that can be used alone or in conjunction with a mixing station.
The pneumatic conveying is used to feed into the warehouse .And the silo is equipped with a pressure safety valve and a pulse dust collector.
The land transportation of silo can be carried by container transporting vehicles.

The silo can be customized !

Technical features:

Portable cement silo

(theoretic volume):

22m³*1.2t/m³=24t

22m³*1.4t/m³=30t

 Remarks :It is calculated by different density .
Total electric power 7-15KW. 400V/60HZ

Automatic and manual

control system

 Main parts is Siemens
Discharge Screw Ø 219 mm
Level indicator
Breaking the arch Air Jet/Vibrator
Dust collector Air -jet type
Safety valve WAM
Self-supporting steel frame
OPTIONAL
The sloping conveyors Ø 219 mm
Air compressor 4KW, 300L/min,

Details show:

High Performance Mobile Cement Silo Low Level Cement Silos capacity 22 m³
